SMC Networks ITV0000 Series Manual page 4

Series
For single unit and single unit for manifold
ITV00 1 0
Pressure range
0.1 MPa
1
Power supply voltage
0.5 MPa
3
0.9 MPa
5
Built-in One-touch fittings type
For single unit
Symbol
Metric size
Nil
(Light gray)
Inch size
U
(Orange)
For manifold
Symbol
Metric size
Nil
(Light gray)
Inch size
U
(Orange)
Manifold
IITV00 02
Stations
02 2 stations
03 3 stations
10 10 stations
One-touch fitting size for supply/
exhaust parts (End plate)
Nil ø6 (Light gray)
ø1/4" (Orange)
U
Note) A DIN rail with the length specified by the number of stations
is attached to the manifold. For dimensions of the DIN rail,
refer to the external dimensions.
1

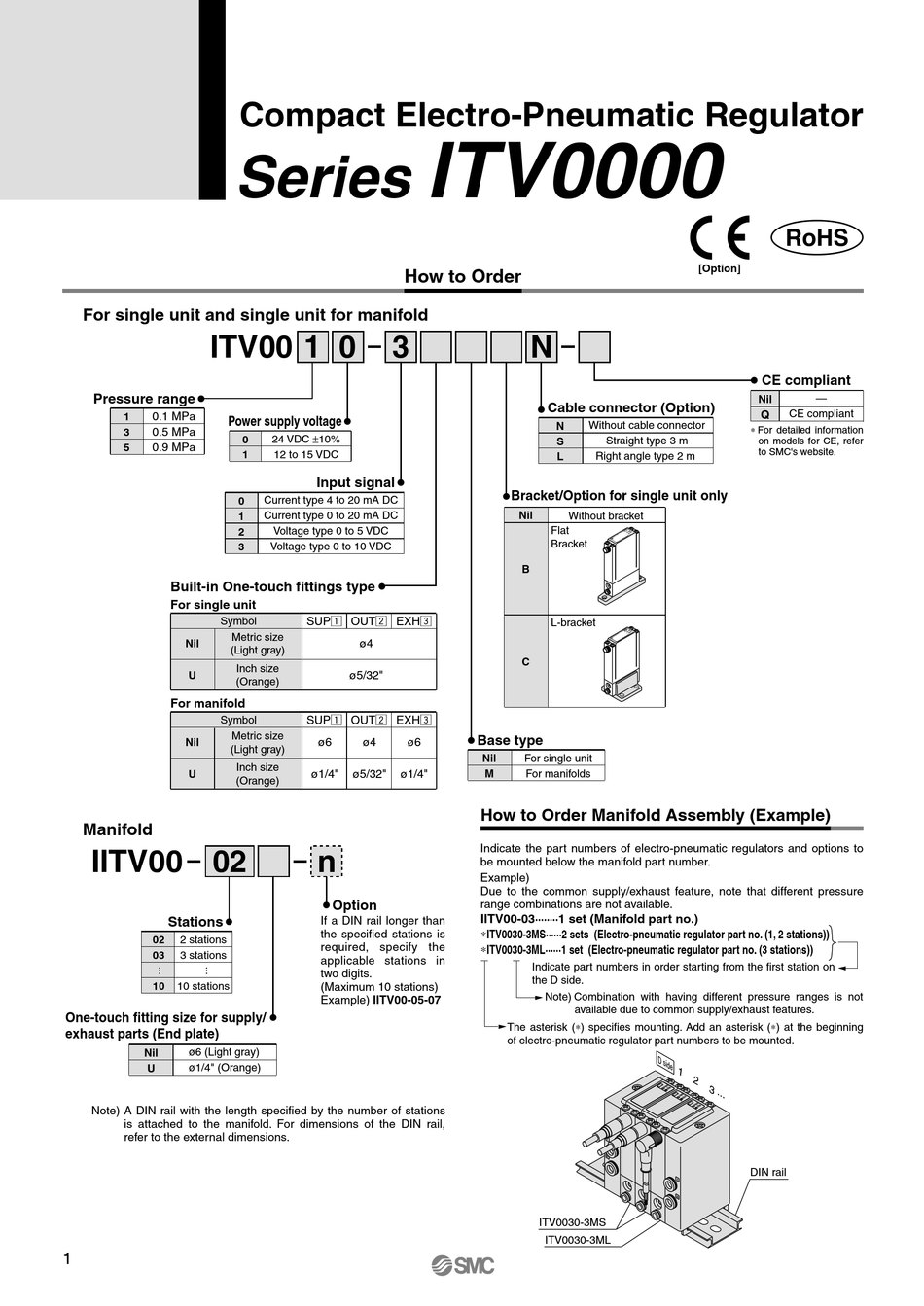

Compact Electro-Pneumatic Regulator
How to Order
3
0 24 VDC ±10%
1 12 to 15 VDC
Input signal
Current type 4 to 20 mA DC
0
Current type 0 to 20 mA DC
1
Voltage type 0 to 5 VDC
2
Voltage type 0 to 10 VDC
3
SUPz OUTx EXHc
ø4
ø5/32"
SUPz OUTx EXHc
ø6 ø4 ø6
ø1/4" ø5/32" ø1/4"
n
Option
If a DIN rail longer than
the specified stations is
required, specify the
applicable stations in
two digits.
(Maximum 10 stations)
Example) IITV00-05-07
ITV0000
N
Cable connector (Option)
Without cable connector
N
S
Right angle type 2 m
L
Bracket/Option for single unit only
Nil
Without bracket
Flat
Bracket
B
L-bracket
C
Base type
Nil For single unit
M For manifolds
How to Order Manifold Assembly (Example)
Indicate the part numbers of electro-pneumatic regulators and options to
be mounted below the manifold part number.
Example)
Due to the common supply/exhaust feature, note that different pressure
range combinations are not available.
IITV00-03········1 set (Manifold part no.)
∗ITV0030-3MS······2 sets (Electro-pneumatic regulator part no. (1, 2 stations))
∗ITV0030-3ML······1 set (Electro-pneumatic regulator part no. (3 stations))
Indicate part numbers in order starting from the first station on
the D side.
Note) Combination with having different pressure ranges is not
available due to common supply/exhaust features.
The asterisk (∗) specifies mounting. Add an asterisk (∗) at the beginning
of electro-pneumatic regulator part numbers to be mounted.
ITV0030-3MS
ITV0030-3ML
[Option]
CE compliant
Nil
Q
∗ For detailed information
Straight type 3 m on models for CE, refer
to SMC's website.
DIN rail
RoHS
—
CE compliant
