Electro-Pneumatic Regulator/Electronic Vacuum Regulator

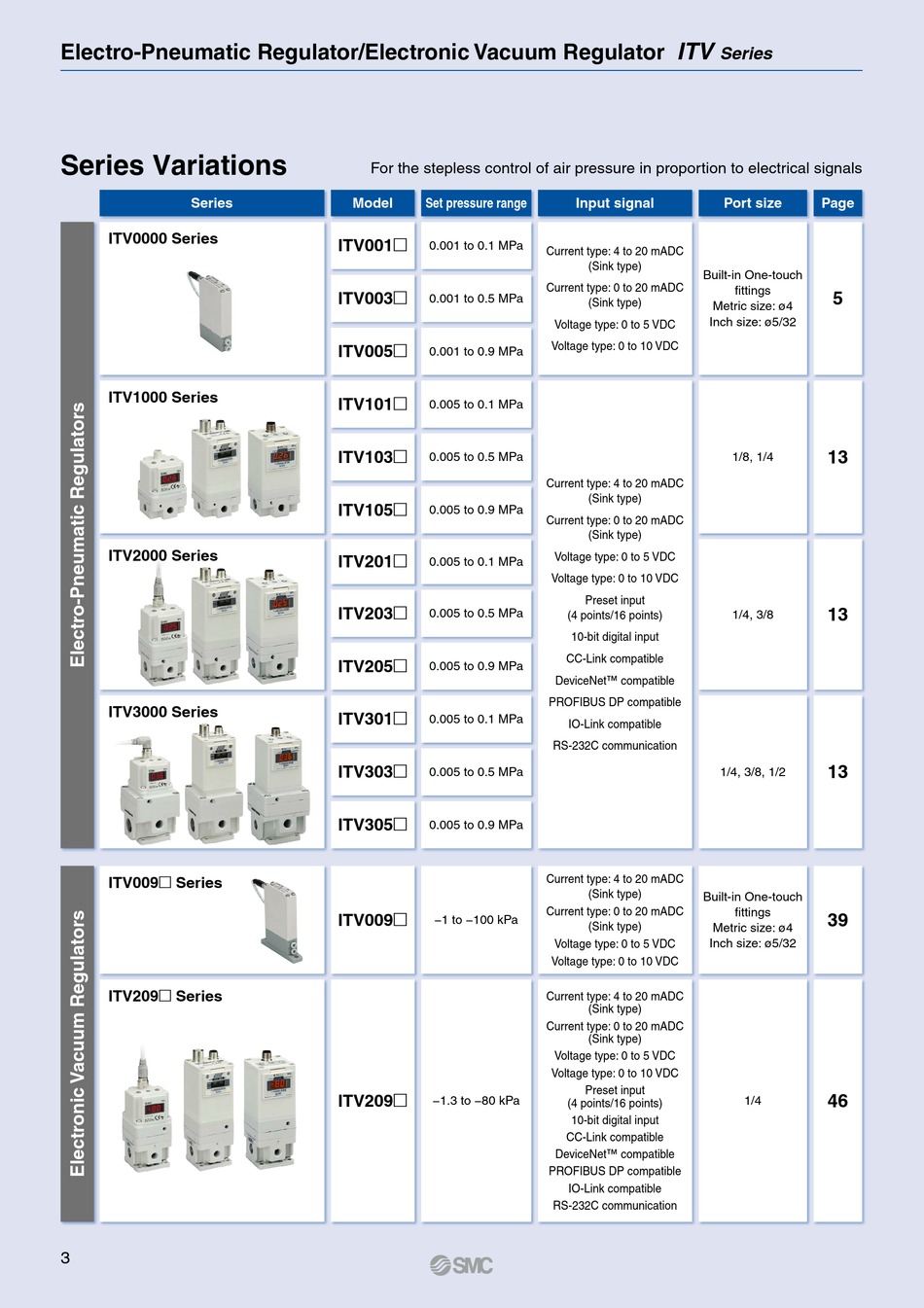

Series Variations
Series
ITV0000 Series
ITV1000 Series
ITV2000 Series
ITV3000 Series
ITV009m Series
ITV209m Series
3
For the stepless control of air pressure in proportion to electrical signals
Model Set pressure range
ITV001m
0.001 to 0.1 MPa
ITV003m
0.001 to 0.5 MPa
ITV005m
0.001 to 0.9 MPa
ITV101m
0.005 to 0.1 MPa
ITV103m
0.005 to 0.5 MPa
ITV105m
0.005 to 0.9 MPa
ITV201m
0.005 to 0.1 MPa
ITV203m
0.005 to 0.5 MPa
ITV205m
0.005 to 0.9 MPa
ITV301m
0.005 to 0.1 MPa
ITV303m
0.005 to 0.5 MPa
ITV305m
0.005 to 0.9 MPa
ITV009m
−1 to −100 kPa
ITV209m
−1.3 to −80 kPa
ITV
Series
Input signal
Current type: 4 to 20 mADC
(Sink type)
Built-in One-touch
Current type: 0 to 20 mADC
(Sink type)
Metric size: ø4
Inch size: ø5/32
Voltage type: 0 to 5 VDC
Voltage type: 0 to 10 VDC
Current type: 4 to 20 mADC
(Sink type)
Current type: 0 to 20 mADC
(Sink type)
Voltage type: 0 to 5 VDC
Voltage type: 0 to 10 VDC
Preset input
(4 points/16 points)
10-bit digital input
CC-Link compatible
DeviceNet™ compatible
PROFIBUS DP compatible
IO-Link compatible
RS-232C communication
1/4, 3/8, 1/2
Current type: 4 to 20 mADC
(Sink type)
Built-in One-touch
Current type: 0 to 20 mADC
(Sink type)
Metric size: ø4
Voltage type: 0 to 5 VDC Inch size: ø5/32
Voltage type: 0 to 10 VDC
Current type: 4 to 20 mADC
(Sink type)
Current type: 0 to 20 mADC
(Sink type)
Voltage type: 0 to 5 VDC
Voltage type: 0 to 10 VDC
Preset input
(4 points/16 points)
10-bit digital input
CC-Link compatible
DeviceNet™ compatible
PROFIBUS DP compatible
IO-Link compatible
RS-232C communication
Port size Page
fittings
5
13
1/8, 1/4
13
1/4, 3/8
13
fittings
39
46
1/4
