SMC Networks ITV0000 Series Manual page 12

ITV0000
Series

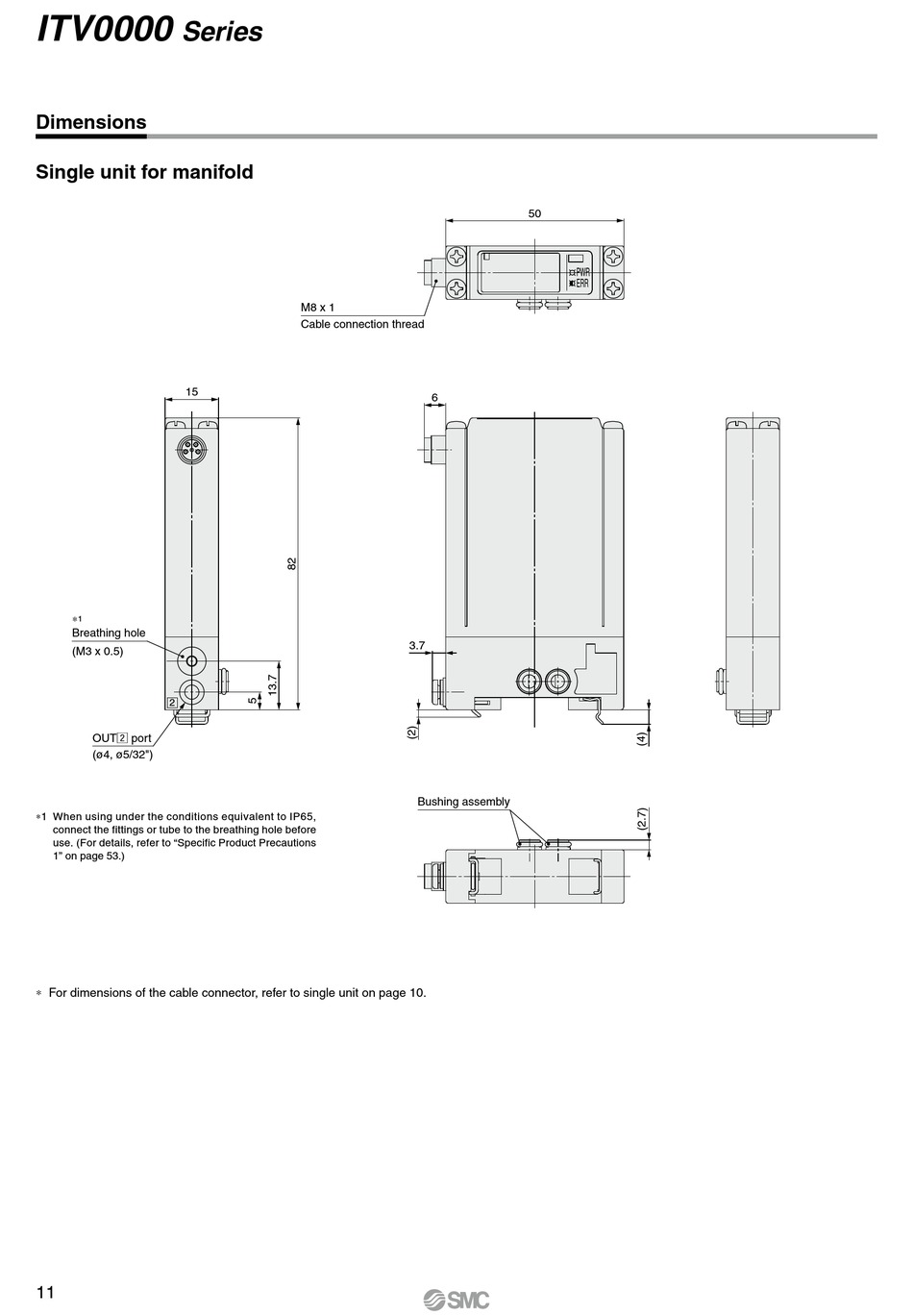

Dimensions
Single unit for manifold
15
∗
1
Breathing hole
(M3 x 0.5)
2
OUTx port
(ø4, ø5/32")
*1 When using under the conditions equivalent to IP65,
connect the fittings or tube to the breathing hole before
use. (For details, refer to "Specific Product Precautions
1" on page 53.)
* For dimensions of the cable connector, refer to single unit on page 10.
11
M8 x 1
Cable connection thread
6
3.7
Bushing assembly
50
PWR
ERR
