SMC Networks ITV0000 Series Manual page 2

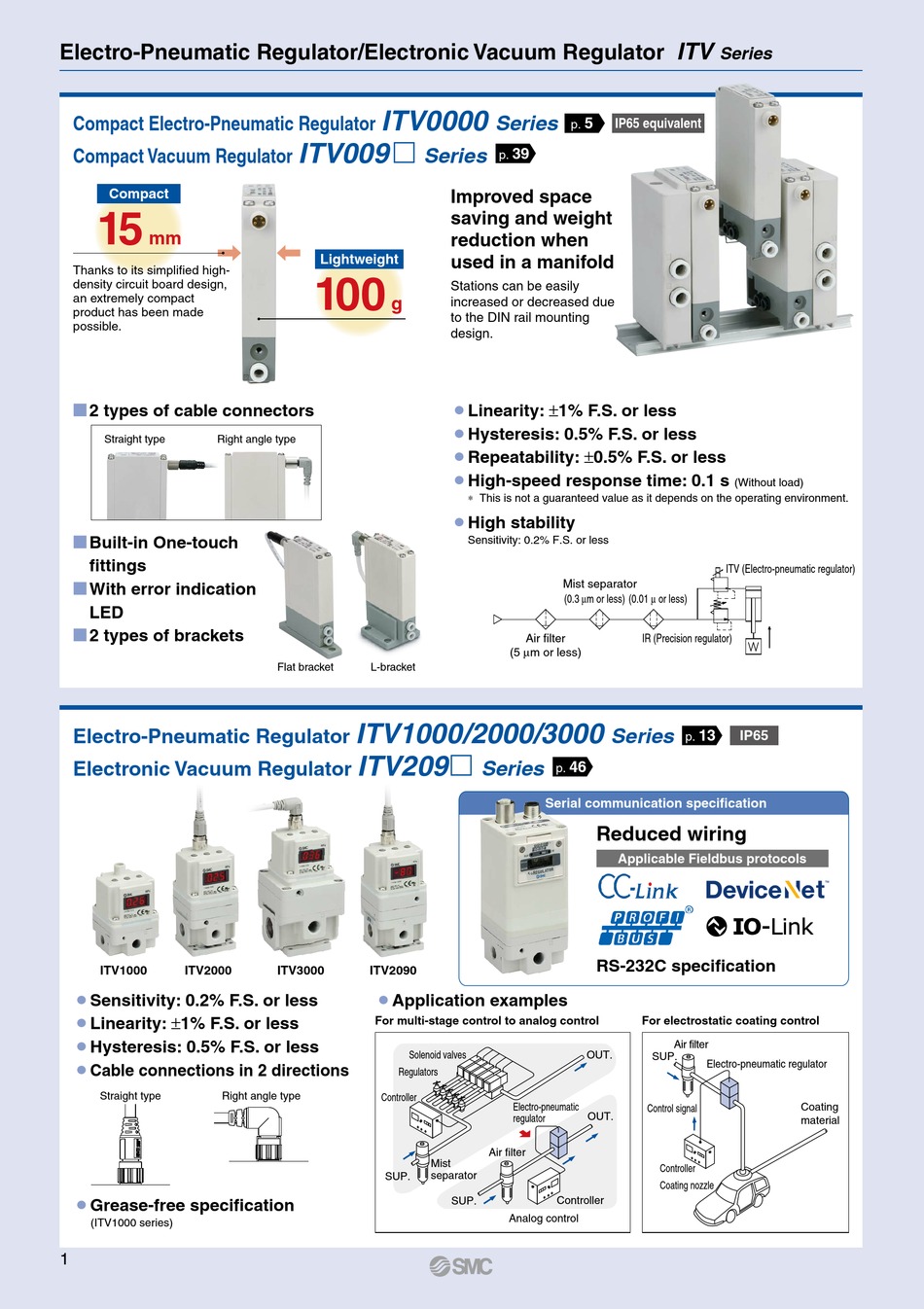

Electro-Pneumatic Regulator/Electronic Vacuum Regulator
Compact Electro-Pneumatic Regulator
Compact Vacuum Regulator
Compact
15
mm
Thanks to its simplified high-
density circuit board design,
an extremely compact
product has been made
possible.
M
2 types of cable connectors
Straight type Right angle type
M  B uilt-in One-touch
fittings
M  W ith error indication
LED
M 2 types of brackets
Electro-Pneumatic Regulator
Electronic Vacuum Regulator
ITV1000 ITV2000
¡Sensitivity: 0.2% F.S. or less
¡Linearity: ±1% F.S. or less
¡Hysteresis: 0.5% F.S. or less
¡Cable connections in 2 directions
Straight type Right angle type
¡Grease-free specification
(ITV1000 series)
1
ITV0000
ITV009 m
Series
Improved space
saving and weight
reduction when
Lightweight used in a manifold
100
Stations can be easily
g
increased or decreased due
to the DIN rail mounting
design.
¡Linearity: ±1% F.S. or less
¡Hysteresis: 0.5% F.S. or less
¡Repeatability: ±0.5% F.S. or less
¡High-speed response time: 0.1 s
¡High stability
Flat bracket L-bracket
ITV1000/2000/3000
ITV209m
ITV3000 ITV2090
¡Application examples
For multi-stage control to analog control
Solenoid valves
Regulators
Controller
Mist
separator
SUP.
SUP.
Series
5
IP65 equivalent
p.
39
p.
* This is not a guaranteed value as it depends on the operating environment.
Sensitivity: 0.2% F.S. or less
Mist separator
(0.3 µm or less) (0.01 µ or less)
Air filter IR (Precision regulator)
(5 µm or less)
Series
Series
46
p.
Serial communication specification
Reduced wiring
Applicable Fieldbus protocols
RS-232C specification
For electrostatic coating control
OUT.
Electro-pneumatic
OUT.
regulator
Air filter
Controller
Analog control
ITV
Series
(Without load)
ITV (Electro-pneumatic regulator)
13
IP65
p.
Air filter
SUP.
Electro-pneumatic regulator
Coating
Control signal
material
Controller
Coating nozzle
