AXIOMTEK PICO841 Quick Installation Manual page 2

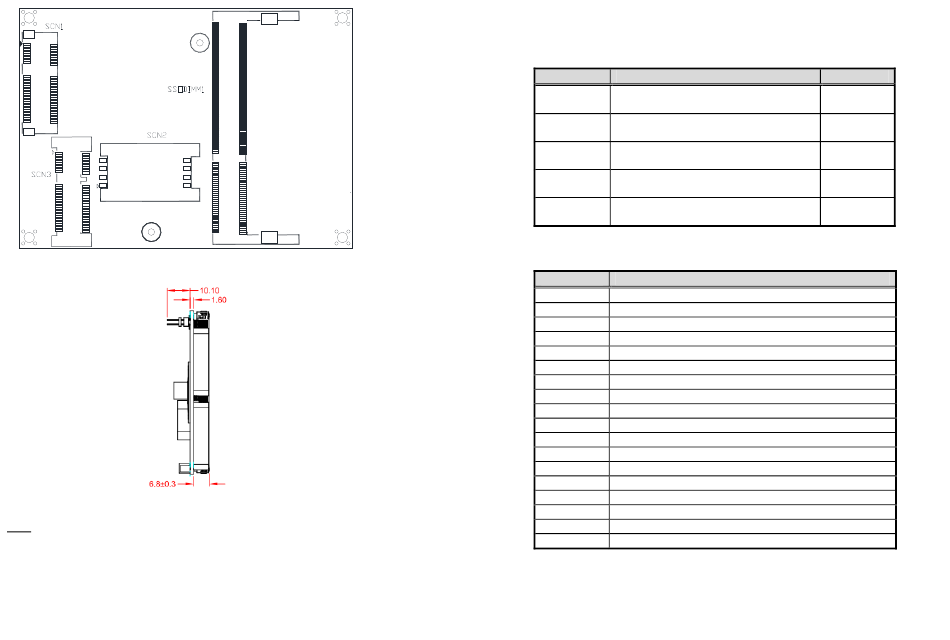

Bottom View
Side View
Note: Please refer to the PICO841/843 product information CD for the
complete user's manual, drivers and utilities. User's manual and related
documents are in Acrobat PDF format.
2 9418H841010E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 October 2015
Printed in Taiwan
Jumper Settings
Before applying power to the PICO841/843, please make sure all of the
jumpers are in factory default position.
Jumper Description
LVDS +12V Voltage Selection
JP1
Default: None
LVDS +3.3V/+5V Voltage Selection
JP2
Default: +3.3V
Auto Power On
JP4
Default: Disable
LVDS Brightness Control Mode Setting
JP5
Default: PWM Mode
Restore BIOS Optimal Defaults
JP6
Default: Normal Operation
Connectors
Connector Description
CN1 20-pin Board to Board Connector
CN2 40-pin Board to Board Connector
CN3 Fan Power Connector
CN4 SMBus Connector
CN6 Power LED Header
CN7 External Speaker and Internal Buzzer Header
CN8 LVDS Connector
CN9 SATA Power Connector
CN10 Inverter Connector
CN11 DC Power Connector
CN12 VGA Connector
LAN1 Ethernet Port
SATA1 SATA Connector
BAT1 CMOS Battery Connector
SCN1 Full-size PCI-Express Mini Card and mSATA Connector
SCN2 SIM Card Slot
SCN3 Half-size PCI-Express Mini Card Connector
SSODIMM1 DDR3L SO-DIMM Socket
9418H841010E
©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 October 2015
Printed in Taiwan
Setting
None
1-2 Close
1-2 Close
1-2 Close
1-2 Close
3
