2.2.2
Jumper List
Table 2.1: Jumper List of Main Board
J2
SW2
2.2.3
Jumper Location
2.2.4
Jumper Setting
At Mother Board
JP2
Part Number
Footprint
Description
Setting
NL
(1-2)*
Auto Power On Setting
Clear CMOS

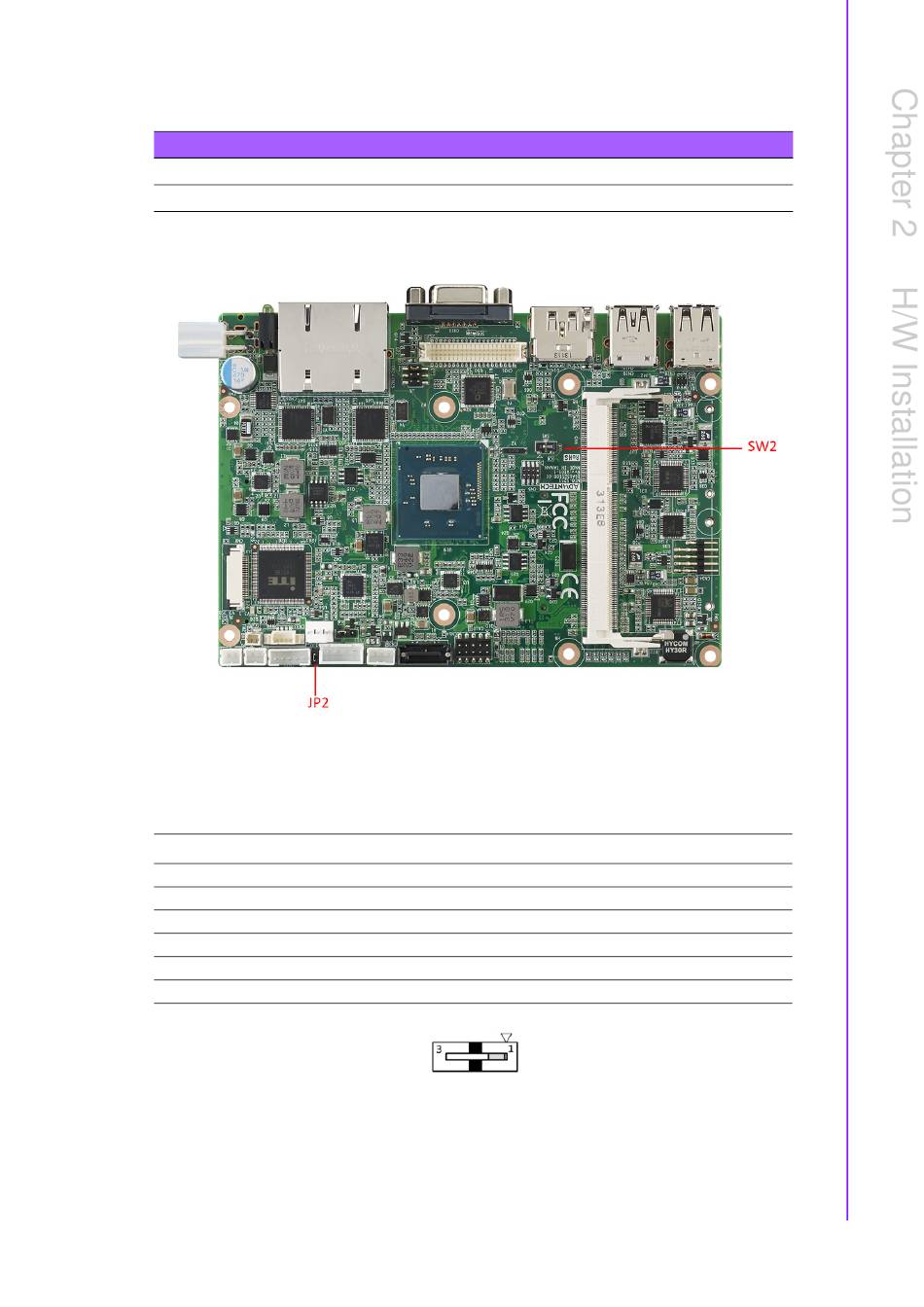

Figure 2.1 Jumper Layout
Auto Power On Setting
1653002101
HD_3x2P_79_D
PIN HEADER 2*1P 180D(M)SQUARE 2.0mm DIP W/O Pb
Function
Power On by power button
Auto Power On (default)
9
ARK-2121F User Manual
