2.3.1.2 Ethernet Connector (LAN)
ARK-2121F is equipped with two Ethernet controllers that are fully compliant with
IEEE 802.3u 10/100/1000 Mbps CSMA/CD standards. LAN1, LAN2 are all equipped
with Intel i210 Ethernet controller. The Ethernet port provides a standard RJ-45 jack
connector with LED indicators on the front side to show its Active/Link status (Green
LED) and Speed status (Yellow LED).
Table 2.3: Ethernet Connector Pin Assignments
Pin
1
2
3
4
5
6
7
8
2.3.1.3 Audio Connector
ARK-2121F offers stereo audio ports by three phone jack connectors of Line_Out,
Line_In, Mic_In. The audio chip is controlled by ALC888S, and it's compliant with
Azalea standard.
Table 2.4: Audio Connector Pin Assignments
Pin
1
2
3
ARK-2121F User Manual
8 1

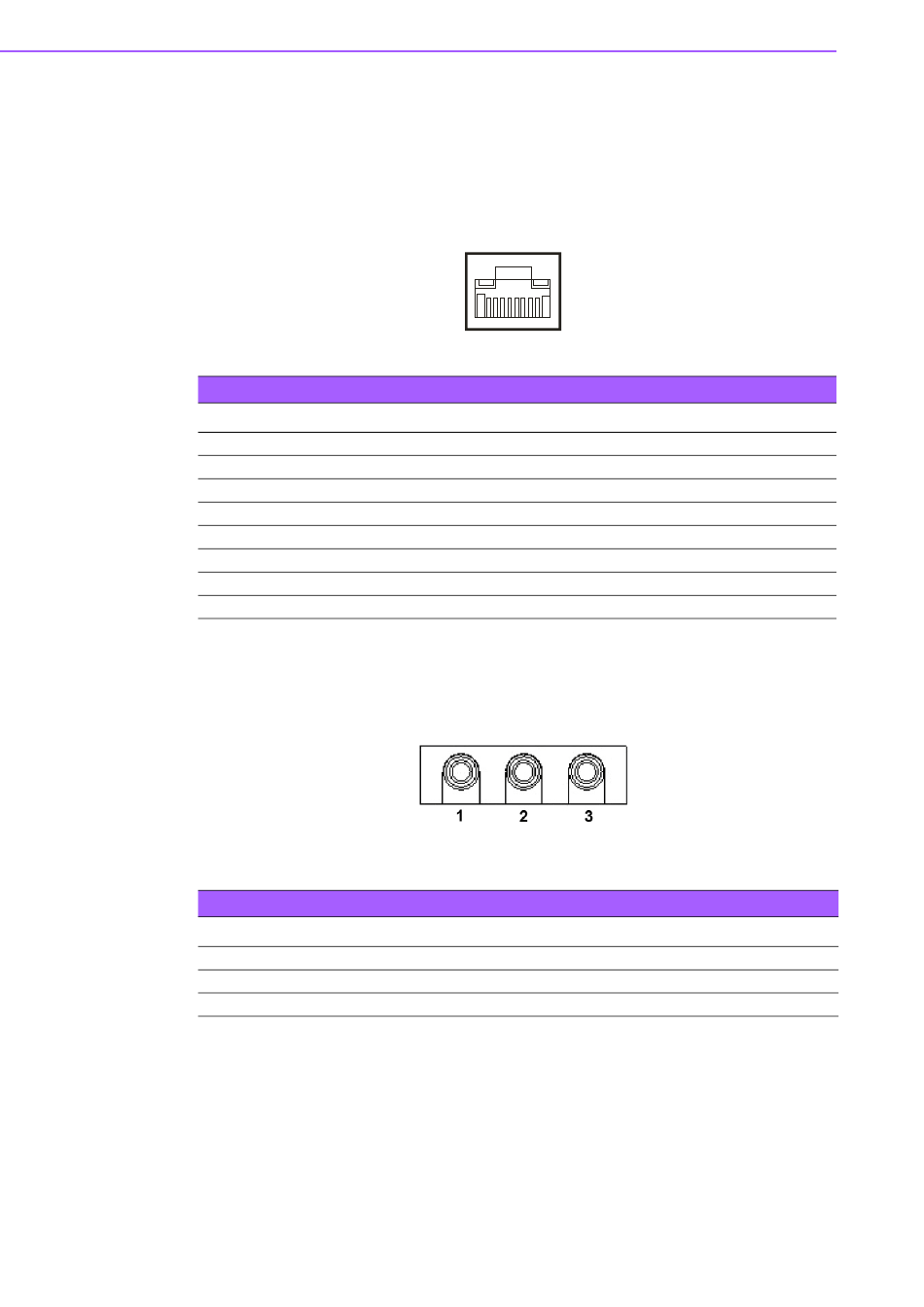

Figure 2.4 Ethernet connector
10/100/1000BaseT Signal Name
TX+
TX-
RX+
MDI2+
MDI2-
RX-
MDI3+
MDI3-
Figure 2.5 Audio connector
Audio Signal Name
Mic_In
Line_In
Line_Out
