MultIple ModulatInG boIlers

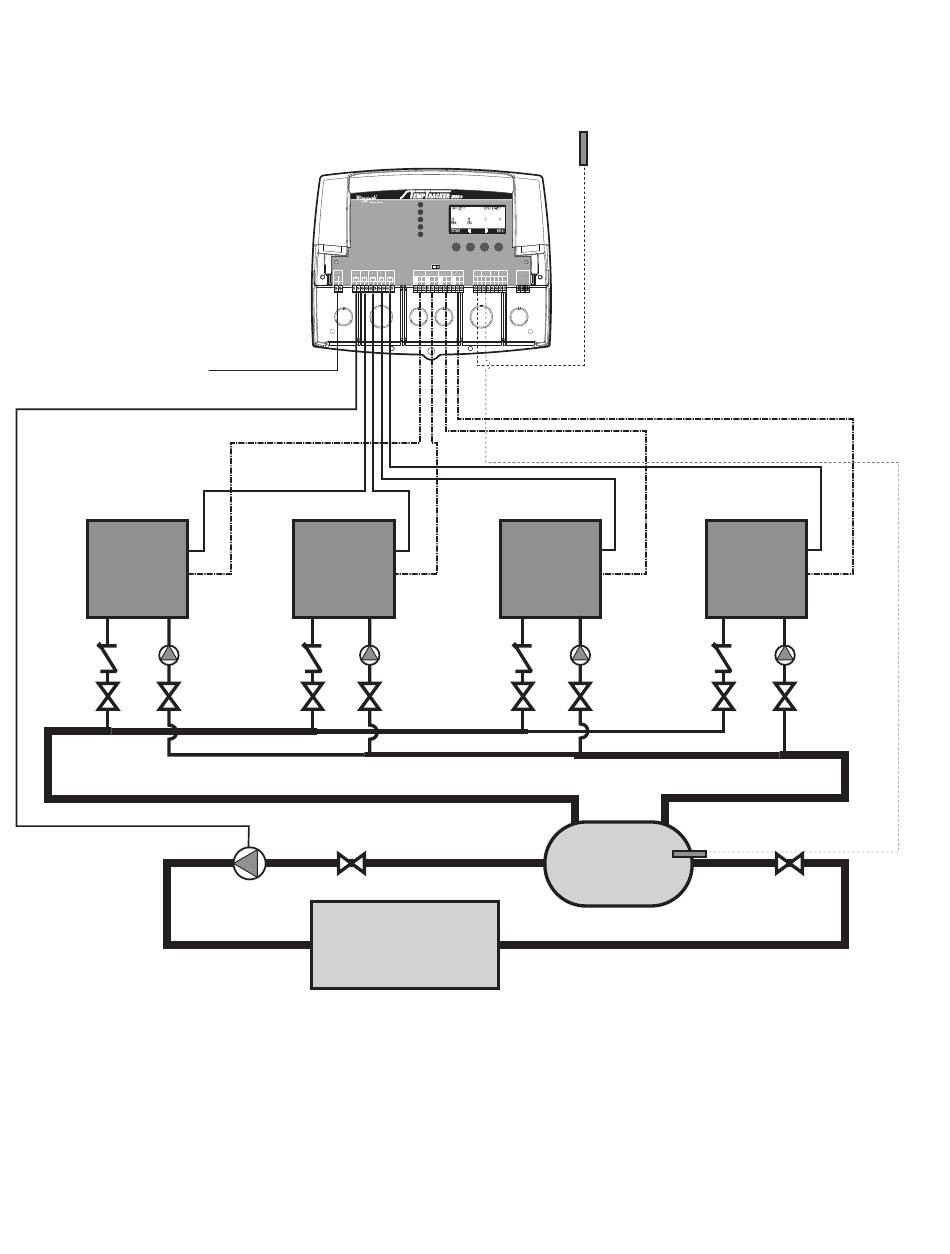

HeatInG WItH buffer tank pIpInG dIaGraM
120VAC
Boiler 1
system:
The TempTracker provides 4 Raypak modulating boilers using a 4 - 20mA modulating signal. The System output relay is
controlling a the Primary System Pump.
Raypak is aware that each installation is unique. Thus, Raypak is not responsible for any installation related to any
electrical or plumbing diagram generated by Raypak. The provided illustrations are to demonstrate Raypak's control
operating concept only.
SYSTEM
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
A
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
B
INPUT RATINGS:
115VAC 60Hz , 30VA MAX ---- ----
USE COPPER WIRE, C
CLASS 1 WIRE ONLY.
D
CAUTION : RISK OF ELECTRIC SHOCK
More than one disconnect switch may be required
to de-energize the equipment before servicing.
DO NOT APPLY ANY VOLTAGE
PROGRAM RUN
TO INPUT TERMINALS
Boiler 2
Building Heating Loop
Outdoor
Sensor
Boiler 3
System
Sensor
Buffer Tank
Boiler 4
