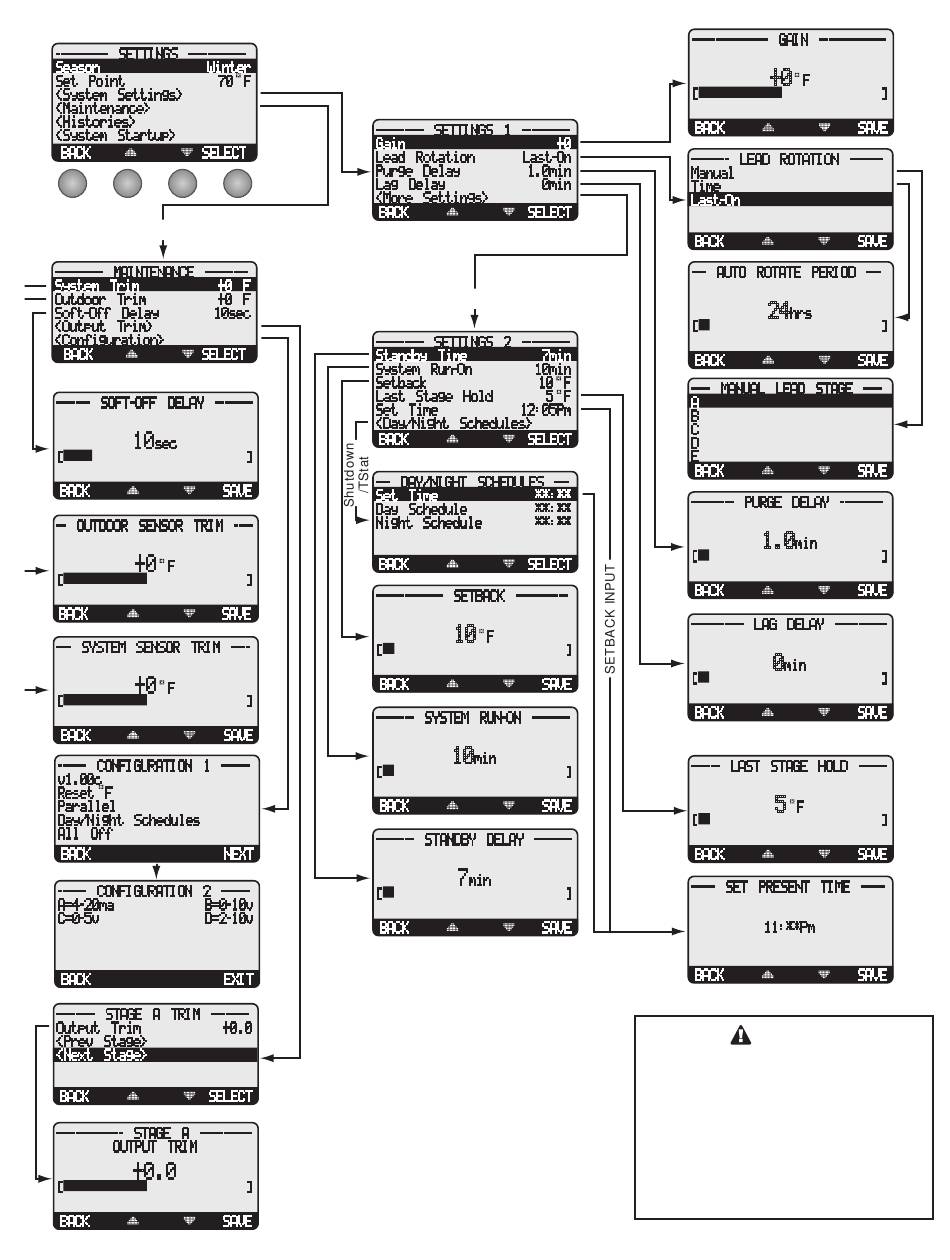

----------- SETTINGS ------------
Season Winter
Set Point 70 F
<System Settings>
<Maintenance>
<Histories>
<System Startup>
BACK SELECT
MAINTENANCE
---------- MAINTENANCE ---------
System Trim +0 F
Outdoor Trim +0 F
Soft-Off Delay 10sec
<Output Trim>
<Configuration>
BACK SELECT
------- SOFT-OFF DELAY --------
10
sec
[
BACK SAVE
-- OUTDOOR SENSOR TRIM ----
+0
F
[
BACK SAVE
--- SYSTEM SENSOR TRIM ----
+0
F
[
BACK SAVE
------ CONFIGURATION 1 ------
v1.00c
Reset F
Parallel
Day/Night Schedules
All Off
BACK NEXT
------ CONFIGURATION 2 ------
A=4-20ma B=0-10v
C=0-5v D=2-10v
BACK EXIT
-------- STAGE A TRIM --------
Output Trim +0.0
<Prev Stage>
<Next Stage>
BACK SELECT
-------------- STAGE A -----------
OUTPUT TRIM
+0.0
[
BACK SAVE
SYSTEM SETTINGS1
---------- SETTINGS 1 ----------
Gain
Lead Rotation
Purge Delay
Lag Delay
<More Settings>
BACK
SYSTEM SETTINGS2
---------- SETTINGS 2 ----------
Standby Time
System Run-On
Setback
Last Stage Hold
Set Time
<Day/Night Schedules>
BACK
]
--- DAY/NIGHT SCHEDULES ---
Set Time
Day Schedule
Night Schedule
BACK
]
-------------- SETBACK -----------
[
BACK
]
-------- SYSTEM RUN-ON --------
[
BACK
-------- STANDBY DELAY --------
[
BACK
]
+0
Last-On
1.0min
0min
SELECT
7min
10min
10 F
5 F
12:05Pm
SELECT
**:**
**:**
**:**
SELECT
10
F
]
SAVE
10
min
]
SAVE
7
min
]
SAVE
---------------- GAIN --------------
+0
F
[
BACK
-------- LEAD ROTATION -------
Manual
Time
Last-On
BACK
--- AUTO ROTATE PERIOD ---
24
hrs
[
BACK
---- MANUAL LEAD STAGE ----
A
B
C
D
E
BACK
--------- PURGE DELAY ---------
1.0
min
[
BACK
----------- LAG DELAY -----------
0
min
[
BACK
------ LAST STAGE HOLD ------
5
F
[
BACK
----- SET PRESENT TIME -----
11:**Pm
BACK
alert
To be able to change the
TempTracker mod+ settings the
Program/Run Switch must be set
to Program. The switch is located
under the Enclosure Wiring Cover
for security. The Enclosure Wiring
Cover can be securely closed using
a lock.
13
]
