TempTracker mod+ & TempTracker mod+ Extension Installation Manual

teMptracker Mod+ layout

Program Switch to restrict access to
function changes. This switch is
covered with Wiring Enclosure.
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz , 30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT
99RA
Four N.O. Boiler startup relay
120VAC Power outputs. Each is wired in series
with each boiler's limit circuit.
System Output controls
pumps, valves, or other
system components.

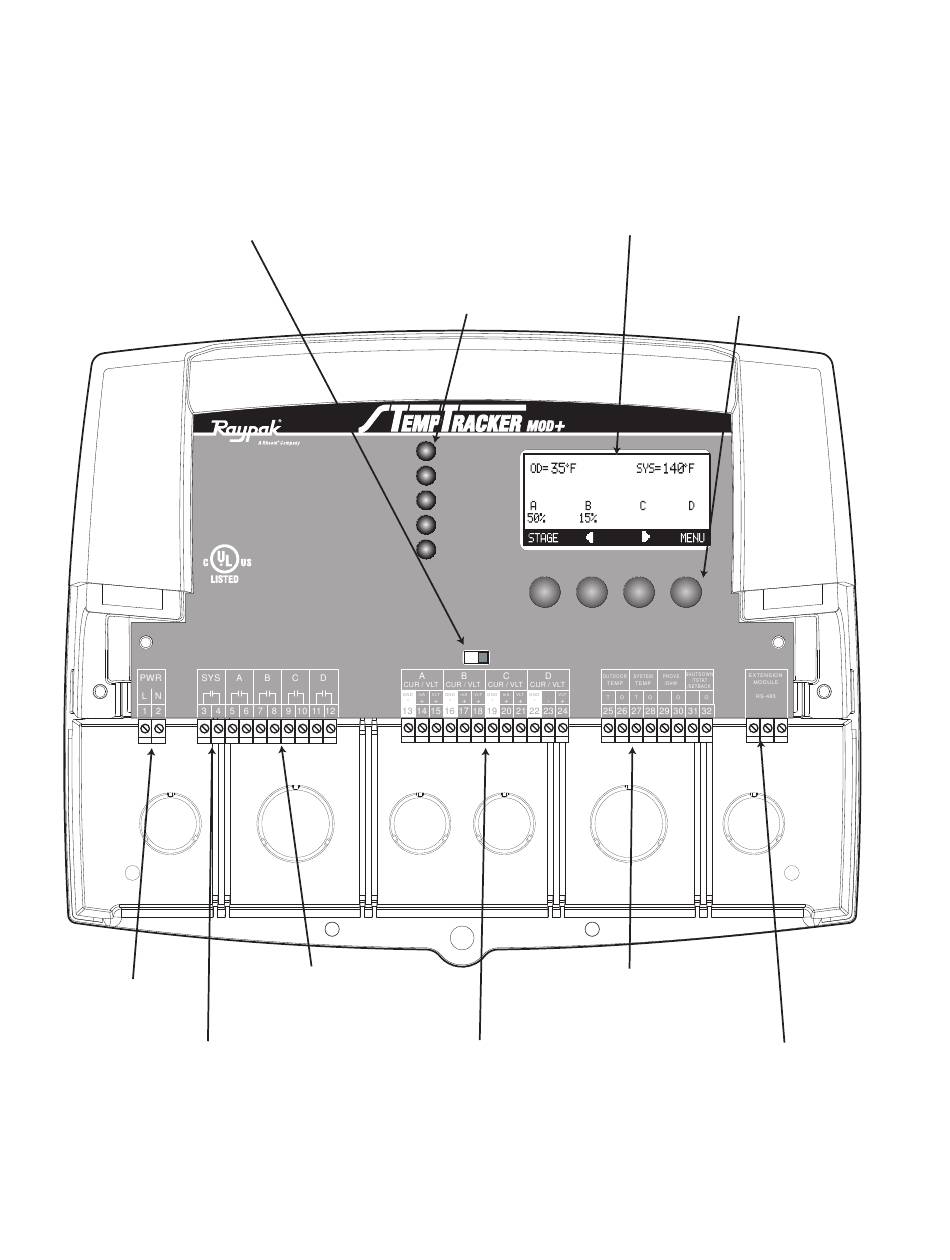

The digital display shows the system status, set point,
lead stage <in brackets>, and status of each stage.
To view and adjust settings, press the appropriate buttons.
LED indicates the
associated relay status.
SYSTEM
A
B
C
D
CAUTION
: RISK OF ELECTRIC SHOCK
More than one disconnect switch may be required
to de-energize the equipment before servicing.
PROGRAM
Four modulation outputs can be 4-20mA,
0-5V, 0-10V, 1-5V, or 2-10V. Go to
Startup Menu to determine the type of
output for each stage.
Buttons function is presented on
Bottom Row of display.
----
DO NOT APPLY ANY VOLTAGE
RUN
TO INPUT TERMINALS
When connecting Outdoor and System
Sensors, no Polarity is observed.
Prove terminals must be connected
for TempTracker mod+ to operate boilers.
----
Connect Extension panels to
add additional stages using
a 6 pin phone line only (cable
provided with TempTracker
mod+ Extension).
