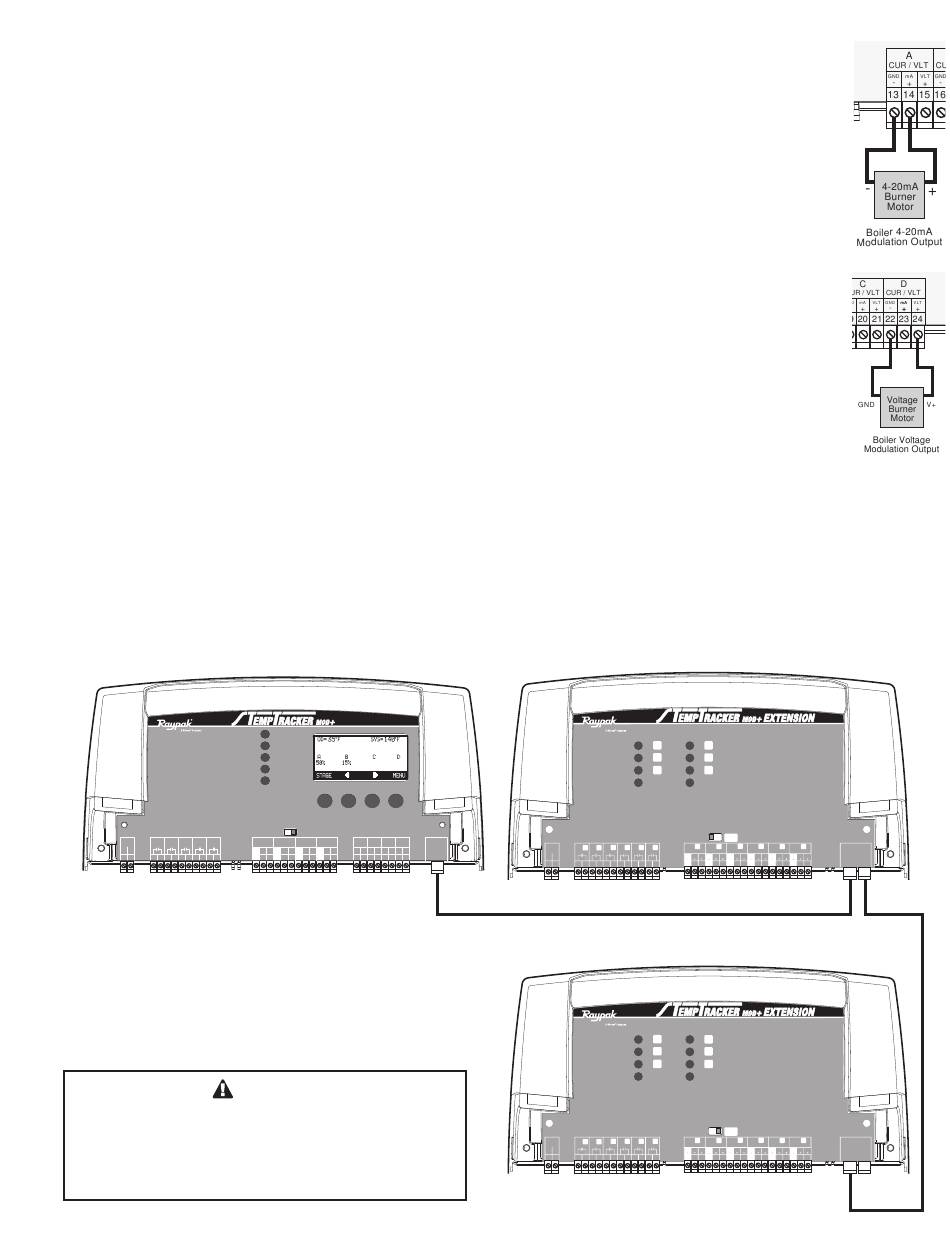

WIrInG to ModulatInG Motors

WIrInG tHe 4-20Ma ModulatInG Motors (a terMInals 13, 14), (b terMInals 16, 17),...
• The TempTracker mod+ can be equipped to operate up to four 4-20 mA modulating motors.
• The TempTracker mod+ Extension can be equipped to operate up to six additional modulating motors.
• The TempTracker mod+ and the TempTracker mod+ Extension sources 24VDC excitation voltage for the 4-20mA
signal.
• Wire the (-) from the modulating motor to the boiler terminal on the TempTracker mod+ marked (GND). That is
for boiler A, the modulating (-) terminal will be 13.
• Wire the (+) from the modulating motor to the boiler terminal on the TempTracker mod+ marked (mA). That is
for boiler A, the modulating (+) terminal will be 14.
WIrInG tHe current voltaGe ModulatInG Motors (a terMInals 13,15), (b terMInals
16,18),...
• The TempTracker mod+Extension can be equipped to operate up to six additional 0-5V, 0-10V, 1-5V, or 2-10V
modulating motors.
• Wire the (GND) from the modulating motor to the boiler terminal on the TempTracker mod+ marked (GND).
That is for boiler D, the modulating (GND) terminal will be 22.
• Wire the (V+) from the modulating motor to the boiler terminal on the TempTracker mod+ marked (VLT+). That
is for boiler D, the modulating (V+) terminal will be 23.

connectInG to tHe teMptracker Mod+ extensIon panels

• The TempTracker mod+ is equipped with a 6-pin phone socket to connect to extension panels.
• The TempTracker mod+ Extension is equipped with two 6-pin phone sockets to connect to TempTracker mod+
and an additional TempTracker mod+ Extension panel.
• Connection cable is provided as part of the TempTracker mod+ Extension package.
• Phone cables must be of a 6-wire with 6-pin terminals. Phone cables can extend up to 100'.
TempTracker mod+
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz , 30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
CAUTION
: RISK OF ELECTRIC SHOCK
More than one disconnect switch may be required
to de-energize the equipment before servicing.
PWR SYS A B C D
L N
1 2 3 4 5 6 7 8 9 10 11 12
Connecting TempTracker
mod+ to Two Extension
Panels using RS485
To set the Mini-Extension to a specific letter,
remove the wiring cover and switch the Ext A/Ext B
to the desired letter. DO NOT set both extensions
to the same letter as it may cause errors.
TempTracker mod+ & TempTracker mod+ Extension Installation Manual
SYSTEM
A
B
---- ----
C
D
DO NOT APPLY ANY VOLTAGE
PROGRAM RUN
TO INPUT TERMINALS
A B C D
OUTDOOR SYSTEM PROVE
CUR / VLT CUR / VLT CUR / VLT CUR / VLT TEMP TEMP /DHW
GND mA VLT GND mA VLT GND mA VLT GND mA VLT T O T O
- - - - O
+ + + + + + + +
13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
alert
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz , 30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
TempTracker mod+ Extension A
EXTENSION
SHUTDOWN
/SETBACK MODULE
PWR
RS-485
O
L N
32
1 2
TempTracker mod+ Extension B
PWR
L N
1 2
MANAGEMENT
EQUIPMENT
LISTED
99RA
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT CAUTION : RISK OF ELECTRIC SHOCK
LISTED
More than one disconnect switch may be required
99RA
to de-energize the equipment before servicing.
K
E F L
G M H N
I O J P
Comm Power
CAUTION:
More than one disconnect switch may be required
to de-energize the equipment before servicing.
Ext A Ext B
E K F L G M H
E K F L G M H N I O J P
CUR / VLT CUR / VLT CUR / VLT CUR / VLT
GND mA VLT GND GND mA VLT GND GND mA VLT GND GND
19
3 4 5 6 7 8 9 10 11 12 11 12 13 14 15 16 16 17 18 19 20 21 22 22 23
K L
E F
G M H N
O
I J P
Comm Power
CAUTION:
More than one disconnect switch may be required
to de-energize the equipment before servicing.
Ext A
Ext B
E K F L G M H
E K F L G M H N I O J P
CUR / VLT CUR / VLT CUR / VLT CUR / VLT
GND mA VLT GND GND mA VLT GND GND mA VLT GND GND
3 4 5 6 7 8 9 10 11 12 11 12 13 14 15 16 17 18 19 19 20 21 22 23
16 22
CAUTION : RISK OF ELECTRIC SHOCK
More than one disconnect switch may be required
to de-energize the equipment before servicing.
11
Mini-MO
PROGRAM
Full Modulation Sequen
SYSTEM
A
B
C
D
PROGRAM RUN
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz, 12VA MAX
Use Copper Conductors Only.
Risk of Electric Shock.
N I O J P
EXTENSION
MODULE
CUR / VLT CUR / VLT
mA VLT GND mA VLT GND GND mA VLT RS-485
24 25 26 27 16 28 29 30
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz, 12VA MAX
Use Copper Conductors Only.
Risk of Electric Shock.
N I O J P
EXTENSION
MODULE
CUR / VLT CUR / VLT
mA VLT GND mA VLT GND GND mA VLT RS-485
24 25 26 27 16 29 30
28
-
DO NOT AP
TO INP
