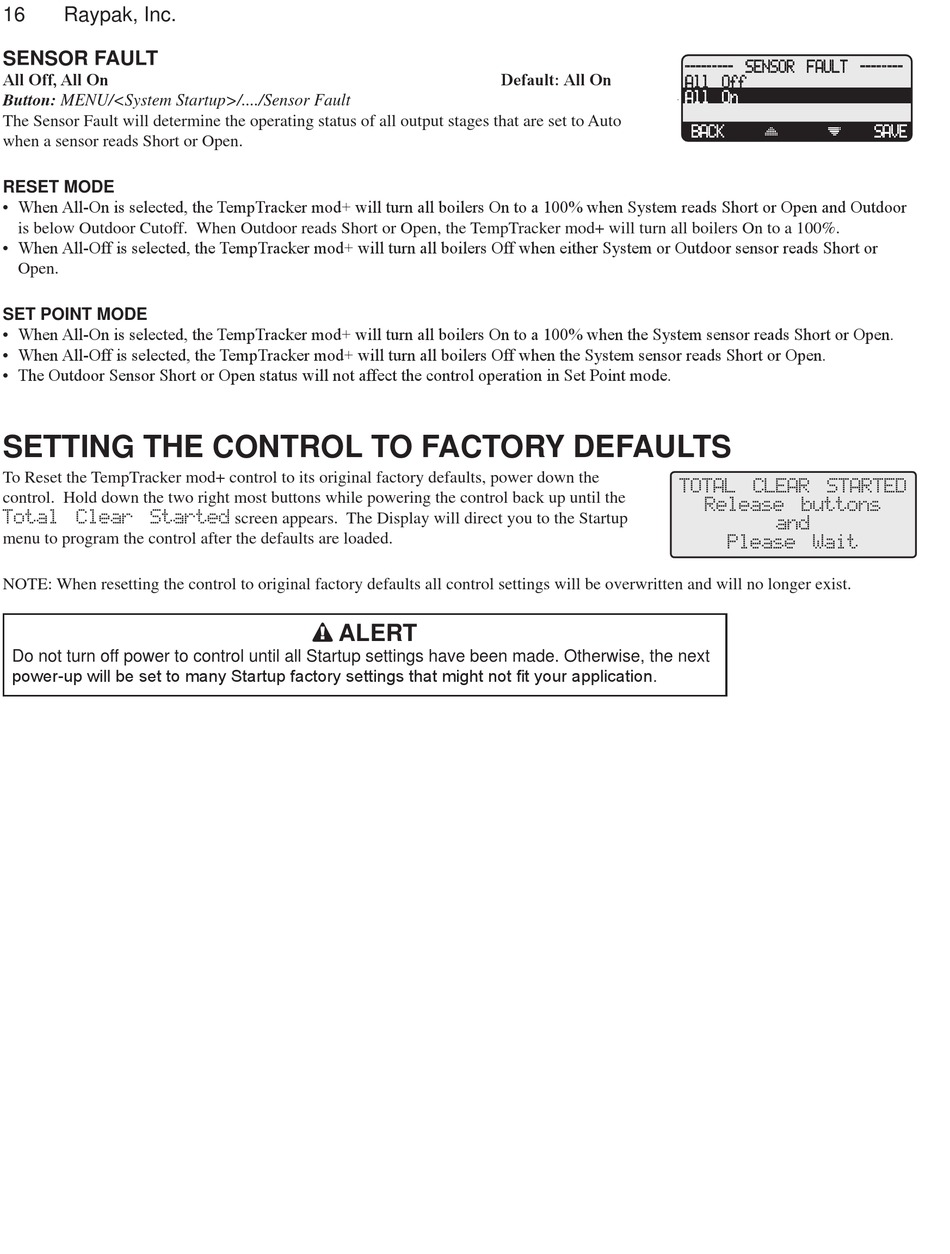

sensor fault

----- SETBACK/SHUTDOWN -----
All Off, All On
Shutdown/Disable
Tstat/Enable
Button: MENU/<System Startup>/..../Sensor Fault
Setback
The Sensor Fault will determine the operating status of all output stages that are set to Auto
BACK
when a sensor reads Short or Open.
reset Mode
• When All-On is selected, the TempTracker mod+ will turn all boilers On to a 100% when System reads Short or Open and Outdoor
is below Outdoor Cutoff. When Outdoor reads Short or Open, the TempTracker mod+ will turn all boilers On to a 100%.
• When All-Off is selected, the TempTracker mod+ will turn all boilers Off when either System or Outdoor sensor reads Short or
Open.
set poInt Mode
• When All-On is selected, the TempTracker mod+ will turn all boilers On to a 100% when the System sensor reads Short or Open.
• When All-Off is selected, the TempTracker mod+ will turn all boilers Off when the System sensor reads Short or Open.
• The Outdoor Sensor Short or Open status will not affect the control operation in Set Point mode.

settInG tHe control to factory defaults

To Reset the TempTracker mod+ control to its original factory defaults, power down the
control. Hold down the two right most buttons while powering the control back up until the
Total Clear Started screen appears. The Display will direct you to the Startup
menu to program the control after the defaults are loaded.
NOTE: When resetting the control to original factory defaults all control settings will be overwritten and will no longer exist.
Do not turn off power to control until all Startup settings have been made. Otherwise, the next
power-up will be set to many Startup factory settings that might not fit your application.
