TempTracker mod+ & TempTracker mod+ Extension Installation Manual

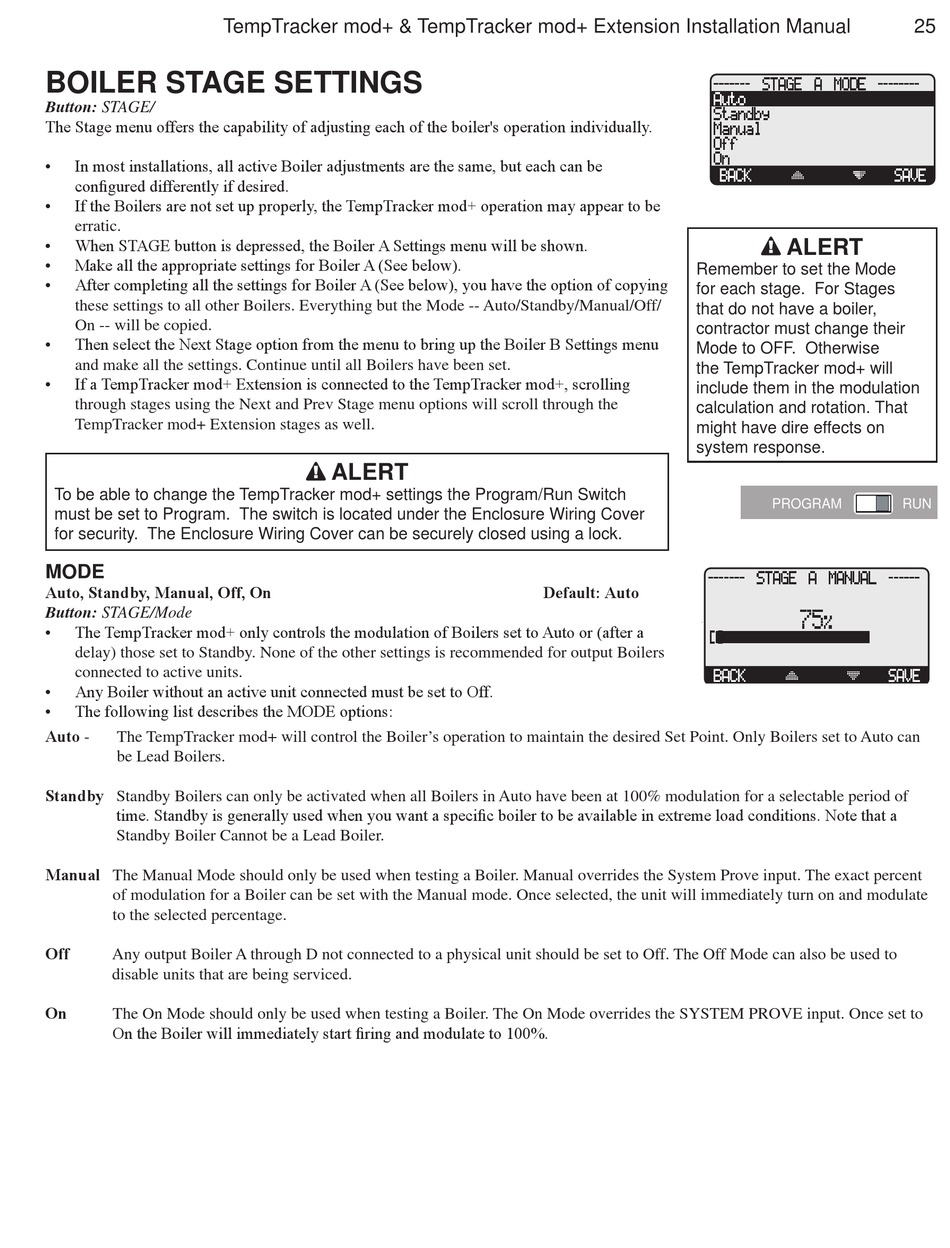

boIler staGe settInGs

Button: STAGE/
The Stage menu offers the capability of adjusting each of the boiler's operation individually.
• In most installations, all active Boiler adjustments are the same, but each can be
configured differently if desired.
• If the Boilers are not set up properly, the TempTracker mod+ operation may appear to be
erratic.
• When STAGE button is depressed, the Boiler A Settings menu will be shown.
• Make all the appropriate settings for Boiler A (See below).
• After completing all the settings for Boiler A (See below), you have the option of copying
these settings to all other Boilers. Everything but the Mode -- Auto/Standby/Manual/Off/
On -- will be copied.
• Then select the Next Stage option from the menu to bring up the Boiler B Settings menu
and make all the settings. Continue until all Boilers have been set.
• If a TempTracker mod+ Extension is connected to the TempTracker mod+, scrolling
through stages using the Next and Prev Stage menu options will scroll through the
TempTracker mod+ Extension stages as well.
To be able to change the TempTracker mod+ settings the Program/Run Switch
must be set to Program. The switch is located under the Enclosure Wiring Cover
for security. The Enclosure Wiring Cover can be securely closed using a lock.

Mode

35
OD= F
Auto, Standby, Manual, Off, On
Button: STAGE/Mode
• The TempTracker mod+ only controls the modulation of Boilers set to Auto or (after a
A B
95% 50%
delay) those set to Standby. None of the other settings is recommended for output Boilers
STAGE
connected to active units.
• Any Boiler without an active unit connected must be set to Off.
• The following list describes the MODE options:
Auto -
The TempTracker mod+ will control the Boiler's operation to maintain the desired Set Point. Only Boilers set to Auto can
be Lead Boilers.
Standby Standby Boilers can only be activated when all Boilers in Auto have been at 100% modulation for a selectable period of
time. Standby is generally used when you want a specific boiler to be available in extreme load conditions. Note that a
Standby Boiler Cannot be a Lead Boiler.
Manual The Manual Mode should only be used when testing a Boiler. Manual overrides the System Prove input. The exact percent
of modulation for a Boiler can be set with the Manual mode. Once selected, the unit will immediately turn on and modulate
to the selected percentage.
Off
Any output Boiler A through D not connected to a physical unit should be set to Off. The Off Mode can also be used to
disable units that are being serviced.
On
The On Mode should only be used when testing a Boiler. The On Mode overrides the SYSTEM PROVE input. Once set to
On the Boiler will immediately start firing and modulate to 100%.
alert
98
SYS= F ------- STAGE A MODE --------
Auto
Standby
Manual
C D
Off
--- ---
On
BACK
MENU
----- STAGE A SETTINGS ----
Mode
Ignition %
Mode Start %
<Prev Stage>
<Next Stage>
Copy Settings
BACK
35 98
OD= F SYS=
A B C
95% 50% ---
STAGE
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz , 30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT
LISTED
99RA
Default: Auto
SAVE
Auto
SELECT
F ------- STAGE A MODE --------
Auto
Standby
Manual
D
Off
---
On
BACK
MENU
----- STAGE A SETTINGS ----
Mode
Ignition %
Mode Start %
Remember to set the Mode
<Prev Stage>
<Next Stage>
for each stage. For Stages
Copy Settings
that do not have a boiler,
BACK
contractor must change their
Mode to OFF. Otherwise
the TempTracker mod+ will
include them in the modulation
calculation and rotation. That
CAUTION
: RISK OF ELECTRIC SHOCK
might have dire effects on
More than one disconnect switch may be required
to de-energize the equipment before servicing.
system response.
PROGRAM
------- STAGE A MANUAL ------
[]
BACK
-------- COPY SETTINGS -------
---
From Stage A
---
to all other stages
BACK
25
SAVE
SYSTEM
Auto
---
A
alert
---
B
C
SELECT
D
RUN
75
%
SAVE
COPY
