MaIntenance

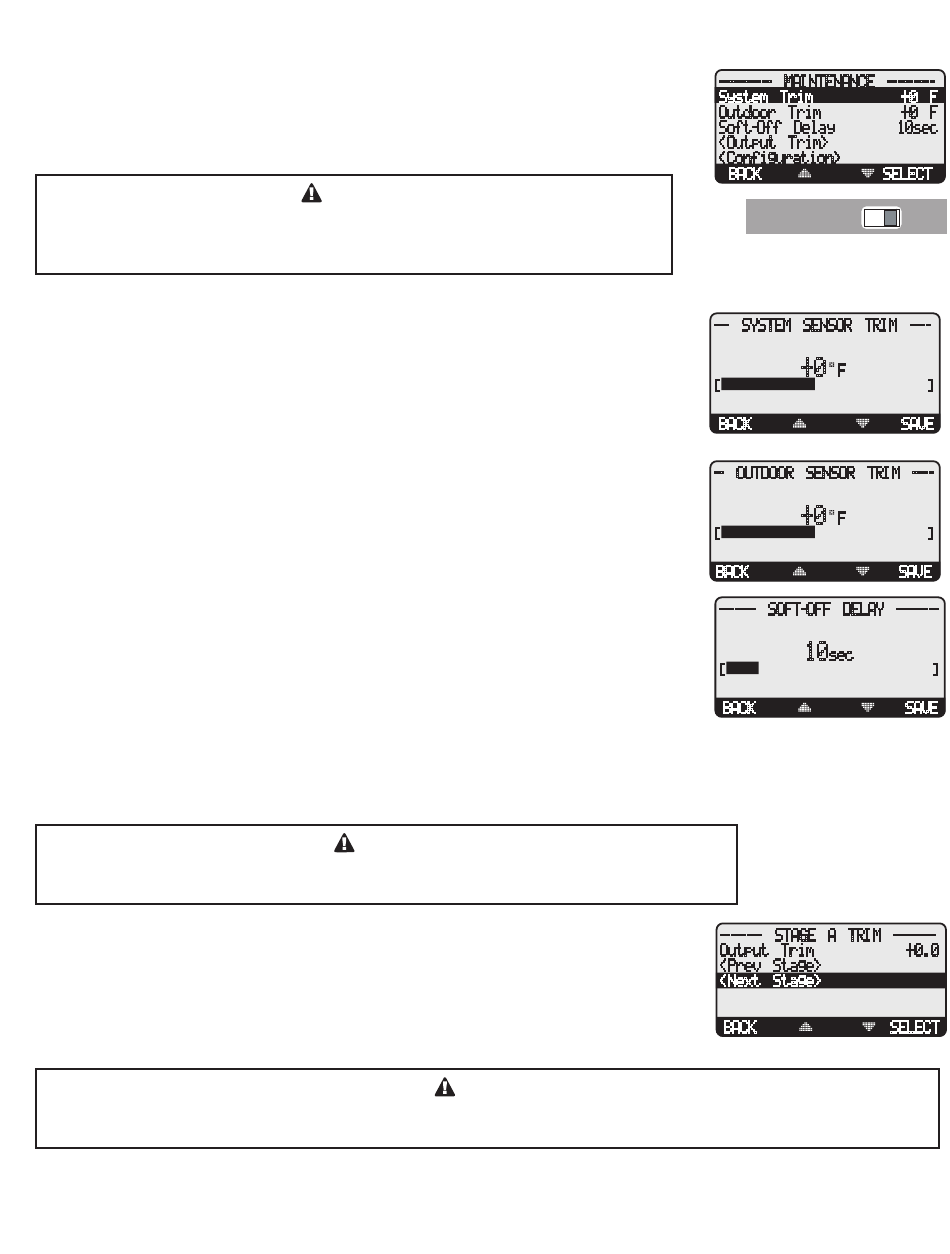

Button: MENU/<Maintenance>
The Maintenance menu gives access to sensor and outputs trimming and Soft-Off. In
addition, you'll have access to view the Startup configuration settings.
To be able to change the TempTracker mod+ settings the Program/Run Switch
must be set to Program. The switch is located under the Enclosure Wiring Cover
for security. The Enclosure Wiring Cover can be securely closed using a lock.
systeM & outdoor sensor trIM
Adjustable -5°F to +5°F
Button: MENU/<Maintenance>/System Trim
Button: MENU/<Maintenance>/Outdoor Trim
• The Raypak thermistor type sensors are very accurate, and normally require no calibration.
Sometimes it may be desirable to make small adjustments to the displayed value for either
the Outdoor temperature (OD) or the System temperature (SYS). The Trim setting can
adjust the displayed value by ± 5°F.
• Do not use the Trim setting to make the Outdoor temperature sensor match that reported on
the radio or TV. Outdoor temperature can vary widely over a broadcast range. Only trim
the outdoor sensor based on an accurate thermometer reading taken where the sensor is
located.

soft-off delay

Adjustable 0sec to 60sec
Button: MENU/<Maintenance>/Soft-Off Delay
• When a stage is no longer needed, the Soft-Off keeps that stage burner in Low Fire prior to
turning it off.
• The display will show a percent that is equal to the Ignition % for the stage in Soft-Off
delay. That number will blink for the Soft-Off delay period.
• If during the Soft-Off stage delay period the TempTracker mod+ needed that stage to turn
back on, the stage will be released from the Soft-Off delay and resume normal operation.
• On a Shutdown initiation or Tstat termination any stage that was on will go into Soft-Off
delay before fully turning off.
When using Soft-Off and Last Stage Hold, the last boiler stage will not turn off until both
parameters have elapsed. In this case, Soft-Off will start after the Last Stage Hold.

output trIM

Adjustable -5 to +5
Button: MENU/<Maintenance>/Output Trim
• Each of the stages controlled by the TempTracker mod+ has a separate Output Trim setting.
• Output Trim acts as an adjustment to a stage output percent to match the burner motor.
• After adjusting the Output Trim, test the operation to make sure the results match your
expectation.
DO NOT use the Output Trim for a Stage unless it is absolutely necessary. Test burner operation and modulation
output matching after adjusting the Output Trim.
TempTracker mod+ & TempTracker mod+ Extension Installation Manual
alert
alert
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz , 30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT CAUTION
LISTED
More than one disconnect switch may be required
99RA
to de-energize the equipment before servicing.
Default: 0°F
Default: 10sec
Default: 0
