MultIple ModulatInG boIlers

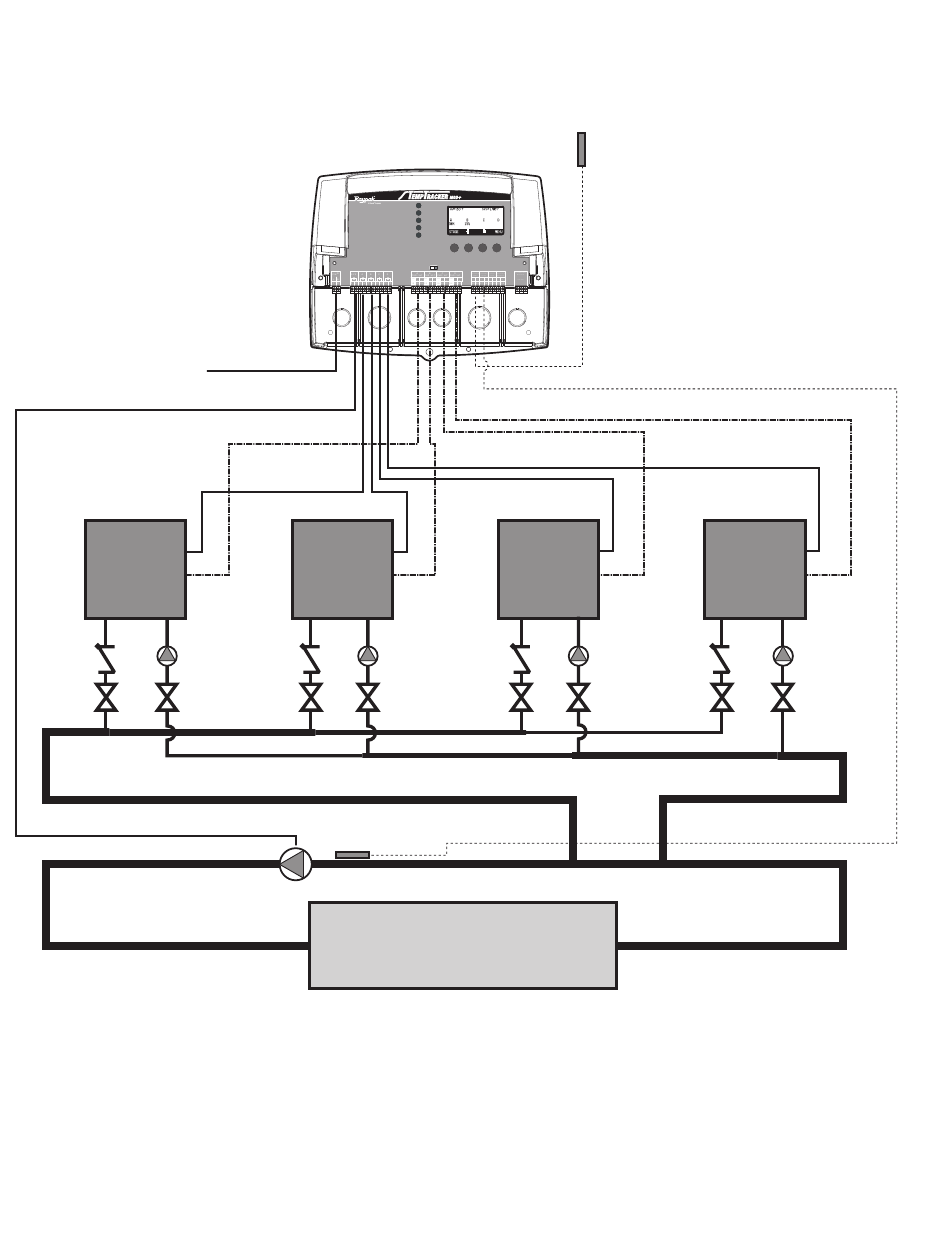

dIrect HeatInG pIpInG dIaGraM
120VAC
Boiler 1
system:
The TempTracker provides 4 Raypak modulating boilers using a 4 - 20mA modulating signal. The boilers are piped in
Reverse Return on the primary loop. The System output is controlling the System Pump.
Raypak is aware that each installation is unique. Thus, Raypak is not responsible for any installation related to any
electrical or plumbing diagram generated by Raypak. The provided illustrations are to demonstrate Raypak's control
operating concept only.
