operatInG settInGs

proGraM cHanGe settInGs

To be able to change the TempTracker mod+ settings the Program/Run Switch must be set to
Program. The switch is located under the Enclosure Wiring Cover for security. The Enclosure
Wiring Cover can be securely closed using a lock.

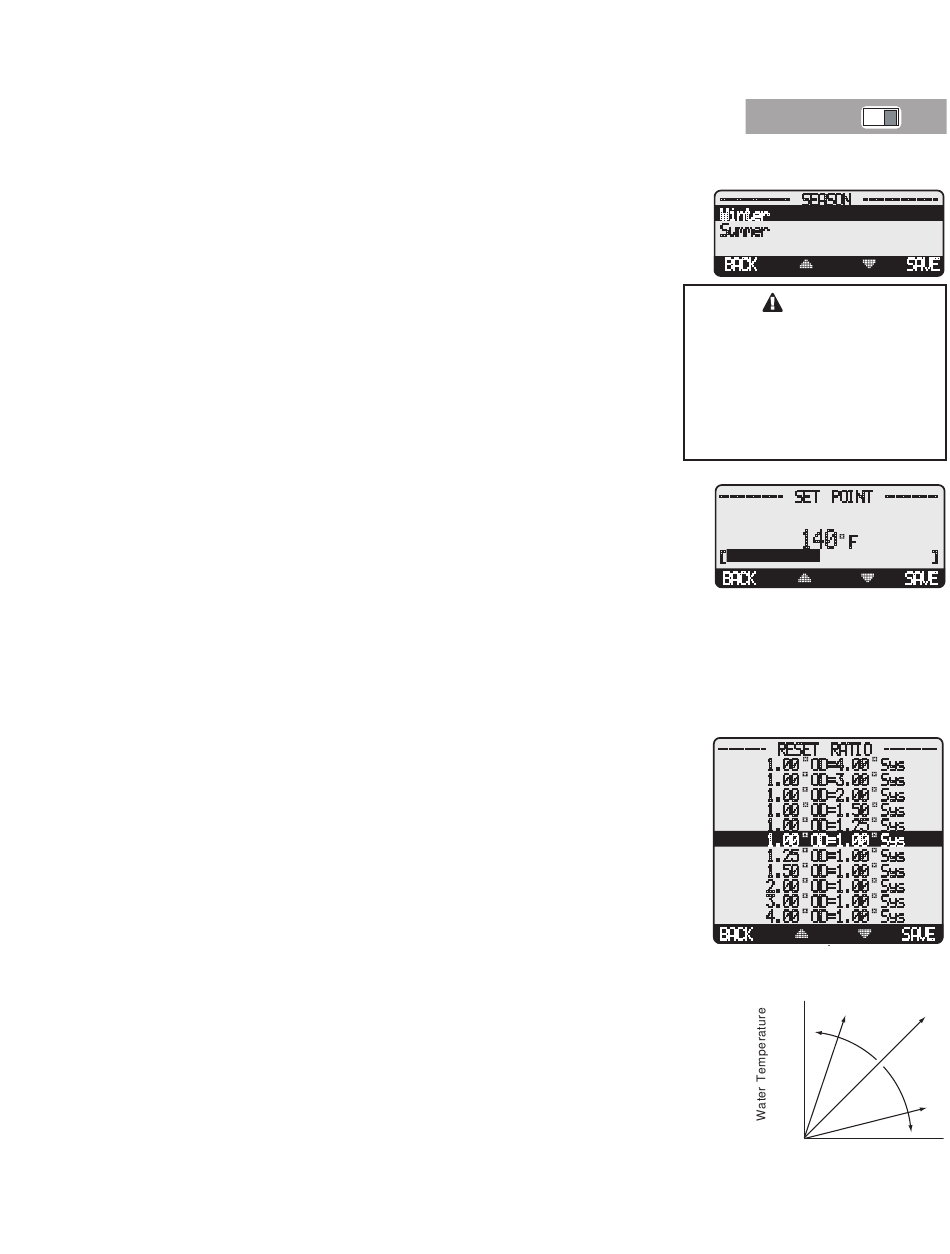

season

Winter, Summer
Button: MENU/Season
• The TempTracker mod+ will turn all boiler relays off when it is in Summer setting.
However, a DHW call will bring boilers back on if needed. The Message Display Line will
display Summer to show status.
• When in Winter, the TempTracker mod+ will activate the Sys relay whenever the Outdoor
temperature (OD) falls to or below the Outdoor Cutoff setting. In addition, it will begin
heating whenever the System temperature (SYS) falls below the Set Point Temperature.
• When the heating season is over, it is a good practice to switch the TempTracker mod+ to
Summer setting. This will allow DHW calls to operate the boilers when needed.

set poInt

(not ADjuStAble in eMS MoDe)
Adjustable 70ºF - 250ºF
Button: MENU/Set Point
• The Set point is the temperature value the TempTracker mod+ will use to control the system.
• It only be available when Set Point is selected as the Sensor Type. See page 14.
• The TempTracker mod+ will increase, decrease or hold the modulation of the boilers to
maintain the system temperature around the Set point. The amount of fluctuate around the
set point depends on the Modulation Mode, System Settings, and Stage Settings.
• If the EMS Mode was Enabled, the Set Point will be set by the EMS/BMS system and will
be available to be read but not changed on the display.

reset ratIo

Adjustable 1.00ºOD : 4.00ºSys to 4.00ºOD : 1.00ºSys
Button: MENU/Set Point
• The Reset Ratio determines how the System water temperature (SYS) will vary with
Outside temperature (OD). With any of the ratios, the colder it becomes outside, the hotter
the temperature of the system water. The ratios are adjustable from 1.00 (OD):4.00 (SYS) to
4.00 (OD):1.00 (SYS). (See Understanding Operation Concept on page 5.)
• With a 1.00 (OD):4.00 (SYS) ratio, the System water temperature (SYS) will increase
rapidly as the outside temperature falls, hitting the maximum of 240°F at 24°F outside
temperature. With a 4.00 (OD):1.00 (SYS) ratio, the System water temperature (SYS) will
increase slowly as the outside temperature falls. Even at -30°F, the system water will only
be 125°F, and at 24°F outside, the system water will be 112°F. Such a low Reset Ratio
might be used with radiant floor heating applications.
• With most baseboard heating applications, a 1.00 (OD):1.00 (SYS) setting is a good place to
start. With a 1.00 (OD):1.00 (SYS) ratio, for every degree the outside temperature falls, the
system water temperature is increased one degree.
• If required: Adjust the RESET RATIO in cold weather. If the ambient building
temperatures are too cold in cold weather, move the ratio to a higher selection. That is,
if 1.00 (OD):1.00 (SYS) was initially selected, change the selection to 1.00 (OD):1.25
(SYS). If the building temperatures are too warm in cold weather, move the ratio to a lower
selection. That is, if 1.00 (OD):1.00 (SYS) was initially selected, change the selection to
1.25 (OD):1.00 (SYS).
