TempTracker mod+ & TempTracker mod+ Extension Installation Manual
MultIple ModulatInG boIlers

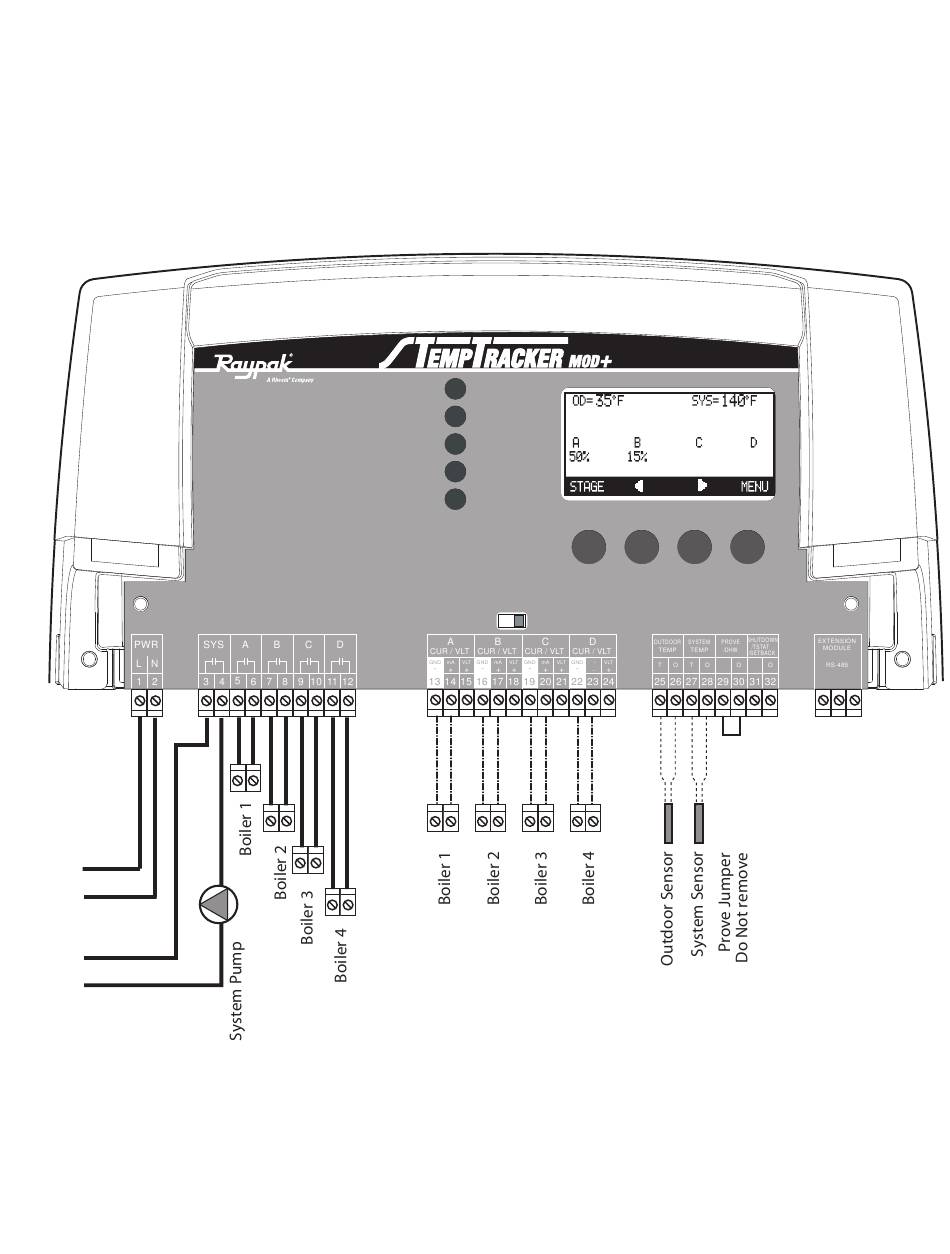

dIrect HeatInG WIrInG dIaGraM
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz , 30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
L
N
L
N
SYSTEM
A
B
C
D
CAUTION : RISK OF ELECTRIC SHOCK
More than one disconnect switch may be required
to de-energize the equipment before servicing.
PROGRAM
Signal Outputs
DO NOT APPLY ANY VOLTAGE
RUN
TO INPUT TERMINALS
4 - 20 mA
---- ----
29
