© 07/2011 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
Ford Focus 2011->
Lead Cable for
part-no.:
381114-23-1-1
Alpine
381114-23-1-5
Blaupunk
381114-23-1-0
Becker
381114-23-1-8
Clarion
381114-23-1-9
JVC
Compatible with these double DIN devices
Double DIN Navigation
4
3
Spare OEM hazard light
switch by Ford required
Ford Part-No.: 1519127
Installation Manual
Double DIN Kit
Colour: black
381114-23-1-7
Kenwood
381114-23-1-2
Panasonic
381114-23-1-3
Pioneer
381114-23-1-6
Sony
381114-23-1-4
Zenec
2
4
6
1
7
5

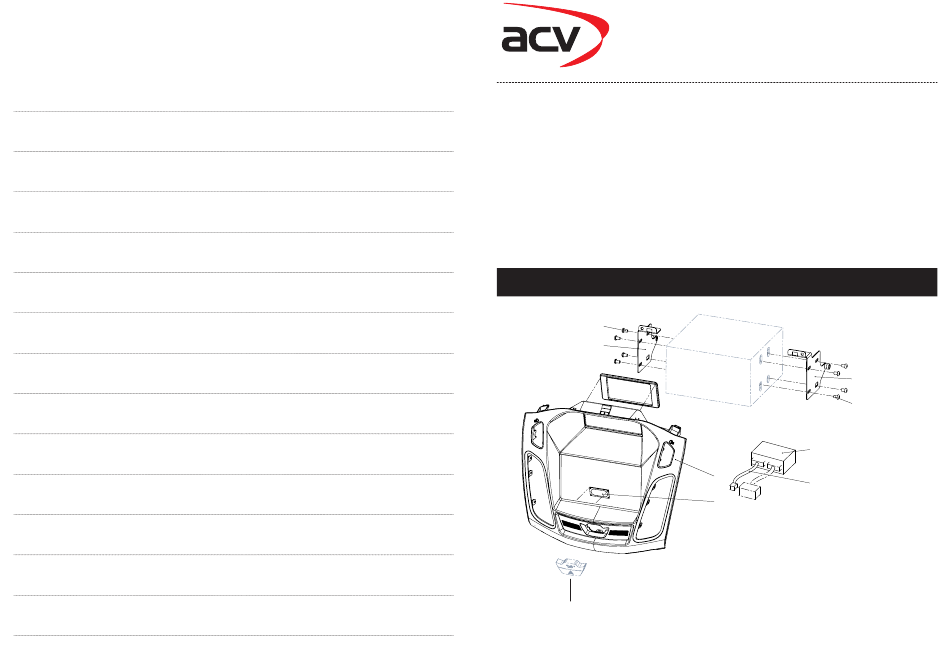

1: Facia Plate
2: Mounting Bracket Right Assembly
3: Mounting Bracket Left Assembly
4: Flat Headed Screw
5: Speaker
6: Stalk Interface
7: Lead Cable
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ACV 381114-23-1-1
Summary of Contents for ACV 381114-23-1-1
- Page 1 Installation Manual Double DIN Kit Ford Focus 2011-> Colour: black Lead Cable for part-no.: 381114-23-1-1 381114-23-1-7 Alpine Kenwood 381114-23-1-5 381114-23-1-2 Blaupunk Panasonic 381114-23-1-0 381114-23-1-3 Becker Pioneer 381114-23-1-8 381114-23-1-6 Clarion Sony 381114-23-1-9 381114-23-1-4 Zenec Compatible with these double DIN devices Double DIN Navigation...
- Page 2 Ford Foucs OEM Dashboard (sample photo) Unclip panel under OEM radio Remove Panel under OEM radio These 2 screws need to be removed All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
- Page 3 14. as needed fix speaker with 4a. Remove 2 screws under OEM radio cyanoacrylate adhesive 15. A spare OEM hazard light switch Unclip OEM panel by Ford is required. Ford Part-No.: 1519127 16. Mount spare hazard light switch to Remove OEM panel carefully facia plate.
- Page 4 Preperation of facia plate Remove 2 screws ( see arrows) Remove OEM head unit 12. Unclip 2 OEM air vents Preperation of facia plate OEM dash board with removed head unit 13. Mount them to new facia plate 10. Mount mounting brackets to The Focus is equipped with double DIN head unit two kinds of OEM displays...
