Skoda Octavia (5E) 02/2013 -> Sedan
Skoda Octavia (5E) 05/2013 -> Station wagon
Skoda Octavia (5E) 09/2014 -> Scout - Offroad version
Compatible with these Double-DIN devices:
Double-DIN Navigation
3
9
8
7
5
10
1

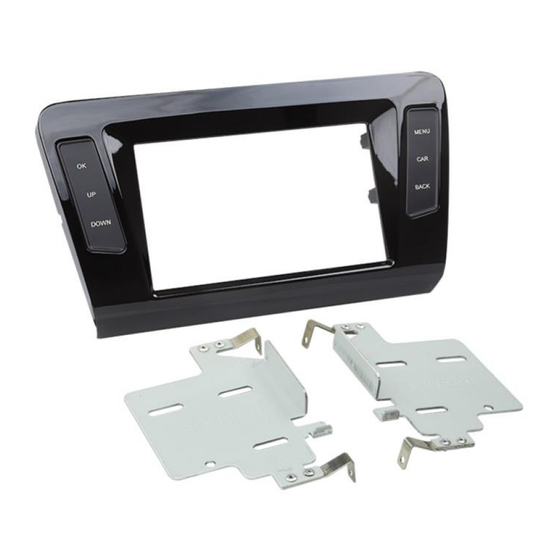

Double DIN Set contents
• (1) Facia Plate
• (6) Cover right
• (2) Mounting bracket right
• (7) Cover left
• (3) Mounting bracket left
• (8) Self tapping screw with collar
• (4) Housing right
• (9) Flat headed screw
• (5) Housing left
• (10) Magnet D=5 t=3
Installation Manual
Double DIN Kit
colour:
piano black
part-no.: 381320-33-1
8
6
4
10
2
9
Advertisement
Related Manuals for ACV 381320-33-1
Summary of Contents for ACV 381320-33-1
- Page 1 Installation Manual Double DIN Kit colour: piano black part-no.: 381320-33-1 Skoda Octavia (5E) 02/2013 -> Sedan Skoda Octavia (5E) 05/2013 -> Station wagon Skoda Octavia (5E) 09/2014 -> Scout - Offroad version Compatible with these Double-DIN devices: Double-DIN Navigation Double DIN Set contents •...
- Page 2 Installation Manual Double DIN Kit pre-assembly Unit and Brackets Insert radio release keys into appropriate openings (1 : 2) of OEM head unit Mount brackets Unit front surface (see arrows) to Double-DIN head unit as shown in the drawing Pull out OEM head unit carefully in order to unplug connectors Unplug all connectors of...
