A S S E M B LY I N S T R U C T I O N S
The Bloomsbury Raised Planter Box
Please read through before starting assembly.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST) .
(UK Tel: (44) 2038 687160 - Mon. to Fri. 1:00 PM to 10:00 PM GMT).

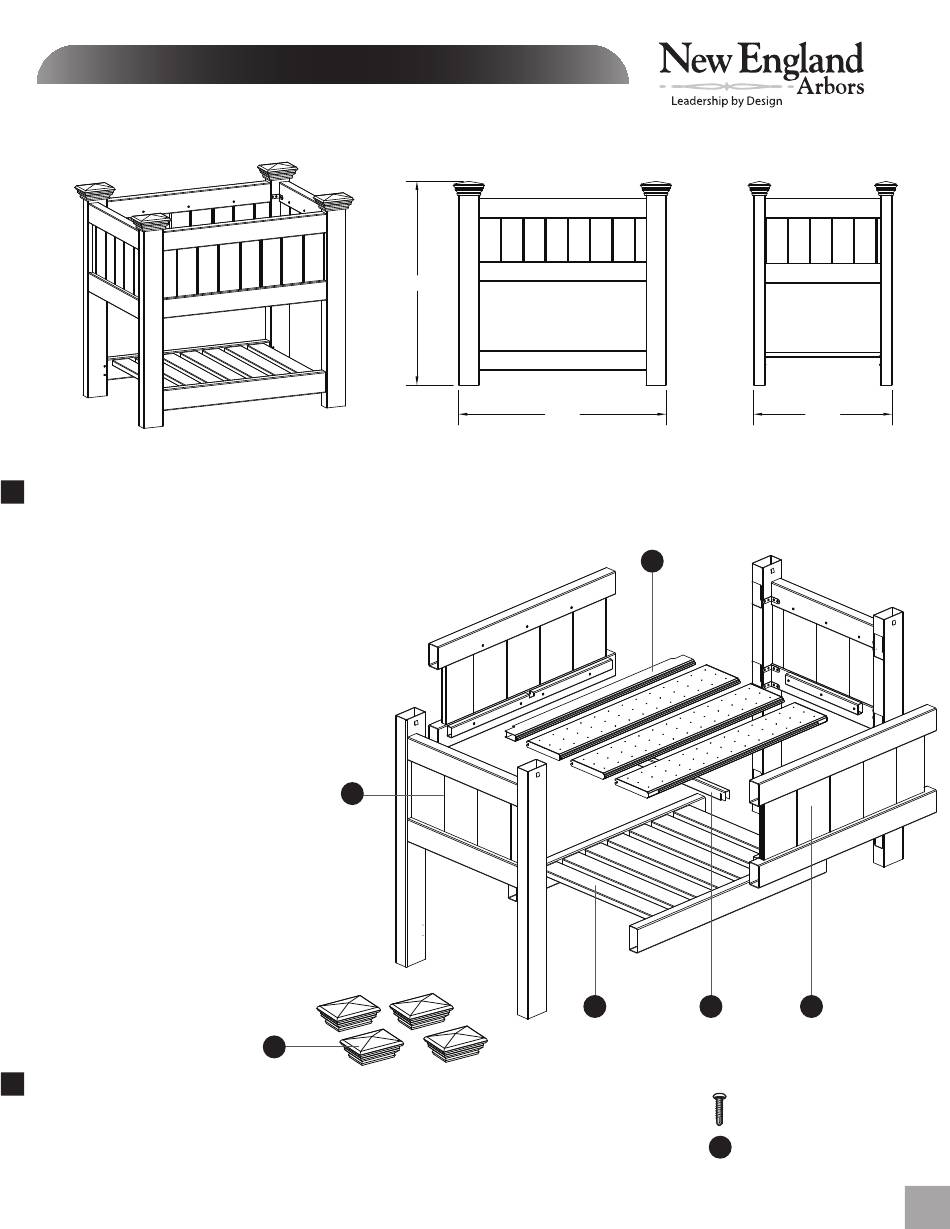

1. Pre-Assembled Side Wall Panels with Posts Connected (2) -
2. Floor Panels (4) -
14042
3. Floor Support (1) -
14043
4. Front and Back Wall Panels (2) -
5. Pre-assembled Shelf (1) -
Shelf Board 14045, Shelf Rail 14046
6. Post Caps (4) -
14047
7. 1 1/2" (38mm) Stainless Steel Screws (32) -
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 4'x 8' (1.2 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
35 3/8 in
(90 cm)
Planter Box Dimensions are 32"L x 20"W x 10"D (81 cm L x 51 cm W x 25 cm D)
14044
20031
1
6
36 in
(91 cm)
(± 3.7 cubic feet (0.1 cubic Meter) / 0.14 cubic yards / 105 litres)
14041
5
www.newenglandarbors.com
www.newenglandarbors.co.uk
24 in
(61 cm)
2
3
4
7
Not to Scale
Ver 2.3/082117
1
Advertisement
Table of Contents
Related Manuals for New England Arbors Bloomsbury
Summary of Contents for New England Arbors Bloomsbury
- Page 1 A S S E M B LY I N S T R U C T I O N S The Bloomsbury Raised Planter Box www.newenglandarbors.com www.newenglandarbors.co.uk 35 3/8 in (90 cm) 24 in 36 in (61 cm) (91 cm) Planter Box Dimensions are 32”L x 20”W x 10”D (81 cm L x 51 cm W x 25 cm D) Please read through before starting assembly.
- Page 2 The Bloomsbury Raised Planter Box S T E P O N E Align and insert pre-assembled bottom shelf into the routed holes. Do the same for the front and back panels as shown. Note: Only one side of the shelf rails will bottom out on the post.
- Page 3 The Bloomsbury Raised Planter Box S T E P O N E ( C O N T ’ D ) Fasten the top of the walls together using 8 of the screws provided into the 4 upper corner brackets as shown.
- Page 4 Pressure fit the Post Caps into place. Push firmly until they snap into place. NOTE: If you purchased the Bloomsbury Trellis, leave 2 Post Caps off one of the 36" (91 cm) sides to allow the trellis to be mounted.
