ESSENTIAL INDIVIDUAL COMPONENTS

IGNITION SWITCH

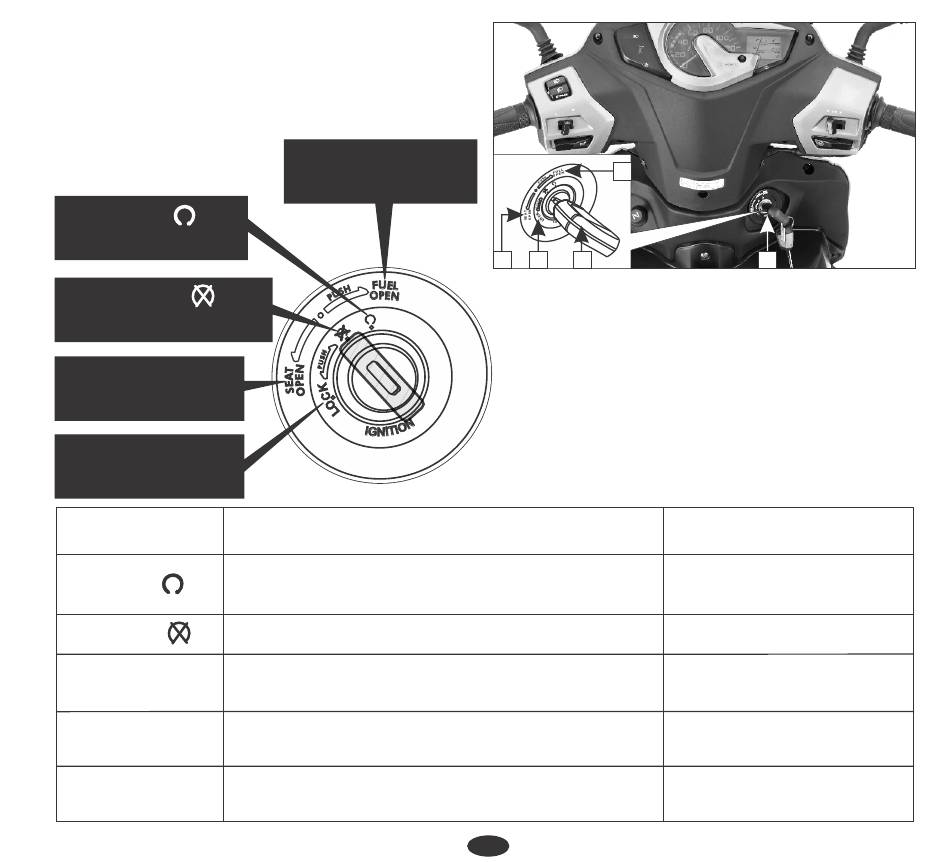

The ignition switch (1) is on the right side
below the steering.
"ON" ( )
Position
"OFF" ( )
Position/Lock Open
"SEAT OPEN"
Position
"LOCK" Position
Key Position
The engine can be started, turn signal lamps,
"ON" ( )
horn, stop lamp and fuel gauge can be operated
Engine cannot be started and cannot be operated
"OFF" ( )
Steering can be locked by pushing the key in
"LOCK"
and rotating it counterclockwise
Seat can be opened by rotating the key
"SEAT OPEN"
counterclockwise.
Fuel tank lid can be opened by pushing the key
"FUEL OPEN"
in and rotating it clockwise
"FUEL OPEN"
Position
Function
23
5
4 3 2
(1) Ignition switch
(2) Ignition key
(3) Steering lock position
(4) Seat open
(5) Fuel open
Key cannot be removed
Key can be removed
Key can be removed
Key can be removed
Key can be removed
1
Key removal
