Be sure to turn the ignition switch "OFF"
î
when replacing the bulb.
Do not use bulbs other than that specified.
î
After installing a new bulb, check that the
î
lamp operates properly.

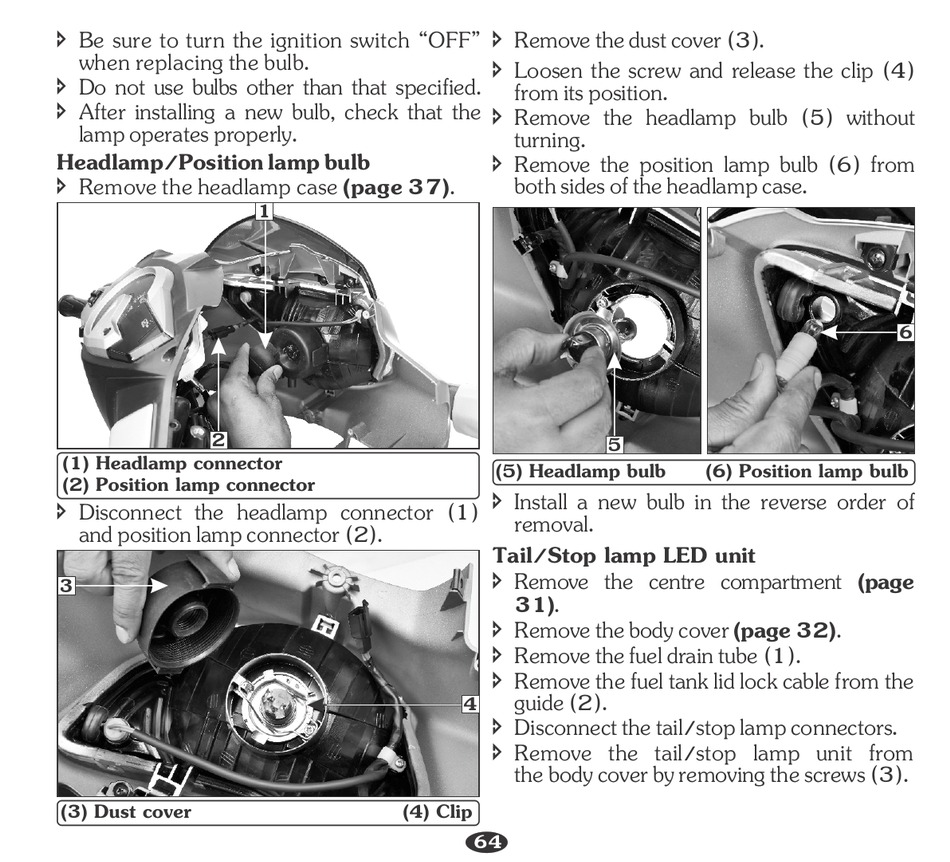

Headlamp/Position lamp bulb
Remove the headlamp case (page 37).
î
2
(1) Headlamp connector
(2) Position lamp connector
Disconnect the headlamp connector (1)
î
and position lamp connector (2).
3
(3) Dust cover
1
(4) Clip
Remove the dust cover (3).
î
Loosen the screw and release the clip (4)
î
from its position.
Remove the headlamp bulb (5) without
î
turning.
Remove the position lamp bulb (6) from
î
both sides of the headlamp case.
5
(5) Headlamp bulb
Install a new bulb in the reverse order of
î
removal.
Tail/Stop lamp LED unit
Remove the centre compartment (page
î
31).
Remove the body cover (page 32).
î
Remove the fuel drain tube (1).
î
Remove the fuel tank lid lock cable from the
î
guide (2).
4
Disconnect the tail/stop lamp connectors.
î
Remove the tail/stop lamp unit from
î
the body cover by removing the screws (3).
64
(6) Position lamp bulb
6
