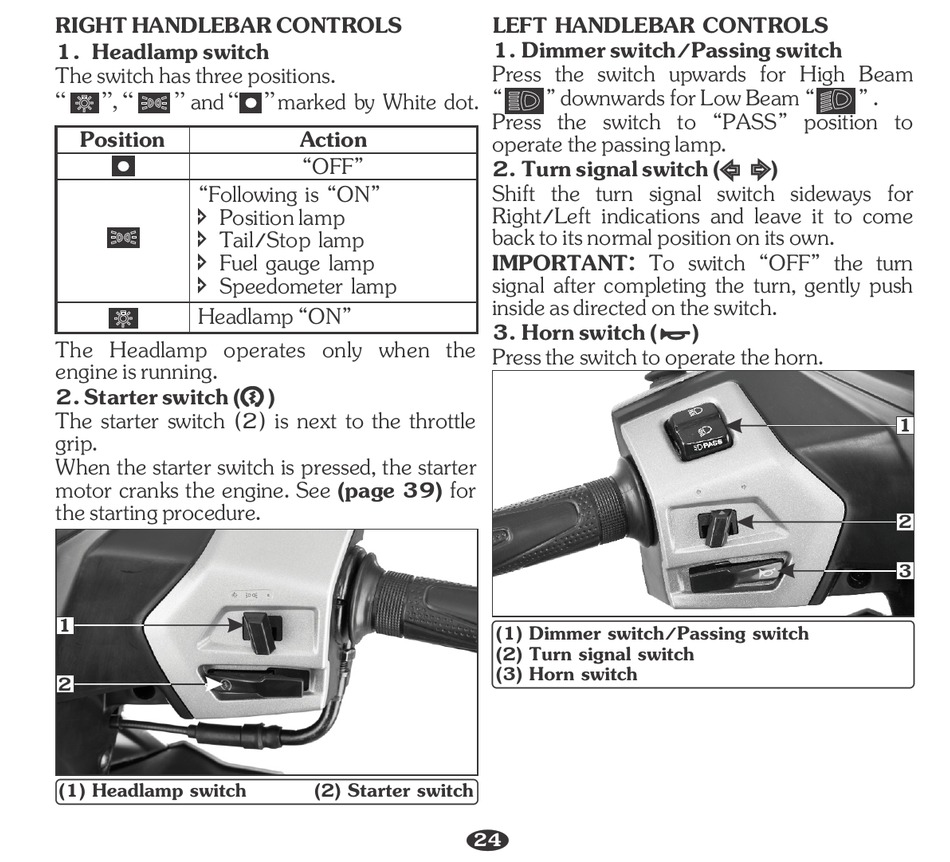

RIGHT HANDLEBAR CONTROLS

1. Headlamp switch
The switch has three positions.
and
Position
"Following is "ON"
Position lamp
î
Tail/Stop lamp
î
Fuel gauge lamp
î
Speedometer lamp
î
Headlamp "ON"
The Headlamp operates only when the
engine is running.
2. Starter switch ( )
The starter switch (2) is next to the throttle
grip.
When the starter switch is pressed, the starter
motor cranks the engine. See (page 39) for
the starting procedure.
1
2
(1) Headlamp switch
marked by White dot.
Action
"OFF"
(2) Starter switch

LEFT HANDLEBAR CONTROLS

1. Dimmer switch/Passing switch
Press the switch upwards for High Beam
" " downwards for Low Beam "
Press the switch to "PASS" position to
operate the passing lamp.
2. Turn signal switch (
Shift the turn signal switch sideways for
Right/Left indications and leave it to come
back to its normal position on its own.
IMPORTANT: To switch "OFF" the turn
signal after completing the turn, gently push
inside as directed on the switch.
3. Horn switch ( )
Press the switch to operate the horn.
(1) Dimmer switch/Passing switch
(2) Turn signal switch
(3) Horn switch
