Step 4 – Using External
Instructions to change to
Follow instructions below to use digital input for start command.
 Power down the drive, wait 5 min.

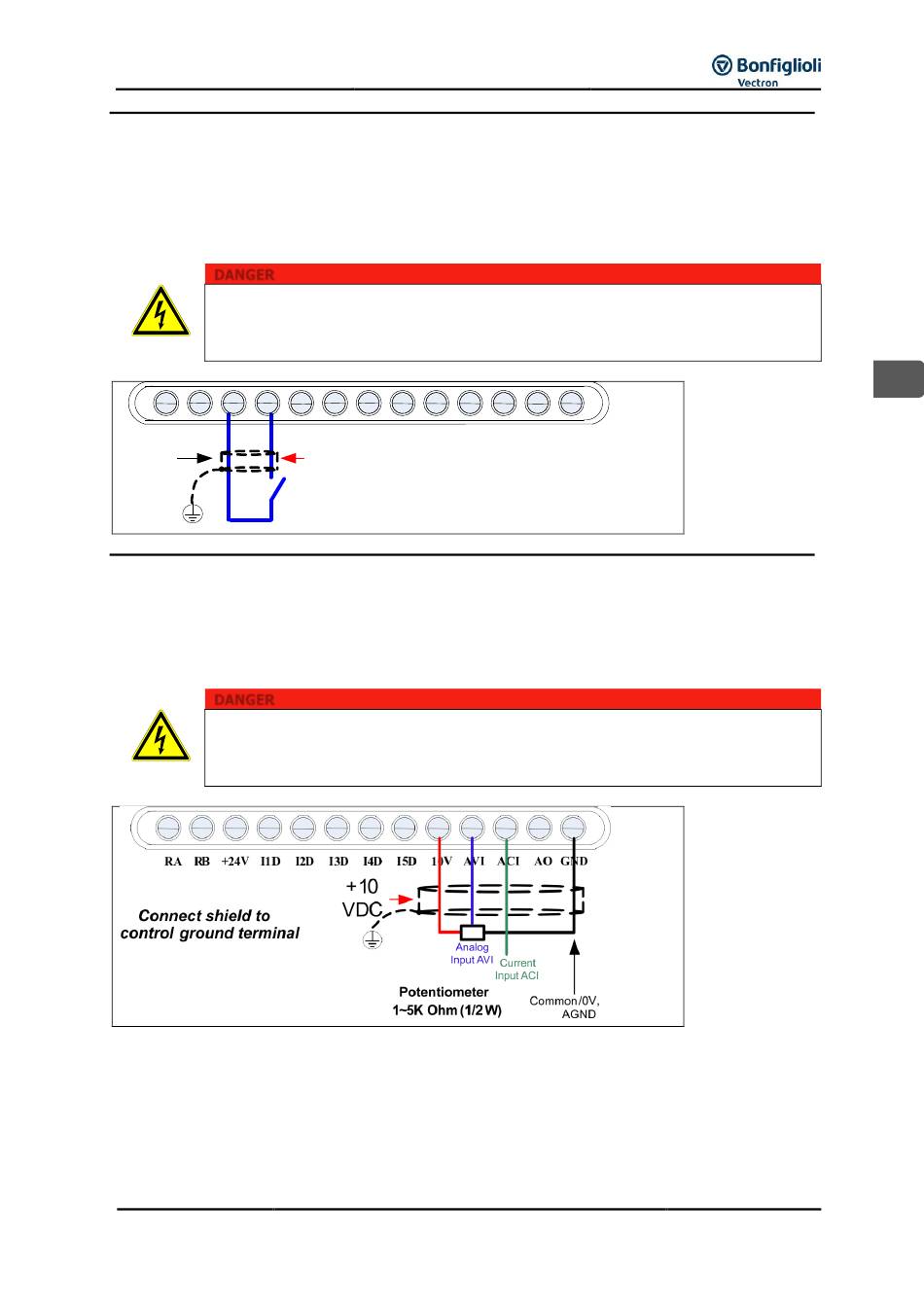

 Make the connections as shown below in Fig. 2a.
 Verify that all connections are secure and power-up the drive.
 Set Par. F_10 "Main Run Source Selection" = 1: "External Run/Stop"
DANGER
Risk of electric shock
Touching blank or not connected wires/cables will result in electric shock and physical injury including the risk
of death.
 Do not apply power until all connections are correct and secure and all protective covers are in place.
RA R B +24V I1D
Digital
Input
Common
Step 5 – Using an external
Follow instructions below to use External Analog Input as setpoint reference.

Power down the drive, wait 5 min.
 Make the connections as shown below in Fig. 2b.

Verify that all connections are secure, replace covers and power-up the drive.
 Set Par. F_11 "Main Frequency Source Selection" = 2: "External AVI Analog Signal Input"
DANGER
Risk of electric shock
Touching blank or not connected wires/cables will result in electric shock and physical injury including the risk
of death.
 Do not apply power until all connections are correct and secure and all protective covers are in place.
08/19
RUN/STOP
External Run/Stop
I2D I3D I4D I5D 10V AVI ACI
Forward FWD
Start / Stop
Switch
(Maintained)

Analog Input

for speed control
Quick Start Guide S2U IP20
AO GND
Fig. 2a
Fig.2b
