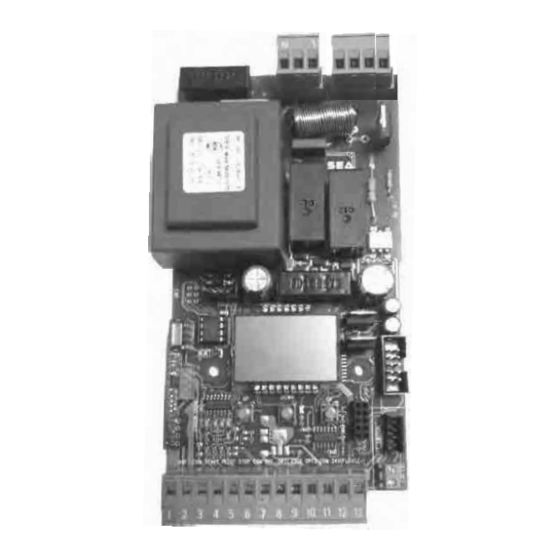

SLIDE DG R2F CONTROL UNIT FOR SLIDING GATES OR SINGLE LEAF SWING GATES SEA USA Inc. 10850 N.W. - 21st - unit 160 - Doral - MIAMI Florida (FL) - 33172 - USA Telephone : ++1-305.594.1151 ++1-305.594.7325 Toll free: 800.689.4716 www.sea-usa.com...
IMPORTANT SAFETY INFORMATION GENERAL SAFETY PRECAUTIONS The following precautions are an integral and essential part of the product and must be supplied to the user; Read them carefully as they contain important indications for the safe installation, use and maintenance. 1.
GENERAL SAFETY INFORMATION An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding.
Page 4
The installer shall follow the provided instructions thoroughly. SEA products must only be used to automate doors, gates and wings. Any initiative taken without SEA USA Inc. explicit authorization will preserve the manufacturer from whatsoever responsibility.
Page 5
NOTES: 1. The same type of device shall not be used for both entrapment protection means. Use of a single device to cover both the opening and closing directions is in accordance with the requirement; however, a single device is not required to cover both directions.
Page 7
1 - CONNECTIONS WARNING: CONNECT ALL DEVICES WHEN THE CONTROL UNIT IS SWITCHED-OFF 17 16 15 14 LIGHT MOP MN MCL ANT COM START PEDST STOP COM PH1 OPT1 EDGE OPT2 COM 24 (FL) (FL) ENCODER * 24V (red) Closing Limit Switch (yellow) Opening Limit Switch (green) Common (white) Closing Limit Switch (yellow)
Page 8
3 - CONNECTIONS ON CN1 3.1 - START (N.O.) On clamps 2 and 3 The automation can be opened or closed through an impulse transmitted to this input (via key button, keyboard, etc.). To connect other Start devices (for ex. the magnetic loop) refer to the respective instructions Note 1: For details on the logics that can be associated to the button, see chapter...
EXAMPLE OF 3.7 - 24V FLASHING LIGHT - MAX 3W LAMP AND On clamps 12 and 13 SAFETY EDGE It warns of the gate movement by performing 1 blink per CONNECTION second on opening, 2 blinks per second on closing and remaining on steady during pause.
3.11 - SAFETY LOOP EXAMPLE OF SAFETY LOOP CONNECTION Safety Exit Loop (Loop 1) Connection scheme of the C C2 1 reader loop detector 7 = Photocell 1 contact (N.C.) Safety Exit 6 = Common Loop 1 Loop1 Free Exit Loop (Loop 2) Connection scheme of the Free Exit 1 reader loop detector...
Page 11
4.2 - THREE-PHASE MODULE CONNECTION On the 17 16 15 14 3-MOTOR menu, LIGHT MOP MN MCL BIG 4000 THREE-PHASE «3 THREE-PHASE-BOLLARD» N N F COM OP. CL. THREE-PHASE SUPPLY 380V R (2T1) S (4T2) * T1 intervention threshold: T (6T3) 3,7A BIG 4000 THREE-PHASE THREE-PHASE...
Page 12
CONNECTIONS ON 6.1 - ENCODER CONNECTION The ENCODER on board can be connected on CN5. In case of non pre-wired Encoder use an appropriate adapter green or black respecting the cable colors white or blue OLD TYPE ENCODER BROWN - WHITE - GREEN brown or red NEW TYPE ENCODER RED - BLUE - BLACK...
4) For a correct operation of the limit switches there must be a correspondence between the direction of movement of the motors and the respective limit switches involved. 5) For SEA magnetic limit switches, set the menu 104-SELECT LIMIT SWITCH on «N.O.» 8 - RECEIVERS CONNECTIONS ON CNA AND CNS...
10 - DISPLAY AND PROGRAMMING WARNING! MAKE ALL DEVICES CONNECTIONS ON SWITCHED-OFF CONTROL UNIT BEFORE THE PARAMETERS CONFIGURATION THROUGH DISPLAY 10.1 - SWITCHING ON THE CONTROL UNIT When a new control unit is powered on, the display shows the software revision first and the INPUT STATUS after 5 seconds.
11 - BASIC MENU FUNCTIONS MENU MENU PRESS TO CONFIRM MOVE THROUGH ENGLISH AND RETURN TO THE LANGUAGE MAIN MENU DOWN Skip this step if no need Tx programming TO CONFIRM AND EXIT MENU MENU MENU MENU Press the TX PRESS MEMORIZED START...
Page 16
12 - INPUT STATUS CHECK AND MANAGEMENT The input status check menu is displayed at the start of the control unit (for more details see chapter 10). Each input corresponds to a fixed position on the display, according to the diagrams below Each input can be NORMALLY OPEN (N.O.) or NORMALLY CLOSED (N.C.) INPUT STATUS DIAGRAM MENU...
Page 17
12.2 - SLIDE DG R2F INPUT MANAGEMENT MENU Through this menu it is possible to activate or deactivate the inputs without repeating the self-learning MENU LANGUAGE MENU MENU BACK TO THE START ENABLED STARTING MENU MENU START MENU MENU BACK TO THE...
13 - WORKING TIMES SELF-LEARNING WARNING ! POTENTIALLY DANGEROUS PROCEDURE. TO BE PERFORMED EXCLUSIVELY BY SPECIALIZED INSTALLERS AND IN SAFETY CONDITIONS NOTE PRELIMINARI: - It is not necessary to jumper Limit switches, Photocells, Stop or Safety Edges inputs if not used - Check the correct operation of all accessories (Photocells, Push buttons etc.) 13.1 - QUICK START The electronic unit on board the SLIDING OPERATORS is already set by default on the respective sliding...
Page 19
13.3 - SELF-LEARNING WITH LIMIT-SWITCHES Working times self-learning through detection of the limit-switch points(with or without ENCODER) PRELIMINARY NOTE: Check on the INPUT STATUS menu that the correct limit switches are engaged for each direction of movement (see chapter 12) WORKING TIMES SELF-LEARNING: AFTER THE ABOVE-MENTIONED CHECKS, FOLLOW THE PROCEDURE ILLUSTRATED IN THE PARAGRAPH 13.2 NOTE 1: If a motor starts in closing, arrives up to the limit switch lever then it stops, it will be necessary to...
PRELIMINARY NOTES: 1) Once the password is enabled, the menu cannot be adjusted; 2) If You forgot the password, contact the SEA technical assistance; SEA will evaluate whether or not to provide the procedure for the control unit unlocking 3) Password CAN NOT be set through the JOLLY 3 programmer...
Page 21
16 - RECEIVERS AND REMOTE CONTROLS MAX NUMBER OF USERS SEA PLUG-IN RECEIVERS (see chapter 8) 16 USERS Without additional memory RF UNI 800 USERS With MEMO RF additional memory 100 USERS Fix Code RF UNI PG (Old Model - non-extractable memory)
Page 22
16.2 - REMOTE CONTROLS PROGRAMMING TABLE PROGRAMMING PRESS THE BUTTON TO BE STORED MENU MENU MENU MENU MENU MENU «START» COMMAND PRESS MUST ALWAYS BE STORED START BUTTON TRANSMITTERS LANGUAGE STORED ON THE TX PRESS THE BUTTON TO BE STORED PROGRAMMING OF MENU MENU...
Page 23
SLIDE DG R2F MENU FUNCTIONS TABLE MENU DESCRIPTION DEFAUL NOTE Italiano Italian English English Français French 1 LANGUAGE English Español Spanish Dutch Dutch Polish Polish Start Start Partial opening Partial opening Stop Stop Start To store a command for the electric brake...
SPECIAL MENU U P DOWN PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU SPECIAL MENU FUNCTIONS TABLE SLIDE DG R2F SP MENU DESCRIPTION DEFAULT NOTES Opening torque Motor 1: by increasing the...
Page 25
SP MENU DESCRIPTION DEFAULT NOTES OPENING TOLERANCE Adjust the tolerance between stop and obstacle MOTOR 1 on Motor 1 in opening CLOSING TOLERANCE Adjust the tolerance between stop and obstacle MOTOR 1 on Motor 1 in closing Opening and closing Allows the leaf to make an extra move at 80 PUSHOVER maximum torque to ensure the tightening...
Page 26
SP MENU DESCRIPTION DEFAULT NOTES Always AUX output always powered In cycle AUX output active only during cycle Opening AUX powered only during opening Closing AUX output powered only during closing 24V AUX In pause AUX output powered only during pause (OPT2 output) Always Autotest...
Page 27
SP MENU DESCRIPTION DEFAULT NOTES Opening and closing Active in opening and closing Opening SAFETY EDGE 1 Only opening Active only in opening DIRECTION Closing Only closing Active only in closing Automatic Limit-switch in automatic recognition 104 SELECT LIMIT SWITCH Only opening Limit-switch active in opening only Automatic...
Page 28
ALARMS The control unit advises about faults by a message on the display. The table below shows which faults are advised and what to do in the event of a malfunction. However, it is possible to read the last 10 fault warnings by accessing the 106-DIAGNOSTIC menu Note 1: To exit the alarms display press OK If the warning signal does not disappear, carry out all the checks required for that error or disconnect the...
TROUBLESHOOTING Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check the connections or the jumpers on the connections of Operator doesn’t respond to a) Check the connected N.C. contacts the safety edge or of the stop and of the photocell if connected any START impulse b) Burnt fuse b) Replace the burnt fuse on the control unit...
Page 30
Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check menu for encoder parameters "Encoder Par" shall be from a low value +/- 10 (gate completely closed) to "Encoder a) ENCODER is not working properly if It's tot"...
Page 31
PRICES: Prices are based on the Price List in force. Discounts and quotation from Sales Dep. and other selling branches must be approved by SEA. Prices are F.O.B SEA Warehouse in Miami and do not include shipments costs. SEA reserves the right to modify the price list at any time and provide notice to its sales network.
Page 32
SEA USA Inc. 10850 N.W. 21st - unit 160 - DORAL - MIAMI Florida (FL) 33172 Phone: ++1-305.594.1151 Toll Free: 800.689.4716 www.sea-usa.com sales@sea-usa.com...
