SEA SLIDE DG R2F Manual

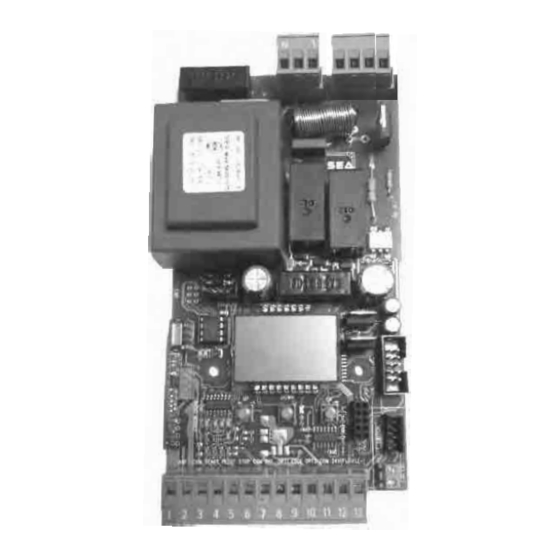

Electronic control unit 24v for sliding gates, swing gates, barriers and garage doors
Hide thumbs Also See for SLIDE DG R2F:

Advertisement

Quick Links

Download this manual
International registered trademark n. 2.777.971
SLIDE DG R2F
ELECTRONIC CONTROL UNIT 24V
FOR SLIDING GATES, SWING GATES, BARRIERS AND GARAGE DOORS
SEA USA Inc.
10850 N.W. - 21st unit 160 - Doral - Miami
Florida (FL) 33172 - USA
Telephone
: ++1-305.594.1151
-
++1-305.594.7325
Toll free:
800.689.4716
www.sea-usa.com
sales@sea-usa.com
67411700
REV. 03 - 02/2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLIDE DG R2F and is the answer not in the manual?

Questions and answers

Related Manuals for SEA SLIDE DG R2F

Summary of Contents for SEA SLIDE DG R2F

  • Page 1 International registered trademark n. 2.777.971 SLIDE DG R2F ELECTRONIC CONTROL UNIT 24V FOR SLIDING GATES, SWING GATES, BARRIERS AND GARAGE DOORS SEA USA Inc. 10850 N.W. - 21st unit 160 - Doral - Miami Florida (FL) 33172 - USA Telephone : ++1-305.594.1151...

  • Page 2: Important Safety Instructions

    International registered trademark n. 2.777.971 IMPORTANT SAFETY INFORMATION GENERAL SAFETY PRECAUTIONS The following precautions are an integral and essential part of the product and must be supplied to the user Read them carefully as they contain important indications for the safe installation, use and maintenance. 1.
  • Page 3 International registered trademark n. 2.777.971 GENERAL SAFETY INFORMATION An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding.
  • Page 4 The installer shall follow the provided instructions thoroughly. SEA products must only be used to automate doors, gates and wings. Any initiative taken without SEA USA Inc. explicit authorization will preserve the manufacturer from whatsoever responsibility.
  • Page 5 International registered trademark n. 2.777.971 5. The End of Type E. Type E (audible alarm) devices can no longer be used for entrapment protection. This change was made because the Type E device is really a warning device, not an entrapment-protection device. Also, all gate operator classes are now required to have an audio alarm that sounds when two successive obstructions are encountered via a contact-type system.
  • Page 6 International registered trademark n. 2.777.971 COMPONENTS TECHNICAL SPECIFICATIONS Control unit power supply: 230 Vac 50/60 Hz or 115Vac 50/60 Hz Absorption in stand by: 30 mA Environment temperature : - 4°F +176°F Specifications of external enclosure: 183 X 238 X 120 - Ip55 RECEIVER RX UNI MEMO...
  • Page 7 NO JUMPERS NEEDED ON N.C. CONTACTS WARNING: Automatic detection of not used N.C. inputs (Photocell, Limit Switch and Safety Edge) To reactivate an N.C. contact follow this procedure: MENU SEA SET On menu press the OK button for 5 seconds to enter the INPUT CHECK MENU where...
  • Page 8 International registered trademark n. 2.777.971 PRE SET PARAMETERS AND NO/NC CONTACTS DISPLAY INPUTS STATUS Partial Stop opening Start Limit Switch MENU opening - - - motor 1 - - - Limit Switch closing motor 1 Edge Photocell 1 OPT1 (undefined) MENU When not engaged or not wired N.C contacts...
  • Page 9 International registered trademark n. 2.777.971 START AND RO RA PROGRAMMING UTTONS DOWN MENU MENU LANGUAGE ENGLIS To exit Skip this step if you do not want to program a transmitter Press the MENU MENU MENU MENU button of the PRESS TRANSMITTERS STORED START...
  • Page 10 SLIDE DG R2F MENU FUNCTIONS TABLE MENU DESCRIPTION DEFAULT VALUE Italiano Italian English English 1 LANGUAGE Français English French Español Spanish Dutch Dutch Start Start Partial opening Partial opening Stop Stop Storing of a command for unlocking the electric Start...
  • Page 11 PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU SPECIAL MENU FUNCTIONS TABLE SLIDE DG R2F For entering into the special menu move on one of the menu and press the UP and DOWN buttons at the same time for 5 seconds...
  • Page 12 MENU SP DESCRIPTION DEFAULT VALUE Allows the repetition of the pushover function at 81 PERIODICAL PUSHOVER a distance of time adjustable from 0 to 8 hours at hourly intervals Disabled 82 MOTOR RELEASE Adjustable from 1 to 3 84 BRAKE 100% Adjusts the braking on the limit switches Only closing...
  • Page 13 MENU SP DESCRIPTION DEFAULT VALUE activated, photocell reverses Closing movement in closing; during the pause, it prevents the reclosing If activated, it blocks the movement in opening; Opening when released, the opening movement continues If the photocell is activated before the Start input, the Start will be ignored.
  • Page 14 International registered trademark n. 2.777.971 SELF-LEARNING It is possible to choose between 3 self-learning ways according to the features of the installation: AUTOMATIC SELF-LEARNIG: A - LIMIT-SWITCH MENU MENU B - ENCODER PROGRAM- MING MANUAL SELF-LEARNING C - IMPULSES WARNING: Make sure that the gate performs the following cycle for all types of self-learning: CLOSE - OPEN - CLOSE;...
  • Page 15 International registered trademark n. 2.777.971 MANUAL SELF-LEARNING C) THROUGH IMPULSES WARNING: The following procedure is potentially dangerous and should only be performed by qualified people and in safety conditions Switch-off the main power, release the operator and manually position the gate at mid-travel. Then restore the mechanical lock and the power supply.

  • Page 16: Logic Functions

    International registered trademark n. 2.777.971 LOGIC FUNCTIONS With UP or To confirm and MENU Skip this step if you want to work LOGIC DOWN choose return in semi-automatic logic the desired logic to main menu ONLY AFTER THE SELF-LEARNING OF WORKING TIME IN AUTOMATIC LOGIC, THEN YOU CAN CHANGE LOGICS INTO: A) AUTOMATIC A START impulse opens the gate.
  • Page 17 If the password has been forgotten, the only way to unlock the control unit is to contact the SEA technical assistance, which will assess whether to provide the procedure to unlock the control unit or not.
  • Page 18 5 seconds, you can enter the CHECK MENU, where it is possible to check the operating status of all inputs. MENU FUNCTION TABLE CHECK SLIDE DG R2F INPUTS To access the Menu for input check keep pressed OK for about 5 seconds.
  • Page 19 International registered trademark n. 2.777.971 RADIO TRANSMITTER SELF LEARNING WITH «UNI» RECEIVER ON CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit. With RF UNI and RF UNI PG module it will be possible to use both Coccinella Roll Plus transmitters and radio transmitters with fixed code.
  • Page 20 International registered trademark n. 2.777.971 RADIO TRANSMITTER SELF LEARNING WITH «RF FIX» RECEIVER ON CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CNS connector (if available) with turned off control unit. With the RF FIX module it will be possible to use only radio controls with fixed code.
  • Page 21 International registered trademark n. 2.777.971 START ARTIAL O ENIN START STO CONNECTIONS START N.O. 3 Function 1 (STANDARD): an impulse given to this contact opens and closes the automation according to the selected logic Function 2 (TIMER): holding START the TIMER function is activated, when released, the operator repeats the pause time set then closes.
  • Page 22 International registered trademark n. 2.777.971 SA ETY ED E AND LAS IN CONNECTIONS SAFETY EDGE Safety edge ED E can be connected between the contacts of CN 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 11 12 13 When pressed, the edge opens the contact causing a partial reversing of the gate movement as in closing as...
  • Page 23 T REE OD LE CONNECTION Power suppl connector Motor wiring connector for control unit (230V) 1 - 2 for control unit (230V) 23001245 (SLIDE DG R2F) Terminals 230 23001245 17 16 15 14 (SLIDE DG R2F) Three-phase Thermal switch limit 3,7A...

  • Page 24: Alarm Description

    International registered trademark n. 2.777.971 ALARM DESCRIPTION Kind of alarm Solutions Signals Make sure there are no short circuits on the motor or on the control unit Make sure there are no short circuits on the wiring or on the control unit and no overloads Make sure there are no short circuits on the wiring or on the control unit and no overloads Check the network or the F2 fuse...

  • Page 25: Troubleshooting

    International registered trademark n. 2.777.971 TROUBLE SHOOTING Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check the connections or the jumpers on the connections of Operator doesn’t respond to a) Check the connected N.C. contacts the safety edge or of the stop and of the photocell if connected any START impulse b) Burnt fuse...
  • Page 26 International registered trademark n. 2.777.971 Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check menu for encoder parameters "Encoder Par" shall be from a low value +/- 10 (gate completely closed) to "Encoder a) ENCODER is not working properly if It's tot"...
  • Page 27 Materials handling must be made with appropriate vehicles. WARRANTY LIMITS For the guarantee see the sales conditions on the official SEA price list. SEA reserves the right to make any required modification or change to the products and/or to this manual without any advanced notice obligation.
  • Page 28 PAYMENT: Method of payments and terms are notified by SEA and displayed on the commercial invoice. DELIVERY: The delivery time on the invoice is not binding and represents an estimated delivery. Shipments costs will be charged to the buyer and SEA is not responsible for delays and/or damages occurred to the products during shipment.
  • Page 29 International registered trademark n. 2.777.971 NOTES...
  • Page 30 International registered trademark n. 2.777.971 NOTES...
  • Page 32 International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
