SEA SLIDE NEW MAG Instruction Manual

Control board
Hide thumbs
Table of Contents

Advertisement

Quick Links

International registered trademark n. 2.777.971

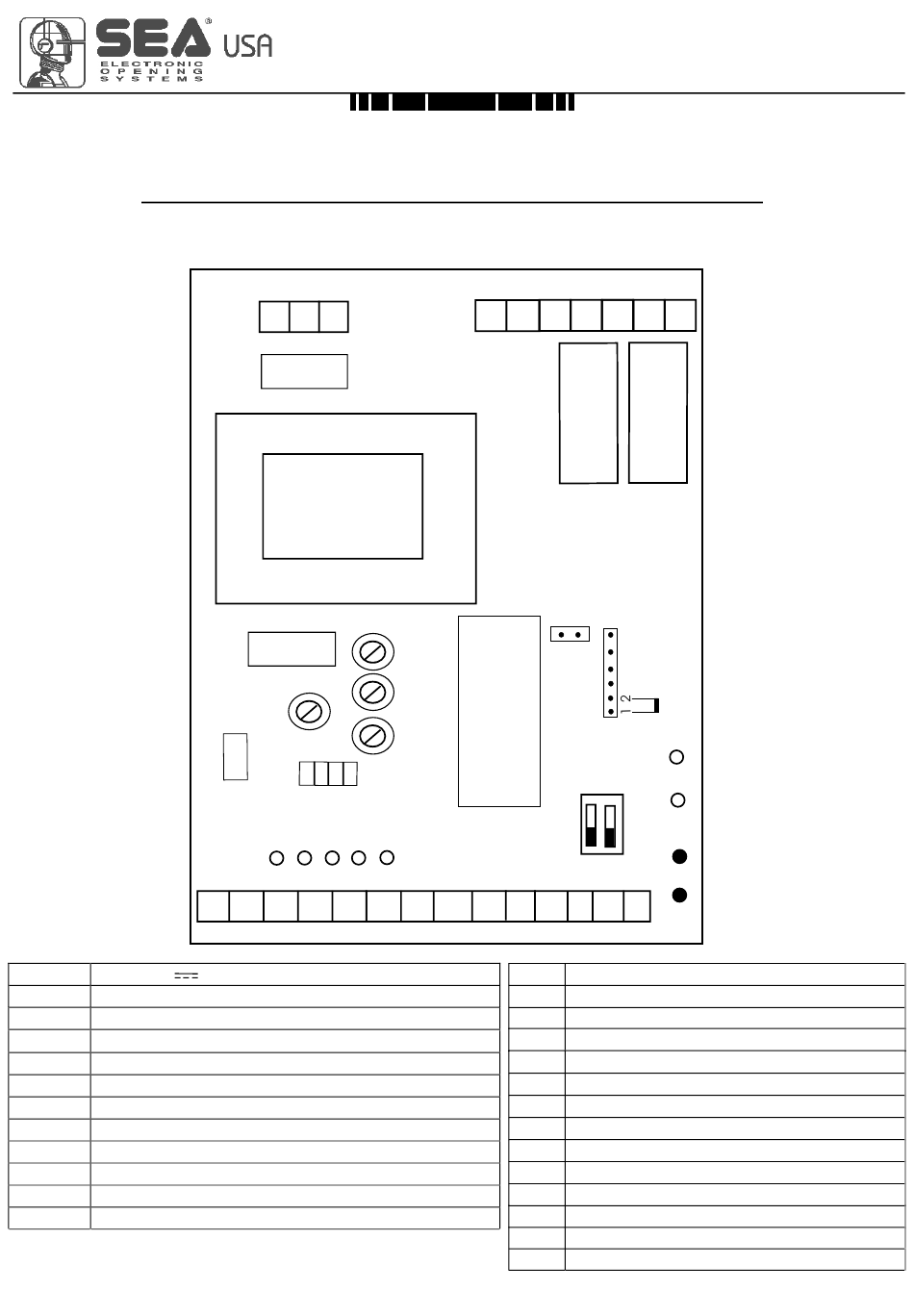

SLIDE NEW MAG CONTROL BOARD
FUSE 1
Fuse 24V
FUSE 2
Fuse 115V~ (10A)
TR1
Automatic closing adjustment (0 s - 4 min.)
TR2
Motor torque adjustment
TR3
Ped. Opening time adjustment
TR4
Brake adjustment
SW.1
Logic
SW.2
Closing with photocell
RL 1
Motor direction relay
RL 2
Motor enabling relay
CN 1
Power supply 115V~ connector
CN 2
Motor connector - flashing light/courtesy light
Cod. 67411660
SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172
CN1
1
2
FUSE 2
FUSE 1
TR1
2 3 4
1
1
CMR
CN E
Ld7 Ld6 Ld5 Ld4 Ld3
2
3
5
1
4
(2A)
English
2
1
TR2
TR3
U 1
TR4
CN3
7
8
9 10 11
6
CN 3
CMR
CN E
LD1
LD2
LD3
LD4
LD5
LD6
LD7
JP1
U1
P1
P2
Rev. 00 - 07/2013
Phone:++1-305.594.1151
Fax: ++1-305.594.7325
Toll Free: 800.689.4716
CN2
3
4
5
5
3
RL2
RL1
JP1
Ld2
Ld1
SW
1 2
P2
P1
12 13 14
Accessories connector
Radio receiver connector
Encoder connector
Times/remote controls
Times/remote controls
Limit switch 1LED
Limit switch 2 LED
Start LED
Opening safety LED
Photocell LED
Encoder activation
Micro-controller
Programming buttons
Programming buttons
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLIDE NEW MAG and is the answer not in the manual?

Questions and answers

Related Manuals for SEA SLIDE NEW MAG

Summary of Contents for SEA SLIDE NEW MAG

  • Page 1 10850 N.W. 21st unit 160 DORAL MIAMI Fax: ++1-305.594.7325 Florida (FL) 33172 Toll Free: 800.689.4716 International registered trademark n. 2.777.971 English SLIDE NEW MAG CONTROL BOARD FUSE 2 FUSE 1 2 3 4 CN E Ld7 Ld6 Ld5 Ld4 Ld3...

  • Page 2: Electric Connections

    International registered trademark n. 2.777.971 English ELECTRIC CONNECTIONS Note: 12 13 14 2 3 4 5 6 7 8 9 10 11 The open collector pilotes a flash led. CN 1 CN E Common POWER SUPPLY Flashing lamp Data motor Brown Green 115V...

  • Page 3: Dip Switches Setting

    International registered trademark n. 2.777.971 English TRIMMER SETTINGS TR1. Trimmer: Automatic reclosing time (0:4 min.) It allows to set the pausing time from 0 to 4 min. With trimmer on 0 the logic will be semi-automatic, turning the trimmer clockwise the logic becomes automatic. NOTICE: TURN THE TRIMMER...
  • Page 4 International registered trademark n. 2.777.971 English WORKING LOGICS DESCRIPTION Logic with automatic reclosure from 10 seconds to 4 minutes (Trimmer TR1 turned clockwise ): A start impulse opens the gate, a start impulse in opening is not accepted, a start impulse during the pausing time closes the gate, a start impulse in closing reopens the gate.
  • Page 5 International registered trademark n. 2.777.971 English RADIO TRANSMITTERS PROGRAMMING WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit. (The control unit automatically recognizes if the receiver is a RF, RF Roll, RF Roll Plus or RF UNI module).
  • Page 6 Note: Use “cable clips” and/or “duct/box pipes” fitting close to the control panel box so to protect the interconnection cables against pulling efforts. SPARE PARTS To obtain spare parts contact: SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 E-mail: sales@sea-usa.com INTENDED USE The SLIDE electronic control unit has been designed to be solely used as control unit for the automation of sliding gates.
  • Page 7 SEA USA Inc. Phone:++1-305.594.1151 10850 N.W. 21st unit 160 DORAL MIAMI Fax: ++1-305.594.7325 Florida (FL) 33172 Toll Free: 800.689.4716 International registered trademark n. 2.777.971 Español APARATO ELECTRÓNICO SLIDE MAG FUSE 2 FUSE 1 2 3 4 CN E Ld7 Ld6 Ld5 Ld4 Ld3...

  • Page 8: Conexiones Electricas

    International registered trademark n. 2.777.971 Español CONEXIONES ELECTRICAS 2 3 4 5 6 7 8 9 10 11 12 13 14 Nota: La salida “open collector” pilotará una bombilla Flash led. CN 1 CN E ALIMENTACION Común Luz intermitente 115V motor Datos Marron...
  • Page 9 International registered trademark n. 2.777.971 Español REGULACION TRIMMER Y DIP SWITCHES TR1. Trimmer Tiempo de cierre automático (0:4 min.) Este Trimmer permite la regulación del tiempo de pausa en un intervalo que puede asumir todos los valores incluidos entre 0 s y NOTA: ROTANDO LOS 4 min.
  • Page 10 El Encoder permite de conseguir la inversión del movimiento sobre obstáculo. En caso de obstáculo sea en cierre que abertura hay la inversión total del movimiento. Al start siguiente la automación saldrá en la dirección opuesta a aquel en que ha notado el obstáculo. Si en lógica automatica la cancela intenta partir para 3 veces a la cuarta ves quedará...
  • Page 11 Con el módulo RF Roll o RF Roll Plus será posible utilizar solo emisores Mariquita Roll o Mariquita Roll Plus o bien Smart Dual Roll o Smart Dual Roll Plus. Con módulo RF UN será posible utilizar sea radiocomandos de la serie Roll Plus como radiocomandos a código fijo. El primer radiocomando memorizado determinará la tipología de los restantes radiocomandos.

  • Page 12: Condiciones De Garantia

    CONDICIONES DE GARANTIA Por la garantía se vean las Condiciones de venta indicadas en el catálogo oficial SEA. N.B. EL FABRICANTE NO PUEDE SER CONSIDERADO RESPONSABLE POR EVENTUALES DAÑOS ACARREADOS POR USO IMPROPIO, ERRONEO Y IRRAZONABLE.
  • Page 13 International registered trademark n. 2.777.971 Details General An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding.

  • Page 14: Important Safety Instructions

    International registered trademark n. 2.777.971 g) The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start. h) A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible. i) For gate operators utilizing a non-contact sensor: 1) See instructions on the placement of non-contact sensors for each Type of application, 2) Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the gate is...
  • Page 16 ® International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
