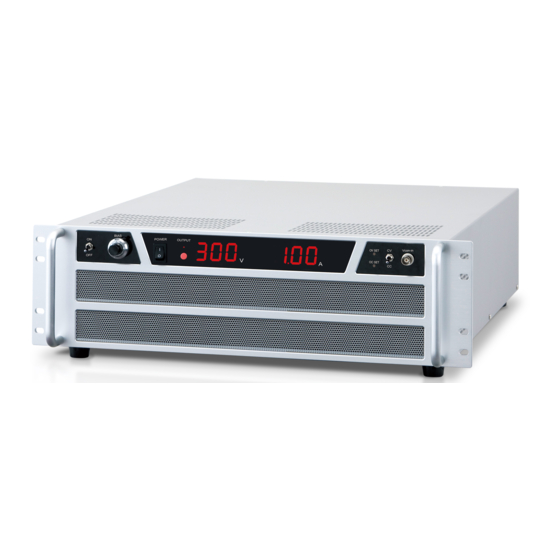

High Speed Bi-polar Power Supply
DOP Series
NEW
Four-quadrant
fast response
bi-polar power supply
Max. output voltage : ±5 to ±300 V
DOP
series
Max. output current : ±1 to ±120 A
Max. output power : 150 W to 2 kW
Broad bandwidth : DC to 30 kHz
Available for expanding to 6 kW with master-slave connection
www.matsusada.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Matsusada DOP Series
Summary of Contents for Matsusada DOP Series
- Page 1 High Speed Bi-polar Power Supply DOP Series Four-quadrant fast response bi-polar power supply Max. output voltage : ±5 to ±300 V series Max. output current : ±1 to ±120 A Max. output power : 150 W to 2 kW Broad bandwidth : DC to 30 kHz Available for expanding to 6 kW with master-slave connection www.matsusada.com...
- Page 2 DOP series is four-quadrant bi-polar power supply which source and sink electric power. They can be used in 2 modes of a constant voltage (CV) or a constant current (CC). The weight is half of the conventional units by adopting the aluminum frame.
- Page 3 Lineup Models with voltage, current or frequencies not listed here are also available. Please contact the nearest sales office. Frequency Weight Output voltage Output current Dimensions Model Output power （⇒P.6 ・ P.7） response (-3 dB) kg (approx.) (rms value) (rms value) ±30 A (21 A) 150 W DOP5-30...
-
Page 4: Specifications
LCc option (output current limitter) enable to control the output in 0 to approx. 110% range. High speed over current protection DOP series is provided with 2 types of over current protections, high speed over current protection to limit the pulse current, and standard over current protection to limit the static current. - Page 5 Options … No protection against blackout … Floating ground (Withstand voltage 200 Vdc) … -LMs ( ) Master-slave control* … -LPr rms display … -LVc Output voltage limit Variable from 0 to approx. 110% with the dial on the front panel …...
- Page 6 Functions / Dimensions inch(mm) 3 4 5 6 10 11 BIAS HIGH SPEED BI-POLAR POWER SUPPLY OV SET Vcon-in Model OC SET 18.98 5.24 2.25 3.94 150 W P2 P1 (133) (57.15) (100) (482) (except DOP5-30) 5.24 2.25 3.94 21.65 300 W, 350 W (133) (57.15)
- Page 7 7 8 9 3 4 5 7 8 9 BIAS BIAS HIGH SPEED BI-POLAR POWER SUPPLY HIGH SPEED BI-POLAR POWER SUPPLY OV SET Vcon-in OV SET Vcon-in OC SET OC SET 2.25 3.94 2.25 3.94 (57.15) (100) (57.15) (100) 10.47 10.47 (266) (266)
- Page 8 The use under such environment is not covered by this warranty and may require additional design and manufacturing processes. No modification or supplement of this warranty shall be binding unless in writing and signed by a duly authorized officer of Matsusada. Matsusada reserves the right to make any changes in the contents of catalogs or specifica- tions at any time without advance notice.
