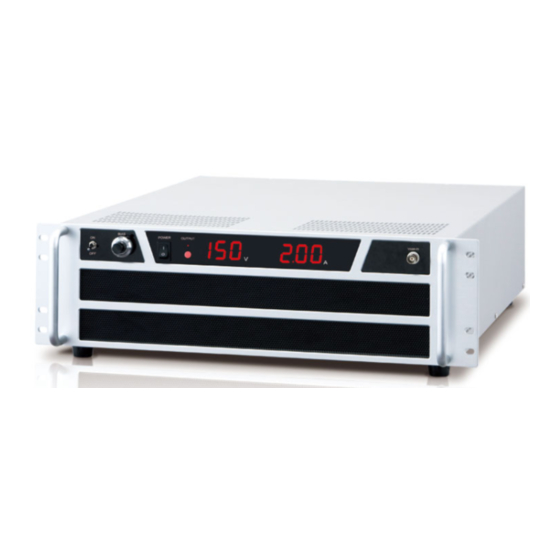

Ultra High Speed Response
Four-Quadrant Bipolar Power Supplies
Wonder Broadband/High Speed Response of DC to MAX. 1MHz
The max. current can be outputted also at the time of DC output
The option which can switch output range is available
DOA
DOA75-1 : ±75V/ 75W/DC to 1MHz
DOA75-2 : ±75V/150W/DC to 1MHz
DOA75-4 : ±75V/300W/DC to 1MHz
DOA150-1: ±150V/150W/DC to 500kHz
DOA150-2: ±150V/300W/DC to 500kHz
www.matsusada.com
1MHz Ultra High Speed Response
Bipolar Power Supplies
series
DOA Series
NEW
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Matsusada DOA Series
Summary of Contents for Matsusada DOA Series
- Page 1 1MHz Ultra High Speed Response Bipolar Power Supplies DOA Series Ultra High Speed Response Four-Quadrant Bipolar Power Supplies series DOA75-1 : ±75V/ 75W/DC to 1MHz DOA75-2 : ±75V/150W/DC to 1MHz DOA75-4 : ±75V/300W/DC to 1MHz DOA150-1: ±150V/150W/DC to 500kHz DOA150-2: ±150V/300W/DC to 500kHz Wonder Broadband/High Speed Response of DC to MAX.
- Page 2 DC to 1MHz Maximum and four-quadrant output. DOA series are four-quadrant bipolar power supplies realized broadband and ultra high speed response of DC to 1 MHz maximum. They are best fitted to transient response tests using effectively this feature of massive high speed response.
- Page 3 Lineup Each model will be brought to the market sequentially. Please confirm our sales staff the detail period of sale for models you want prior to order. Frequency Bandwidth (-3 dB) Input Current Maximum Maximum Maximum Weight Model Input Voltage (approx.) output voltage output current...
- Page 4 Dimensions inch (mm)/Explanation of Function Front Panel BIAS HIGH SPEED BI-POLAR POWER SUPPLY Vcon-in ON/OFF switch of Bias 5.24 3.94 2.25 Setting dial of Bias (133) (100) (57.15) Power ON/OFF switch Output sign LED Output ON/OFF switch 0.59 Voltage meter 18.31(465) (15) Current meter...
- Page 5 About protection functions Overvoltage Protection (O.V.P) Overcurrent Protection (O.C.P) This unit is equipped overvoltage protection and output voltage is This unit is equipped overcurrent protection and output current is limited about 110% of rating and the load is protected at abnormal. limited about 110% of rating and the power supply and the load are protected at overload.
- Page 6 Options …Power Failure Protection is not equipped This knob is attached on the -LVs …The output range is shifted. front panel. ●Shifting following 3 ranges is possible for ±75V output models. L -125 V to +25 V M -75 V to +75 V H -25 V to +125 V ●Shifting following 3 ranges is possible for ±150V output models.
- Page 7 Introduction of Related Product Please inquire to our sales branch nearest for you about the detail of products. Integrated Function Generator Type Four-quadrant Bipolar Power Supplies DOPF series are four-quadrant bipolar power supplies improved spectacularly Output Voltage : ±20 V to ±300 V DOPF Output Current : 150 W to 2 kW in their usability by being installed the function generator.
- Page 8 The use under such environment is not covered by this warranty and may require additional design and manufacturing processes. No modification or supplement of this warranty shall be binding unless in writing and signed by a duly authorized officer of Matsusada. Matsusada reserves the right to make any changes in the contents of catalogs or specifica- tions at any time without advance notice.
