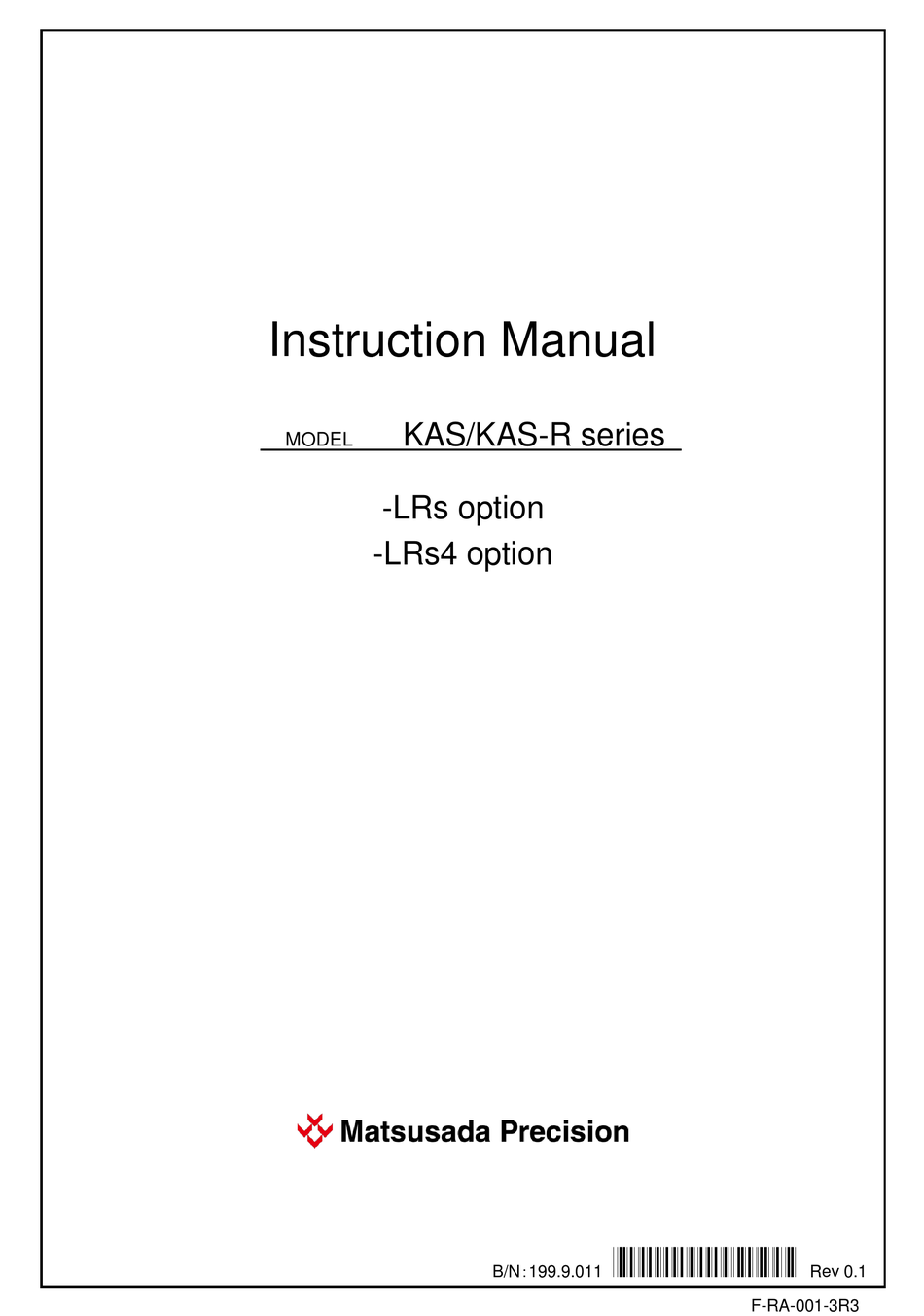

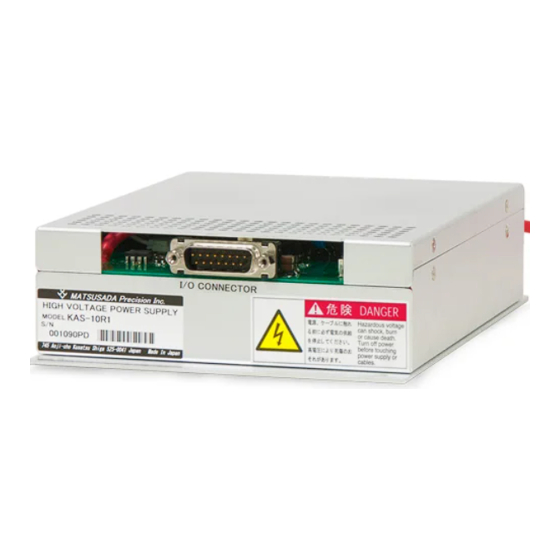

- Page 1 Instruction Manual KAS/KAS-R series MODEL -LRs option -LRs4 option *199.9.011* B/N：199.9.011 Rev 0.1 F-RA-001-3R3...
- Page 2 ◆ No patent liability is assumed with respect to the use of the information contained herein. Moreover, because Matsusada Precision is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice.
-
Page 3: Table Of Contents
3-3 Connection Condition for Communication Option Connector ..............4 3-4 Setting Unit Number ........................... 4 4 Digital Operation Check ............................ 5 4-1 -LRs/-LRs4 Option ............................5 5 Matsusada Precision Original Commands ......................6 5-1 Command Format ............................6 5-2 Multi-Command ............................6 5-3 Command Response String ........................7 5-4 Characters used for Commands ........................ -
Page 5: Overview
1 Overview 1 Overview 1-1 Overview Setting output voltage Setting output ON/OFF Measuring output voltage/current 1-2 General Information <Accessories> ☐ Communication option connector: 1 pc KAS/KAS-R series, -LRs/-LRs4 option... -
Page 6: External View
2 External View 2 External View 2-1 Rear Panel Communication option connector KAS/KAS-R series, -LRs/-LRs4 option... -
Page 7: Setting Functions
3 Setting Functions 3 Setting Functions 3-1 Communication Protocol Baud rate Asynchronous 9,600 [bps] (Fixed) Character length 8 [bits] Stop bit 1 [bit] Parity None Flow control None The delimiter is CR (0D ) and fixed. For -LRs4 option, it will be a two-wire transmission (half-duplex). 3-2 Communication Option Connector Pin Assignment (1) (2) (5) (6) -
Page 8: Connection Condition For Communication Option Connector
3 Setting Functions 3-3 Connection Condition for Communication Option Connector In order to connect the connection option connector, use the following connector supplied. Communication option connector: DFMC 1,5/4-ST-3,5-1790124 for printed circuit board produced by PHOENIX CONTACT In order to connect the communication option connector, use a cable compatible with the following terminal connection standards. -
Page 9: Digital Operation Check
4 Digital Operation Check 4 Digital Operation Check 4-1 -LRs/-LRs4 Option It is controlled over RS-232C/RS-485. Performing the following steps will output the voltage from the power supply units. Never connect any "load" to the output until the "operation check" ends. （1）... -
Page 10: Matsusada Precision Original Commands
5 Matsusada Precision Original Commandｓ 5 Matsusada Precision Original Commands 5-1 Command Format (e.g.) To set the output voltage of Unit 1 to 1kV, write the following. ○○ VSET (1) Delimiter (2) Parameter (3) Command (4) Unit No. (1) Enter the delimiter. -
Page 11: Command Response String
5 Matsusada Precision Original Commandｓ 5-3 Command Response String A response character string and the following delimiter are returned when a read command is transmitted. RS-232C/RS-485 CR (0D When a command requesting no response is transmitted, nothing is returned. -
Page 12: Command List
5 Matsusada Precision Original Commandｓ 5-5 Command List Table: Command list Classification Command Function Page Output Sets output voltage value. (voltage value Voltage VSET value mode) Output Sets ON/OFF of output. Setting Sets remote mode. Local/Remote Sets local mode. Unit UNIT Sets Unit Number. -
Page 13: Command Descriptions
5 Matsusada Precision Original Commandｓ 5-6 Command Descriptions VSET command Set the output voltage value. Range 0 to the rated voltage value Resolution Refer to [5-7 Resolution of Command Setting and Return Values]. Unit VSET 12.34 Format ex. ⇒ Set 12.34kV to the output voltage. - Page 14 5 Matsusada Precision Original Commandｓ POL command Set P or N of the polarity. Range POL P Format ex. POL N Initial value POL P In response to “POL?”, it returns “POL=P” or “POL=N”. Query ・ This supports "Multi-command". Remarks ・...
-
Page 15: Resolution Of Command Setting Value And Return Value
5 Matsusada Precision Original Commandｓ 5-7 Resolution of Command Setting Value and Return Value Command Rated value Minimum value 2000kV or more 200kV or more to less than 0.1kV 2000kV 20kV or more to less than VSET 0.01kV 200kV VGET 2 kV or more to less than 0.001kV...
