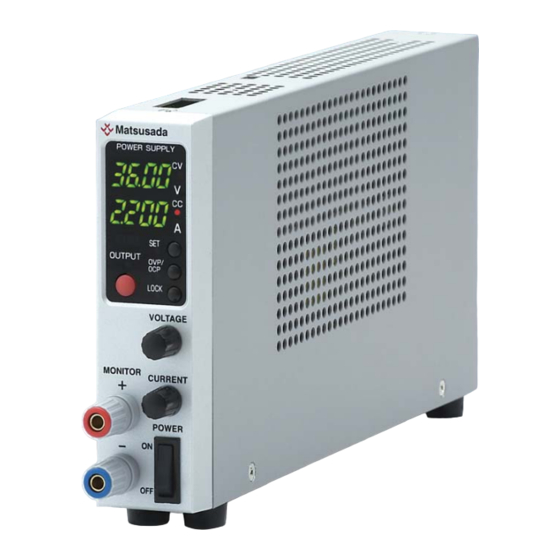

- Page 1 Ultra compact/Bench-top power supply R4K-80 Series Ultra Slim DC Power Supply Width : Only 1.38” / Output Power : 80W R4K-80 series 16V to 320V / 0.5A to 10A www.matsusada.com www.matsusada-us.com...
- Page 2 Ul tra S lim DC Power Sup pli es Ultra Slim Sophisticated Bench-top Power Supply R4k-80 series is higher performance and next generation model of existing RK-80 series DC variable power supply, which has been receiving good reputation for its innovative compact size and variable range feature.
- Page 3 80 Ｌ For wider output range Compact and light weight space 4 different models with various R4K-80L:16V/10A R4K-80M:110V/1.3A saving design output voltages 80Ｍ 80Ｈ R4K-80:36V/5A R4K-80H:320V/0.5A Unique low noise power Multiple units operation with Power factor correction and conversion technology master/slave and digital universal input for research application...
- Page 4 For more convenient operation Multi Setting Function Delay Trigger Function Function to memorize 3 different voltage and Function to output ON/OFF of total 32 units from one master unit. current settings in addition to standard preset (when master/slave*) function. It is possible to delay the ON/OFF time, and simultaneous ON/OFF No need to adjust the output when different setting is possible as well.
-
Page 5: Digital Interface
Digital Interface Various Digital Control Functions Enable digital control via GPIB/ RS-232C/ RS-485/ USB as well as one control with Output ON/OFF setting Master/Slave function. Status output Digital controller Control (fault/output/OVP/OCP/OTP/ACF/reversible sense connection) or converter function Maximum 32 units digital control CO-G32m One control function for multiple units GPIB... - Page 6 Functions Real size Front panel Rear panel Output voltage and OVP setting display OUTPUT voltage·OVP setting dial Output current and OCP setting display OUTPUT current·OCP setting dial (mA for R4K-80H) Power ON/OFF switch Remote programming display This has priority over all operations for safety reason. Light up when output voltage/current control in remote mode.
-
Page 7: Specifications
Specifications Output Control CV Mode : By rotary encoder on front panel CC Mode : By rotary encoder on front panel Output Function Wide output range, automatic limit setting at 80W for voltage and current In CV mode output current drop down when output power is more than 84.05W In CC mode output voltage drop down when output power is more than 84.05W Lock Function Lock function locks the output voltage and current setting... -
Page 8: Cable Type
Dimensions inch(mm) 1.38"(35) OUTPUT OVP/ LOCK INPUT AC 100V-240V 50 60Hz front back 0.16"(4) 0.89"(22.7) 10.63"(270) side AC Input Cable CABLE TYPE 1 CABLE TYPE 4 CABLE TYPE 3 (standard) 250V / 10A 250V / 10A 125V / 10A Accessories ·Input AC cable 2.5m single phase 3pin type(1) ·Instruction manual(1) ·Ground plate(1) -
Page 9: Pulse Sequence
Options -LUs1 : USB Interface Board Enable digital control via USB When controlling several R4K-80 power supplies via USB, a USB hub will be required between the PC and R4K-80 power supplies. -LDe: Pulse Ramp Sequence PULSE SEQUENCE Using the stored voltage and current setting in each memory of a, b and c and multi set function, sequence operation is possible. - Page 10 Remote switch terminal is connected to +output internally, therefore do not connect other remote switch at the same time. -Vout Various accessories are available R4K-80 series Accessory Kit for convenient use of the unit. Stand Binder Rack mount holder ■...
-
Page 11: Technical Note
TECHNICAL NOTE Connection · Operation Connection of load Parallel connection of load · Please use a short lead wire that is sufficiently thick for the connection. Good example Bad example · Please use PVC electric cable (105°C) that can fully tolerate the voltage used. - Page 12 USA/canada : : 1-81-6-6150-5089 1-81-6-6150-5089 other countries other countries : : Customer Inquiry Sheet (R4K-80 series) Please copy this page and above fax number after filling out form below. I would like A quotation An explanation of product A demonststration...
