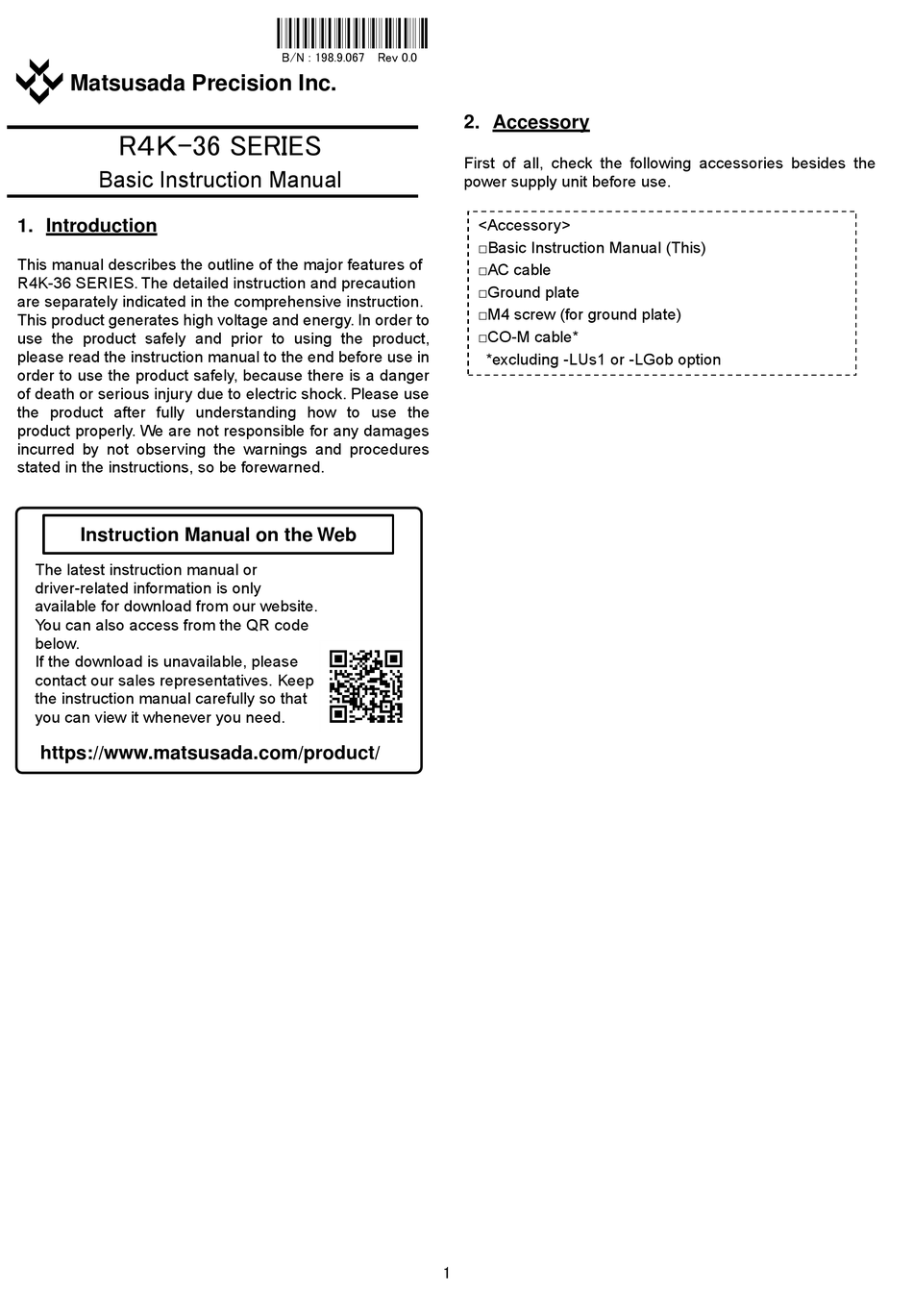

Matsusada Precision Inc.
R４Ｋ-36 SERIES
Basic Instruction Manual
1. Introduction
This manual describes the outline of the major features of
R4K-36 SERIES. The detailed instruction and precaution
are separately indicated in the comprehensive instruction.
This product generates high voltage and energy. In order to
use the product safely and prior to using the product,
please read the instruction manual to the end before use in
order to use the product safely, because there is a danger
of death or serious injury due to electric shock. Please use
the product after fully understanding how to use the
product properly. We are not responsible for any damages
incurred by not observing the warnings and procedures
stated in the instructions, so be forewarned.
Instruction Manual on the Web
The latest instruction manual or
driver-related information is only
available for download from our website.
You can also access from the QR code
below.
If the download is unavailable, please
contact our sales representatives. Keep
the instruction manual carefully so that
you can view it whenever you need.
https://www.matsusada.com/product/
198.9.067
B/N : 198.9.067 Rev 0.0
1
2. Accessory
First of all, check the following accessories besides the
power supply unit before use.
<Accessory>
□Basic Instruction Manual (This)
□AC cable
□Ground plate
□M4 screw (for ground plate)
□CO-M cable*
*excluding -LUs1 or -LGob option
