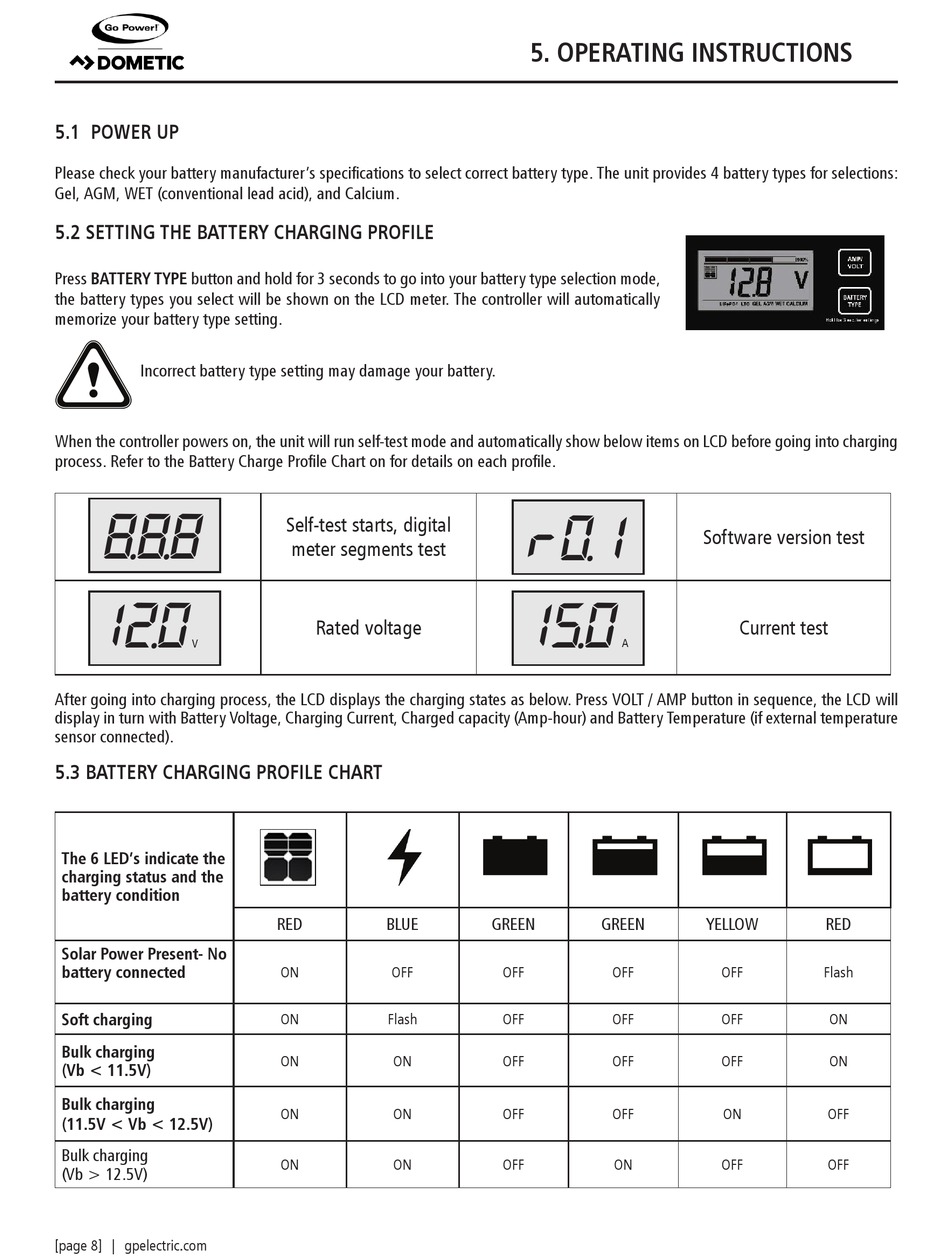

5.1 POWER UP

Please check your battery manufacturer's specifications to select correct battery type. The unit provides 4 battery types for selections:
Gel, AGM, WET (conventional lead acid), and Calcium.

5.2 SETTING THE BATTERY CHARGING PROFILE

Press BATTERY TYPE button and hold for 3 seconds to go into your battery type selection mode,
the battery types you select will be shown on the LCD meter. The controller will automatically
memorize your battery type setting.
Incorrect battery type setting may damage your battery.
When the controller powers on, the unit will run self-test mode and automatically show below items on LCD before going into charging
process. Refer to the Battery Charge Profile Chart on for details on each profile.
8 . 8 . 8
12 . 0
V
After going into charging process, the LCD displays the charging states as below. Press VOLT / AMP button in sequence, the LCD will
display in turn with Battery Voltage, Charging Current, Charged capacity (Amp-hour) and Battery Temperature (if external temperature
sensor connected).

5.3 BATTERY CHARGING PROFILE CHART

The 6 LED's indicate the
charging status and the
battery condition
Solar Power Present- No
battery connected
Soft charging
Bulk charging
(Vb < 11.5V)
Bulk charging
(11.5V < Vb < 12.5V)
Bulk charging
(Vb > 12.5V)
[page 8] | gpelectric.com
Self-test starts, digital
meter segments test
Rated voltage
/GEL
RED BLUE
ON OFF
ON Flash
ON ON
ON ON
ON ON

5. OPERATING INSTRUCTIONS

r0 . 1
15 . 0
A
GREEN GREEN
OFF OFF
OFF OFF
OFF OFF
OFF OFF
OFF ON
Software version test
Current test
YELLOW RED
OFF Flash
OFF ON
OFF ON
ON OFF
OFF OFF
