Manifolds
8-5
Flow Control Manifold

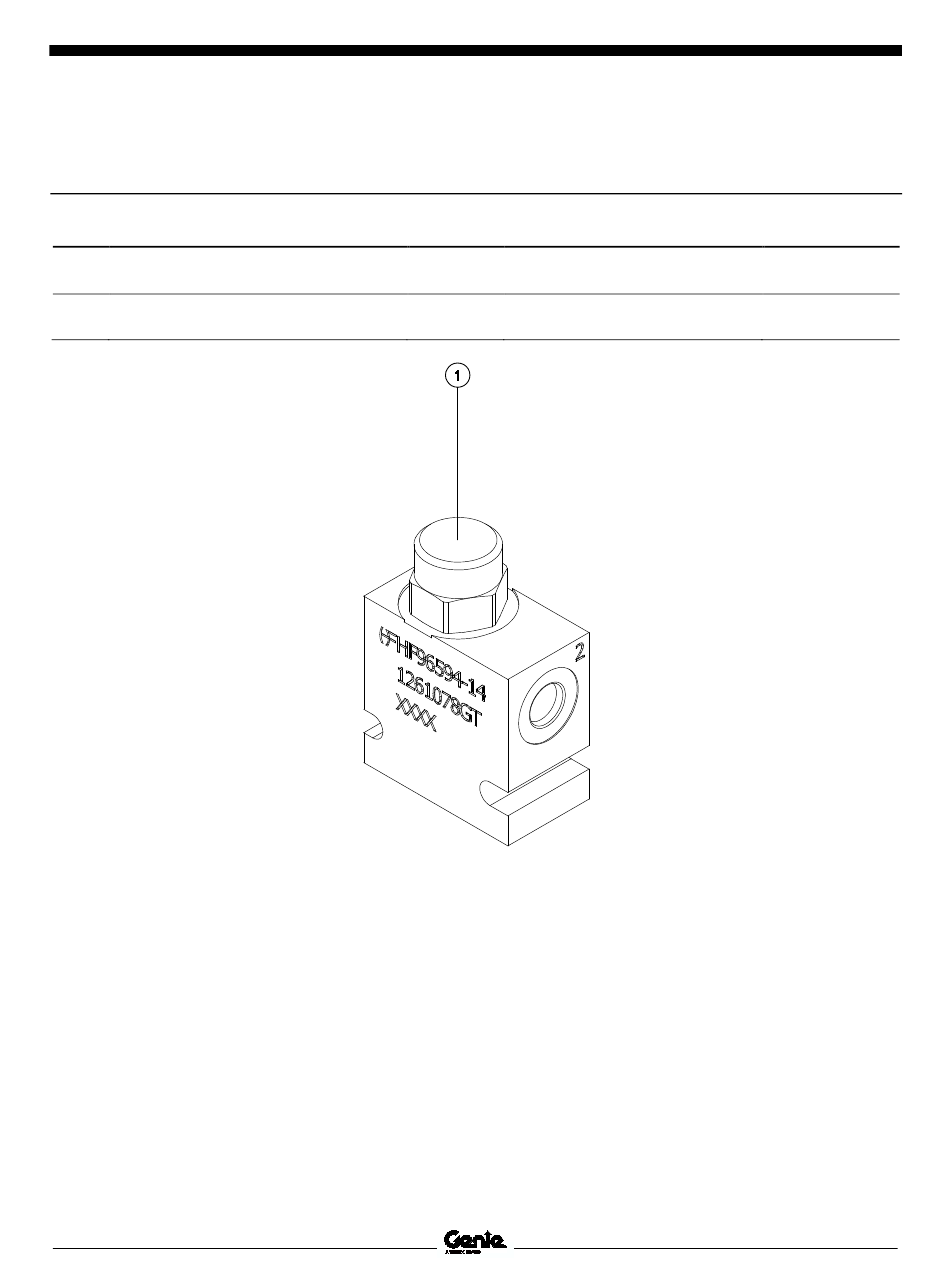

The flow control manifold is located at the platform next to the jib manifold.
Index
Description
No.
1
Flow regulator valve, 0.5 gpm / 1.9 L/min
174
Schematic
Item
AC
Controls flow in the jib and platform
manifold recirculation circuit
ZX-135/70
September 2015
Function
Part No. 218700
Torque
20 ft-lbs / 27 Nm
