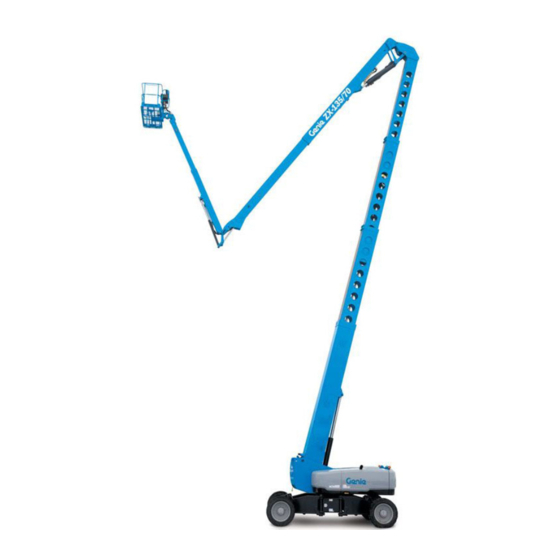

Terex Genie Z-135/70 Installation Instructions Manual
  1. Manuals
  2. Brands
  3. Terex Manuals
  4. Boom Lifts
  5. Genie Z-135/70
  6. Installation instructions manual

Terex Genie Z-135/70 Installation Instructions Manual

Platform level update
Hide thumbs Also See for Genie Z-135/70:

Advertisement

Quick Links

Download this manual
Safety Notice
THIS SAFETY NOTICE CONTAINS INFORMATION ABOUT MANDATORY CHANGES OR CHECKS
Issue:
Date:
Models and Serial Numbers
Affected:
Subject:
Allowable Hours:
Issue:
Genie Industries has become aware of instances where the platform leveling valve, utilized in the above
referenced machines, malfunctions due to contamination of the hydraulic oil. A platform leveling valve that
malfunctions can cause the platform to become unlevel.
Actions Required:
1
Locate all machines within the models and serial ranges referenced above.
2
Order the Platform Leveling Valve Kit PN 1261518.
3
Using the installation instructions included in the kit, install the Leveling Valve Kit on your machine.
Installation of the kit must take place as soon as possible but no later than 30 days from receipt of
the kit.
4
Fill out and sign the completion form attached to the installation instructions and return to Genie. This will
serve as verification that you have completed this Safety Notice.
Continued Use Instructions:
All machine operators and users must be notified of these continued use requirements.
The machine may remain in service until this Safety Notice is completed by following the requirements below:
If platform becomes unlevel, do the following:
a Immediately disengage the foot switch.
Note: Do not re-engage the foot switch. Re-engaging the foot switch can cause the platform to move
further out of level.
b Shut off the engine.
c Remove the operator from the platform.
d Lower the platform using the ground controls.
e Tag and remove the machine from service until this Safety Notice has been completed.
Terex Aerial Work Platforms, 18340 NE 76th Street Redmond WA 98052, Ph: 800-536-1800, 425-881-1800
RELATED TO THE SAFE USE OF OUR PRODUCT.
January 22, 2015
Z-135/70:
Z13505-101 to Z13513-1863
Zx-135/70: Z13513-2002, Z13513-2008
ZX13513-2001 to ZX13515-2563
Platform Leveling
60 minutes
1 of 2
140019
North America

Advertisement

loading
Need help?

Need help?

Do you have a question about the Genie Z-135/70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Terex Genie Z-135/70

Summary of Contents for Terex Genie Z-135/70

  • Page 1 Lower the platform using the ground controls. e Tag and remove the machine from service until this Safety Notice has been completed. Terex Aerial Work Platforms, 18340 NE 76th Street Redmond WA 98052, Ph: 800-536-1800, 425-881-1800 1 of 2...

  • Page 2: Safety Notice

    140019 Safety Notice North America To order parts: Machine owners with a valid Genie account can contact the Terex AWP Parts Department to place an order through one of the following: Genie Website http://www.gogenielift.com Fax: 1-888-274-6192 Phone: 1-800-536-1800 Machine owners without a valid Genie account can contact their nearest Terex AWP dealership or Terex AWP Service Centers for assistance.
  • Page 3 Safety Notice 140019 New Owner Update Form (for updating machine owner information only) Genie and ANSI requires that the seller of a Genie machine report to Genie the model and serial number of each machine sold, as well as the name, address, and telephone number of the new owner, within 60 days of the sale. ...
  • Page 4 Installation Instructions Platform Level Update Z-135/70 ZX-135/70 Part No. 1261248 Rev A...

  • Page 5: Observe And Obey

    Instructions Rev A Introduction Introduction Introduction If you have any further questions regarding these instructions or need assistance, please contact Genie Product Support at one of the following telephone numbers: United States: 800-536-1800 Canada: 425-881-1800 Observe and Obey: Europe: + 44 1476 584 333 France + 33 237 260 986 ...

  • Page 6: Tools Required

    Rev A Instructions Introduction Tools Required: Components of Kit 1261518 Mild cleaning solvent Screw, HHC, 1/4-20 x 1.75 Genie part number 6637 Soft clean cloth Qty. 2 7/16 inch wrench Flat washer, 1/4 Genie part number 6638 9/16 inch wrench Qty.
  • Page 7 Instructions Rev A Procedure Procedure Note: Perform this procedure on a flat level surface, Remove the platform manifold from the with the boom and jib in the stowed position. mounting bracket. Set the manifold and retaining fasteners aside. Locate and disconnect the black negative battery cable from the engine battery.
  • Page 8 Rev A Instructions Procedure 10 Install the provided fitting (Genie part number 16 Install the provided run tee (Genie part number 48904) into port 2 of the flow control manifold 48906) into tank port (T). Do not tighten at this and securely torque to 14 ft-lbs / 19 Nm.
  • Page 9 Manual located on your machine. 30 Return the machine to service. 31 Fill out and sign the attached completion form and fax or email to Terex AWP Warranty Department. This will serve as verification that you have completed Safety Notice 140019.
  • Page 10 Rev A Instructions Illustration Illustration 1 Platform manifold 5 Mounting bracket 2 Platform rotate valve 6 Run tee (T) port 3 Platform level valve 7 Flow control manifold 4 Run tee, (P) port Part No. 1261248 Platform Level Update...
  • Page 11 Instructions This page intentionally left blank. Platform Level Update Part No. 1261248...
  • Page 12 Your signature on this form will verify that you have completed Safety Notice 140019 on the machines listed below. Please note that this is not a Warranty Claim Form. A Warranty Claim Form must be submitted to the Terex AWP Warranty Department for reimbursement under the provisions of our standard warranty terms and conditions.
