JSI CAAV Installation Instructions

CAAV

SIDE MOUNT POWER INSTALL

Recommended tools

#8 x ½ pan head screws – 4 per

NOTE: all screws provided must be

installed for proper installation and

compliance with product warranty.

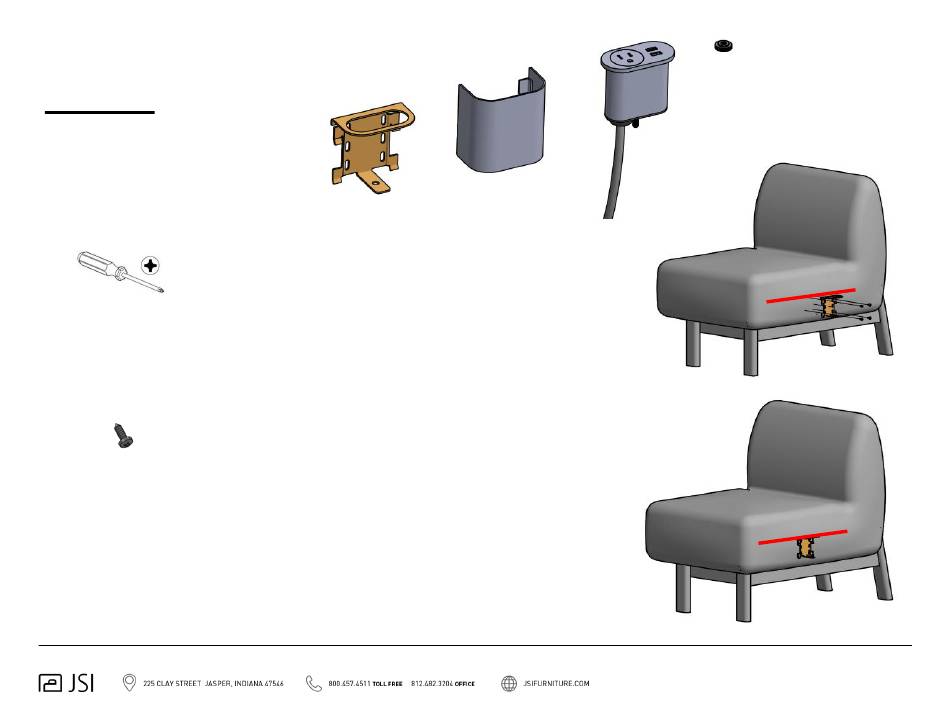

Components for EC47 Power Unit shown

Attachment Bracket shown in different

color to be easily identified.

• Before attaching the attachment bracket locate

where the wood frame and the set foam meet

(see red line) you will be able to feel this

transition. The top of the attachment bracket

will need to align with the top of the frame

• The bracket can be moved forward or

backwards to suit the needs of the user, but

once the screws are installed there will be

permanent holes in the fabric.

• Screw the bracket down using the provided

screws. This can be done with the hand screw

driver – JSI doesn't recommend the use of a

drill or power driver in the application. This

will help avoid pulling threads or foam when

installing.
