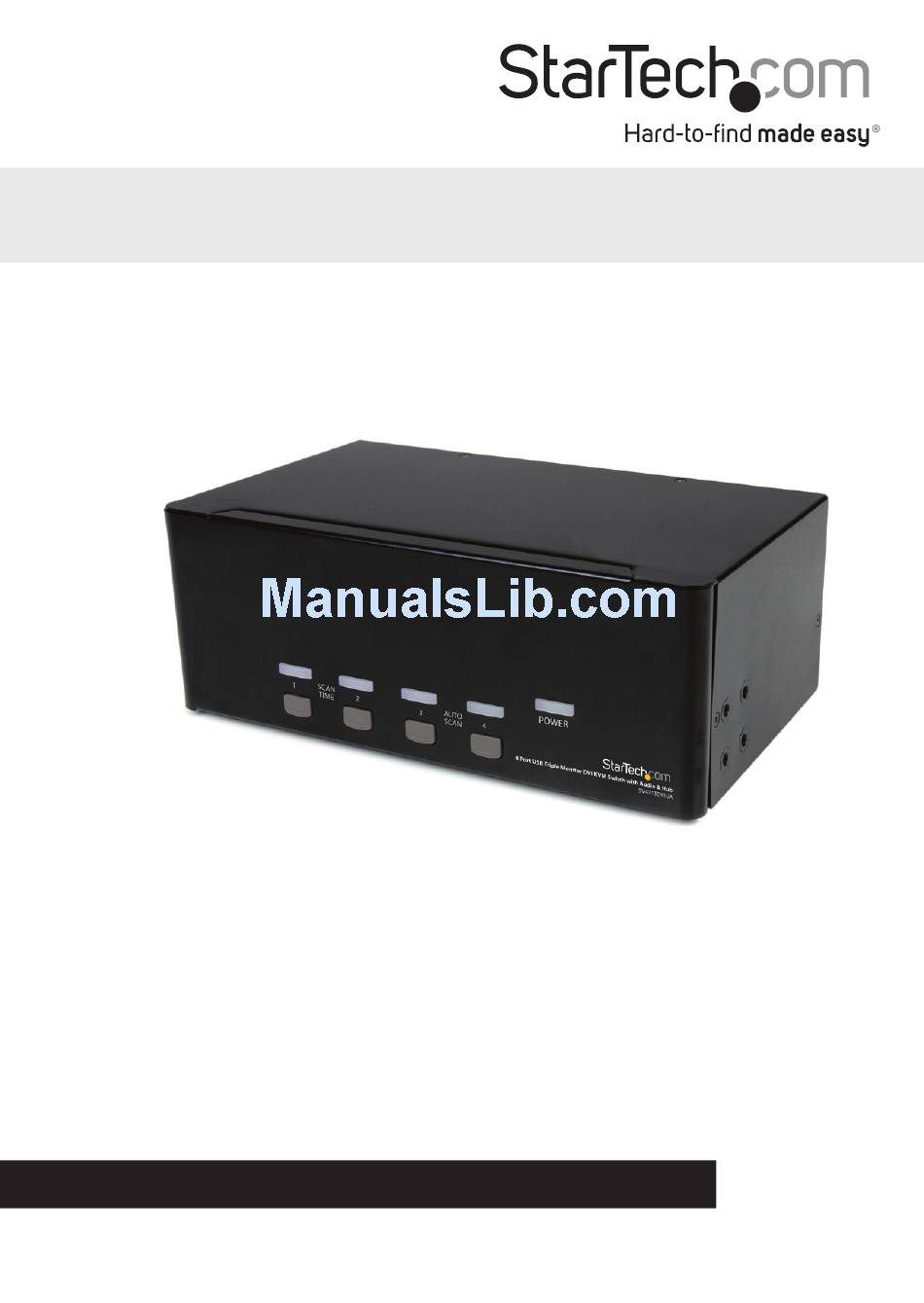

2/ 4 Port Triple Monitor DVI USB KVM Switch
with Audio and USB 2.0 Hub
SV231TDVIUA
SV431TDVIUA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/26/2012

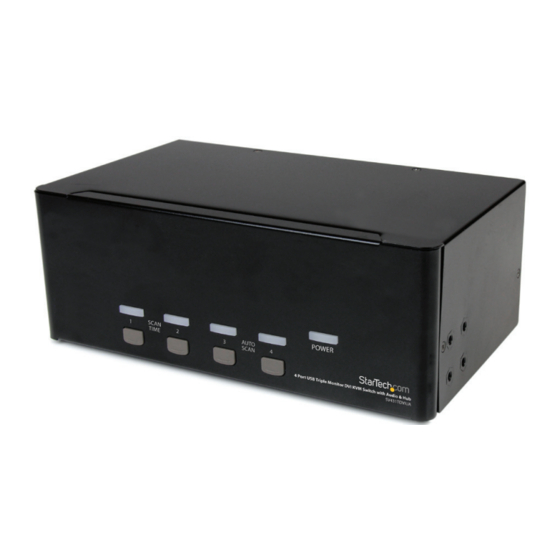

*SV431TDVIUA shown
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV231TDVIUA
Summary of Contents for StarTech.com SV231TDVIUA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/26/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ..............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................4 Operation ....................4 Front Panel ..............................4 Hotkey Control ............................5 Alternative Hotkey Commands ...................... -
Page 4: Introduction
Introduction The 2/ 4-Port Triple Monitor DVI USB KVM Switch allows 2 or 4 PCs, each with 3 DVI video outputs, to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam. -
Page 5: Front View
Front View *SV431TDVIUA shown Port Link/ Selection Port Selection Button Power LED Rear View *SV431TDVIUA shown Function Console DVI-I connectors Button (Output) DC Power connector USB 2.0 Hub Computer connectors 3.5mm Audio (PC1) (headphone/mic) Console USB keyboard/ mouse port Instruction Manual... -
Page 6: Installation
NOTE: DVI + USB + Audio KVM combo cables are also available which can be used in place of separate individual cables (e.g. StarTech.com ID: DVI4N1USB6). 4. Repeat Steps 2 and 3 for each PC port on the KVM switch, or each computer you wish to use on the KVM. -
Page 7: Driver Installation
8. Once operation has been successfully confirmed, switch to the next port and power up that computer/device and confirm. 9. Once completed for all computers/devices connected to the KVM switch, you should be able to switch between ports freely. Driver Installation No driver installation is required for the KVM switch, as the keyboard/mouse use USB drivers that are already installed on any operating system that fully supports USB. -
Page 8: Hotkey Control
Hotkey Control A Hotkey command is a short keyboard sequence for selecting a computer, activating computer scan, etc. A hotkey sequence starts with two left <CTRL> keystrokes (successively within 0.2 seconds) followed by one or two more keystrokes. A built-in tone generator creates a high-pitch beep for correct hotkey command;... - Page 9 Scan Time Four options are available for users to set the Scan Time duration, it Includes 3, 8, 15 and 30 seconds. Note: Scan Time is set to 3 seconds by default. To adjust Scan Time, set the scan time of duration before switching to the next computer: Left <CTRL>...
- Page 10 Audio Lock There are two options for Audio Lock: ON and OFF. When ON, audio selection follows computer selection. When OFF, audio selection stops following computer selection. It is useful if you want to listen to a particular computer’s audio signal while operating other computers.
-
Page 11: Alternative Hotkey Commands
Alternative Hotkey Commands In addition to the Left <CTRL> + Left <CTRL> hotkeys, there are two alternative hotkey sequences available. 1. For the following operations, users may press <ScrollLock> twice instead of pressing left <CTRL> twice. To select a computer: <ScrollLock>... -
Page 12: Change Leading Hotkey
Change Leading Hotkey The default leading hotkey sequence involves pressing the left <CTRL> twice in succession (e.g. left <CTRL> + left <CTRL>). This can be changed to the right <CTRL> key instead, to avoid accidental activation due to using the left <CTRL> key for functions such as Copy/Paste. -
Page 13: Specifications
Specifications SV231TDVIUA SV431TDVIUA Number of Ports 3 x 19-pin DVI-I female Console Connectors 4 x USB type A female 2 x 3.5mm Audio female 3 x 19-pin DVI-I female Computer Connectors 1 x USB type B female (per port) 2 x 3.5mm Audio female... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
