1.5

ADDITIONAL HARDWARE THAT MAY BE REQUIRED

1.5.1 Flow Conditioners

Flow conditioners may be required when an insufficient straight run of pipe is available
upstream of the proposed meter location. ONICON provides flow conditioners as an
optional accessory.

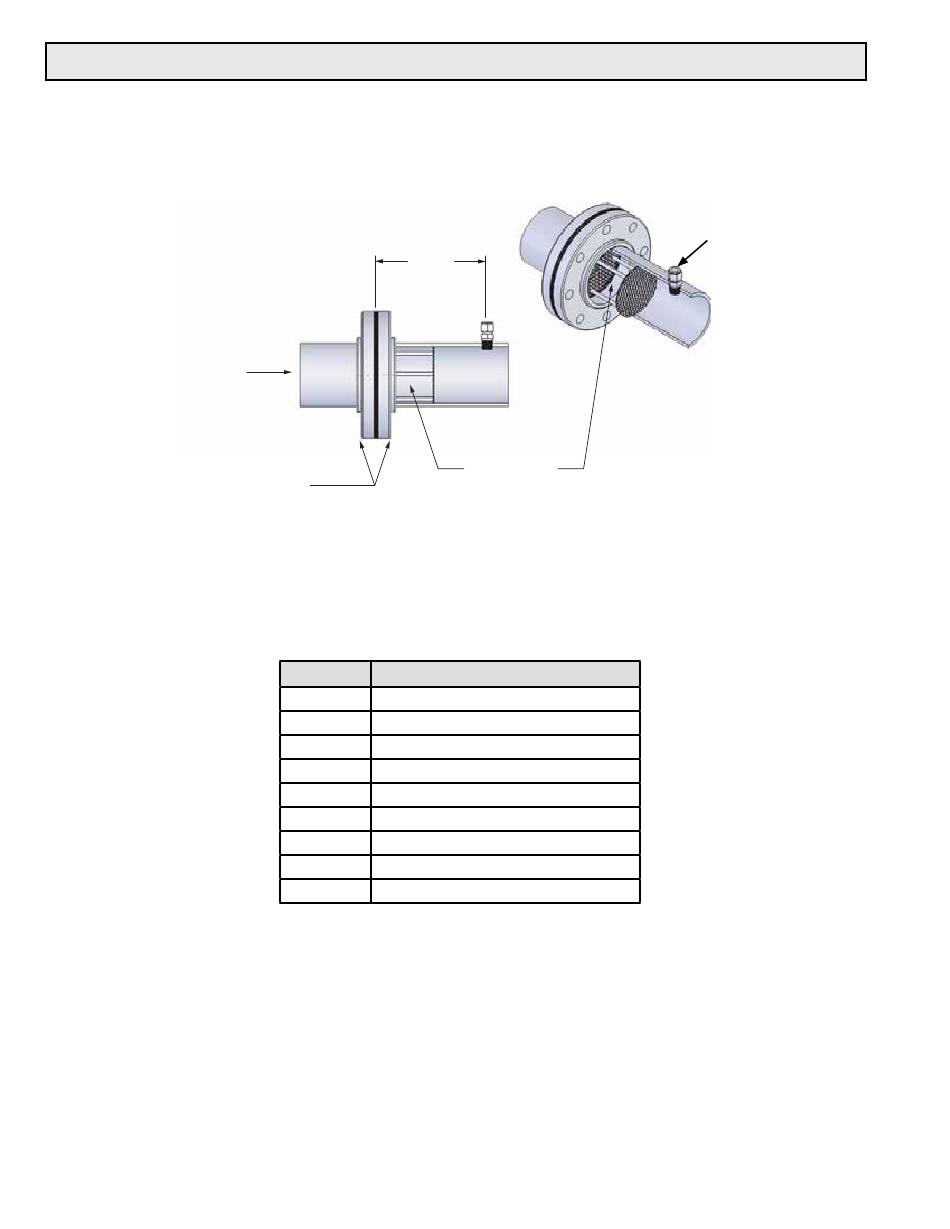

FLOW
ANSI class flanges
(user supplied)
Gaskets
ONICON flow conditioners are designed to be installed between two flanges (provided
by installer) that are located a specific distance upstream of the flow meter. The use of
flow conditioners significantly reduces the upstream straight pipe length requirement
for flow meter. See page 12 for straight run requirements. The size of the flow conditioner
must match the pipe size. Contact ONICON for Schedule 80 flow conditioners.
www.mvandc.com
2 pipe
diameters
Flow conditioning
assembly is
inserted here
Part #
Description
17381
1" Flow Conditioner, Sch40
17382
1¼" Flow Conditioner, Sch 40
17383
1½" Flow Conditioner, Sch40
17384
2" Flow Conditioner, Sch40
17385
2½" Flow Conditioner, Sch40
17386
3" Flow Conditioner, Sch40
17387
4" Flow Conditioner, Sch 40
17388
6" Flow Conditioner, Sch40
17389
8" Flow Conditioner, Sch40
| sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903
Flow meter
inserts here
