INCORPORATED
Owner's Manual for

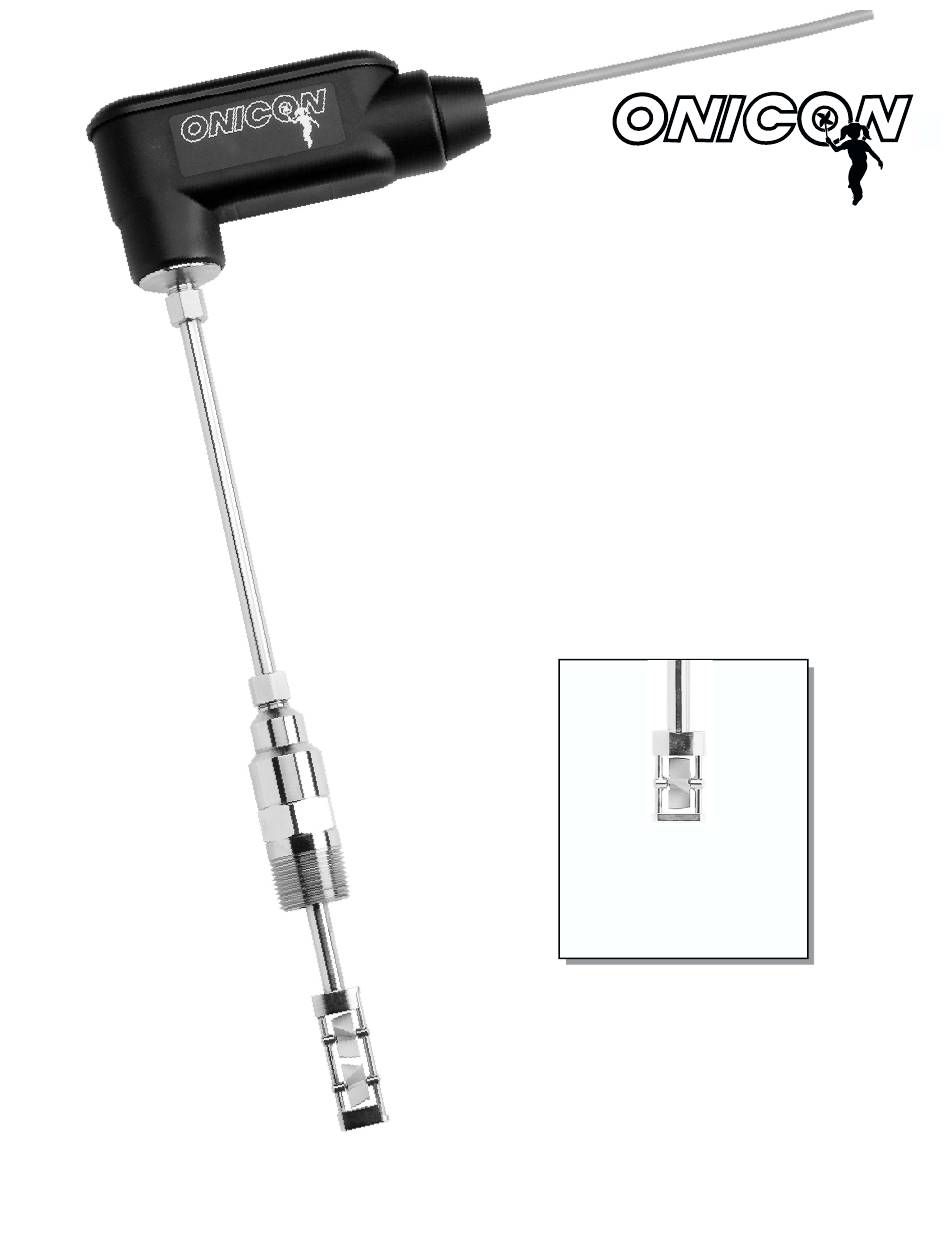

ONICON Insertion
Turbine Flow Meters
Insertion Flow Meters
are available in
Single or Dual Turbine.
This manual applies to all
Insertion Flow Meters.
For use with serial numbers
115692 and later
1500 North Belcher Road, Clearwater, Florida 33765 Tel (727) 447-6140 Fax (727) 442-5699
www.onicon.com E-mail: sales@onicon.com
9-27-01
