Summary of Contents for Onicon F-5200

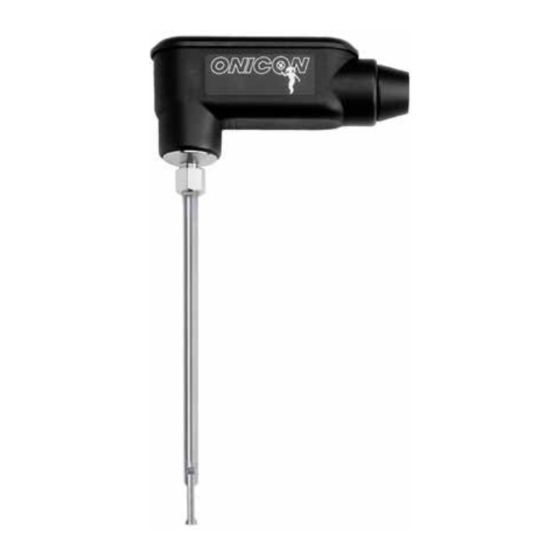

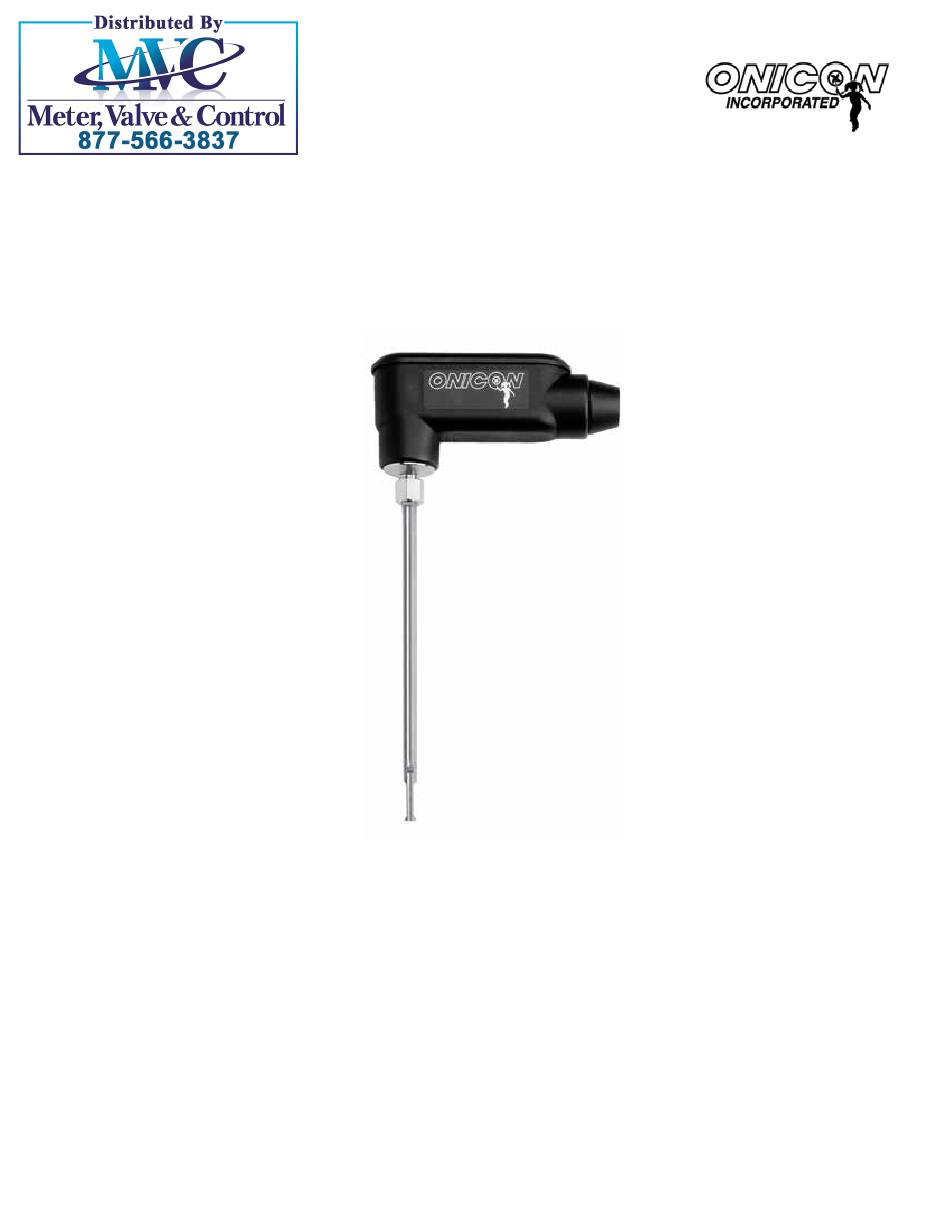

- Page 1 F-5200 Insertion Thermal Mass Flow Meter Installation and Operation Guide | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
- Page 2 ONICON assumes no responsibilities for this product except as stated in the warranty. • If the customer or any third party is harmed by the use of this product, ONICON assumes no responsibility for any such harm owing to any defects in the product which were not predictable, or for any indirect damages.
-
Page 3: Table Of Contents
Signal and Power Wiring Connections ........19 3.5.2 Analog Output ................20 3.5.3 Pulse Output ................20 START-UP & COMMISSIONING FOR ONICON INSERTION THERMAL MASS FLOW METERS ....................21 HELPFUL HINTS FOR START-UP & COMMISSIONING ......21 START-UP & COMMISSIONING .............22 START-UP & COMMISSIONING WORKSHEET ........23 TROUBLESHOOTING GUIDE ................24... - Page 4 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
-
Page 5: Introduction
We, at ONICON Incorporated, would like to thank you for purchasing our quality American made F-5200 Series Thermal Mass Flow Meter. As our valued customer, our commitment to you is to provide fast reliable service, while continuing to offer you quality products to meet your growing flow measurement needs. -
Page 6: Standard Features And Specifications
STANDARD FEATURES AND SPECIFICATIONS CALIBRATION Every ONICON thermal mass flow meter is wet calibrated in a flow laboratory against standards that are directly traceable to N.I.S.T. A certificate of calibration accompanies every meter. Each meter is calibrated for use with a specific gas. -
Page 7: Additional Required Hardware
ADDITIONAL REQUIRED HARDWARE All ONICON insertion thermal mass meters can be installed and removed via a ¾” or larger full port ball valve without disrupting flow. The terms “Standard” and “Hot Tap” refer to the installation method only. Standard Installation: Occurs during new construction or Compression Fitting scheduled shutdown. -
Page 8: Additional Hardware That May Be Required
ADDITIONAL HARDWARE THAT MAY BE REQUIRED 1.5.1 Flow Conditioners Flow conditioners may be required when an insufficient straight run of pipe is available upstream of the proposed meter location. ONICON provides flow conditioners as an optional accessory. Flow meter inserts here... -
Page 9: Working Environment
Appendix A-4, ONICON’s Conditions of Sale for details. Serial Number The serial number of your F-5200 series flow meter is located on the nameplate attached to the side of the enclosure. | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903... -
Page 10: Unpacking
All ONICON products are shipped insured unless the customer specifically requests otherwise. Please notify the shipping company and ONICON immediately if any items are damaged in transit. Save all packing material for inspection by the shipper. CHECKING THAT YOU RECEIVED EVERYTHING... -
Page 11: Installation Site Selection
Refer to Section 1.6 WORKING ENVIRONMENT for additional considerations. ONICON insertion style flow meters must also be correctly oriented in the pipe with respect to the direction of flow. The drawings above illustrate the relationship between flow direction and the orientation of the meter when installed in the pipe. - Page 12 IMPORTANT NOTICE Always use the maximum available straight run. When more than the minimum required straight run is available place the meter such that the excess straight run is upstream of the meter location. The flow meter must be properly installed with respect to the direction of flow. Installing the meter with the UPSTREAM label facing downstream will result in significant errors in the flow measurement.
-
Page 13: Mechanical Installation
FLOW CAUTION ONICON insertion style flow meters must be installed through a valve assembly. Failure to do so negates the ability to remove the meter without disrupting flow. It will also result in an excessive amount of stem protruding from the pipe. Excessive stem lengths unnecessarily expose the meter to incidental damage. -
Page 14: Directions For Standard Installation (New Construction)
InSTALLATIOn KIT COMPOnEnTS ¾” ¾” ¾” ¾” ½” ½” NPT BRANCH CLOSE FULL PORT REDUCER COMPRESSION OUTLET NIPPLE BALL VALVE BUSHING FITTING Compression Fitting ⅝” MINIMUM DIA ACCESS HOLE 50 PSIG Maximum Pressure (Exploded view) INSTALLATION KIT COMPONENTS ¾” WELD-ON ¾”... -
Page 15: Installing The Flow Meter
INSTALLING THE FLOW METER WARNING SYSTEM MAY BE UNDER HIGH PRESSURE. When inserting, removing or adjusting the meter position, be sure to hold the enclosure firmly by hand before SLOWLY loosening the compression fitting. Failure to do this will allow the pressure to suddenly and rapidly force the meter from the pipe causing serious injury. - Page 16 Determining the Insertion Depth The dimension used to set the insertion depth is the “X” dimension. This dimension is printed on the laminated tag attached to the meter and can be found in the tables below. Schedule 40 Pipe ONICON Nominal O.D. I.D.
- Page 17 CAUTION The compression fitting must be tightened as described in the following procedure. Failure to do will likely result in fluid leaks and/or permanent damage to the flow meter stem. Tightening the Compression Fitting Insert the meter as described above. Tighten the nut until the stem will not turn by hand or move axially in the fitting.
-
Page 18: Removing The Flow Meter
REMOVING THE FLOW METER WARNING SYSTEM MAY BE UNDER HIGH PRESSURE. When removing the flow meter, be sure to grasp the electronics enclosure firmly by hand before slowly loosening the compression fitting. Failure to do this will allow the pressure in the pipe to suddenly and rapidly force the meter from the pipe causing serious injury. -
Page 19: Electrical Installation
Additional cable may be purchased from ONICON that will allow you to maintain the existing color coding. All electrical connections to the F-5200 must be made through the 10ft cable provided with the meter. This cable is not designed to be removed in the field, and any attempt to do so will compromise the weather tight integrity of the enclosure. -
Page 20: Analog Output
Contact ONICON for assistance if the full scale flow rate requires reprogramming. 3.5.3 Pulse Output The F-5200 is provided with a single scaled pulse output for totalizing. This is an isolated dry contact output. Maximum contact ratings are 50VDC @ 100mA. Pulse duration is 500ms. -
Page 21: Start-Up & Commissioning For Onicon Insertion Thermal Mass Flow Meters
Please read these helpful hints before proceeding with the start-up and commissioning procedure on the next page. ONICON flow meters are individually calibrated for a particular application. Be sure to verify the pipe size and location. When measuring analog output signals, remember that current (mA) must be measured in series, while voltage is measured in parallel. -
Page 22: Start-Up & Commissioning
Compare the actual straight pipe upstream and downstream of the to achieve desired results. meter location to recommended distances identified in this manual. If straight pipe run is very short, consult ONICON PRIOR to installing the meter to discuss the possibility of using a flow conditioner. -
Page 23: Start-Up & Commissioning Worksheet
START-UP & COMMISSIONING WORKSHEET Please read all installation instructions carefully prior to proceeding with these steps. Use the following worksheet for checking off the commissioning steps and recording measured values. STEP TEST/MEASUREMENT S/N: S/N: S/N: S/N: Meter location: Confirm pipe size: Insertion depth and orientation: Control system... -
Page 24: Troubleshooting Guide
• Please contact ONICON for further assistance. Reading is too high or • Verify pipe size. Contact ONICON if pipe size is different from that shown on the meter tag. (See step 2 of section 4.2) • Verify that the meter is properly inserted into the pipe. -
Page 25: Appendix
APPENDIX USE OF THE INSERTION DEPTH GAGE CONDITIONS OF SALE | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... - Page 26 SETTING INSERTION DEPTH WITH GAGE WARNING SYSTEM MAY BE UNDER HIGH PRESSURE. When inserting, removing or adjusting the meter position, be sure to hold the enclosure firmly by hand before SLOWLY loosening the LOW PRESSURE HIGH PRESSURE compression fitting. Failure to do this will allow the pressure to suddenly and rapidly force the meter from the pipe causing serious injury.
- Page 27 DELIVERY AND TITLE: All product shipments are F.O.B. shipping point and title passes to the Buyer at the time ONICON delivers the merchandise to the carrier. Risk of loss or damage to the product passes to the Buyer at the time ONICON delivers the product to the carrier.
