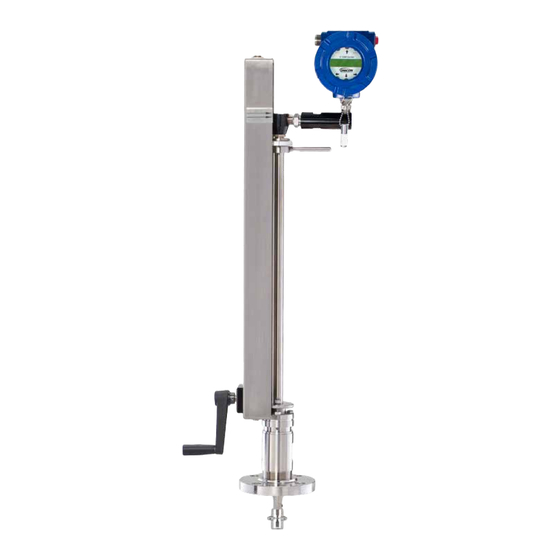

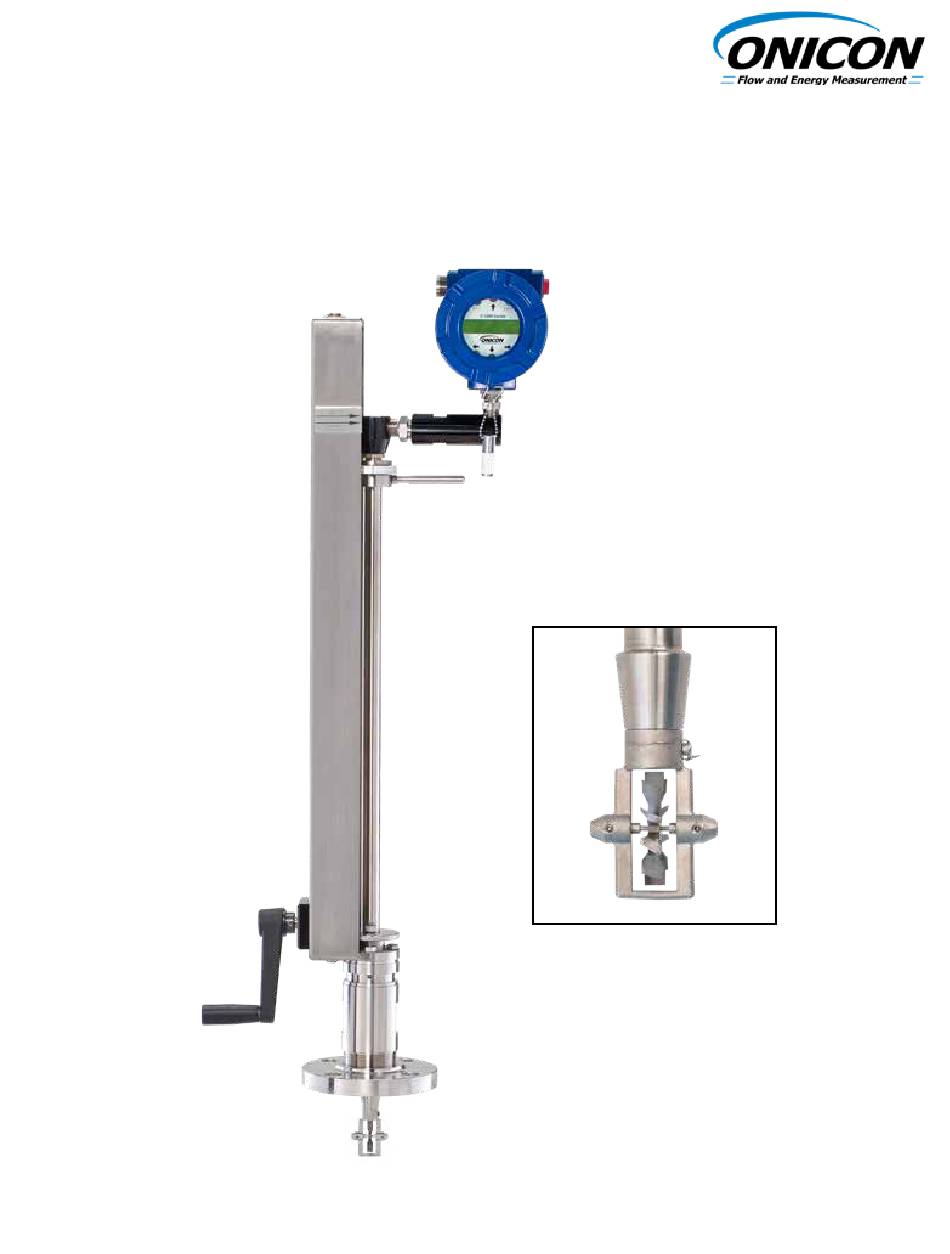

F-1500 Series Insertion Turbine Flow Meter
Installation and Operation Guide
11451 Belcher Road South, Largo FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699
www.onicon.com • sales@onicon.com
02-18
1018-6 / 35726
