Onicon F-4300 Installation & Operation Manual

Clamp-on ultrasonic flow meter
Hide thumbs Also See for F-4300:
Table of Contents

Advertisement

Quick Links

Download this manual

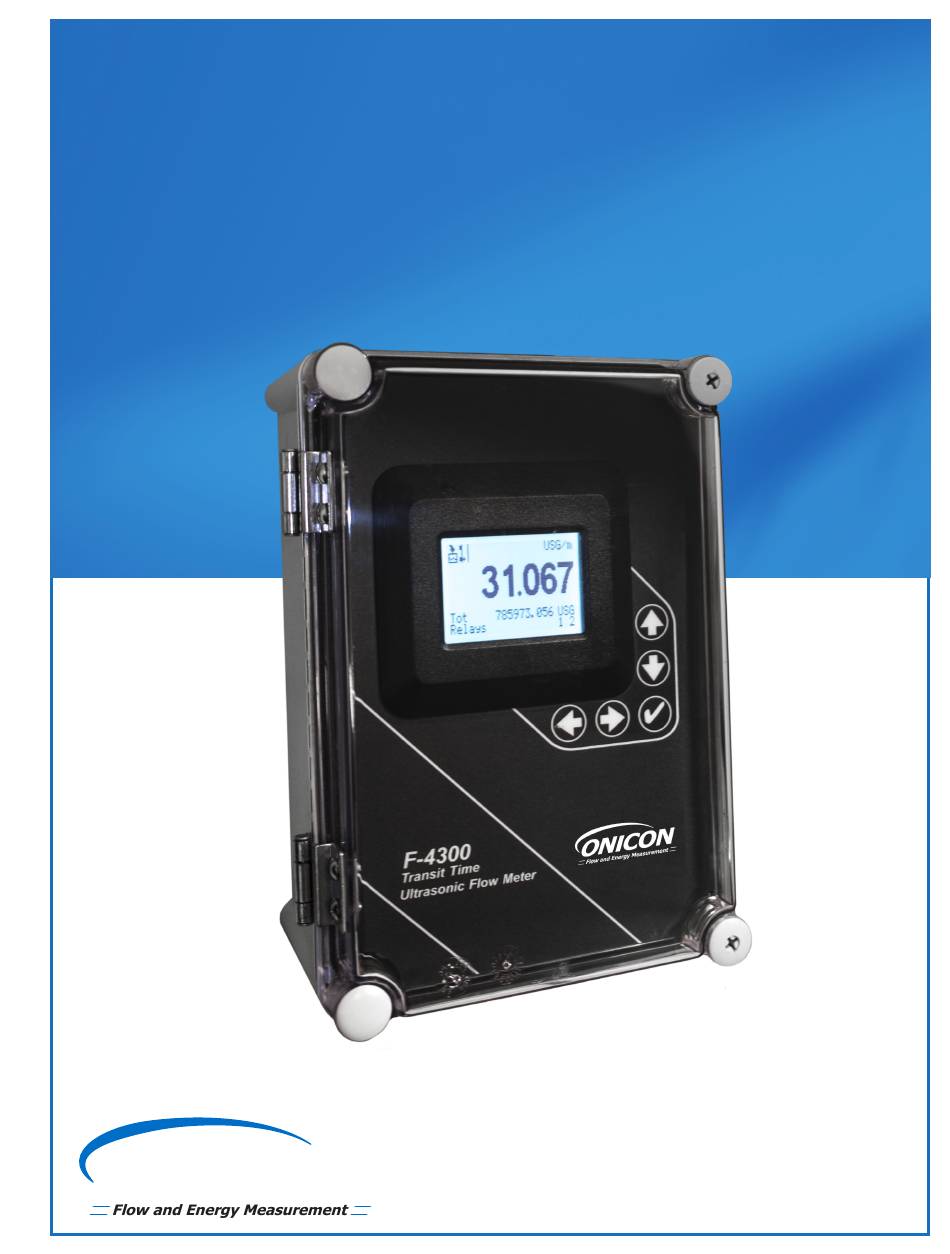

ONICON
Clamp-on Ultrasonic Flow Meter
Clamp-on Ultrasonic Flow Meter
Installation & Operation Guide
Installation & Operation Guide
F-4300
F-4300
DOC-0003010 Rev.F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-4300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onicon F-4300

Summary of Contents for Onicon F-4300

  • Page 1 F-4300 F-4300 Clamp-on Ultrasonic Flow Meter Clamp-on Ultrasonic Flow Meter Installation & Operation Guide Installation & Operation Guide ONICON DOC-0003010 Rev.F...
  • Page 2 • ONICON Incorporated assumes no responsibilities for this product except as stated in the warranty. • If the customer or any third party is harmed by the use of this product, ONICON Incorporated assumes no responsibility for any such harm owing to any defects in the product which were not predictable, or for any indirect damages.

  • Page 3: Table Of Contents

    3.3.4 30 Series Mechanical Installation ..............................30 3.3.4.1 Preparing the Pipe for 30 Series Transducers ........................30 3.3.4.2 Two (2) Cross Mounting Installation for 30 Series Transducers .................31 3.3.4.3 One (1) Cross Mounting Installation for 30 Series Transducers ................33 ONICON Incorporated 727.447.6140 Page 3 onicon.com...
  • Page 4 APPENDIX A - SPEED OF SOUND IN PURE WATER TABLE ( IMPERIAL UNITS ) ............76 APPENDIX B - SPEED OF SOUND IN PURE WATER TABLE ( SI UNITS ) .................77 APPENDIX C - SPEED OF SOUND IN GLYCOL WATER TABLE ..................78 APPENDIX D - PIPE CHARTS..............................79 ONICON Incorporated 727.447.6140 Page 4 onicon.com...

  • Page 5: Section 1.0 General Information

    1.2 TYPICAL F - 4300 FLOW METER INSTALLATION The F-4300 Ultrasonic Flow Meter utilizes clamp-on signal transducers that mount on the outside wall of the pipe. It is suitable for measuring the volumetric flow of liquids in a wide variety of applications including bi-directional flow applications.

  • Page 6: Standard Features And Specifications

    None, Even, Odd (MODBUS® RTU only) APPROVALS 2014/30/EU EMC Directive * SPECIFICATIONS subject to change without notice. ** Installation hardware are provided separately. Refer to F-4300 Thermal Energy Measurement System Addendum for more details on BTU meter options. ONICON Incorporated 727.447.6140 Page 6 onicon.com...
  • Page 7 F - 4300 CLAMP - ON ULTRASONIC FLOW METER 1.3 STANDARD FEATURES AND SPECIFICATIONS* (CONTINUED) F-4300 FLOW SENSOR PERFORMANCE SENSING METHOD Ultrasonic differential transit time velocity measurement via non-wetted transducers OPERATING CONDITIONS FLUID PROPERTIES Clean liquids in full (pressurized) pipes FLUID VELOCITY RANGE 0.07 ft/s to 40 ft/s...

  • Page 8: Model Numbering Codification

    F - 4300 CLAMP - ON ULTRASONIC FLOW METER 1.4 MODEL NUMBERING CODIFICATION Meter Model Number Coding = F-4300-ABCD-EEFF-GG A = Electronics Enclosure 1 = NEMA 4X Polycarbonate B = Input Power 1 = 24 V AC/DC 2 = 110 - 240 VAC C = Feature Set &...

  • Page 9: Additional Hardware That May Be Required

    1.8 SERIAL NUMBER The serial number of your F-4300 is located outside and inside the enclosure. Transducers will be packaged inside the enclosure they were calibrated with and will bear their own unique serial numbers. You should have one of these serial numbers available when contacting ONICON for assistance regarding your meter.

  • Page 10: Section 2.0 Unpacking

    F - 4300 CLAMP - ON ULTRASONIC FLOW METER SECTION 2.0 UNPACKING The F-4300 is generally shipped in one package. Notify the freight carrier and ONICON if any items are damaged in transit. 2.1 CHECKING THAT YOU HAVE RECEIVED EVERYTHING...

  • Page 11: Section 3.0 Installation

    3.1 OVERVIEW Each F-4300 Clamp-on Ultrasonic Flow Meter is provided with a pair of matched ultrasonic transducers. The transducers are mounted (clamped) on to the outside wall of the pipe. Triaxial cables convey the transducer signals to the wall mount enclosure containing the signal processing circuitry and the user interface display.

  • Page 12: Two (2) (Reflect) Or Four (4) (Double Reflect) Cross Mode

    Separation Distance Transducer Transducer 1 CROSS SEPARATION DISTANCE ( DIRECT ) 1 Cross Separation Distance (Direct) *Shown in "Setup" menu after sensor, fluid and pipe parameters are entered. See pg. 47 for more information. ONICON Incorporated 727.447.6140 Page 12 onicon.com...

  • Page 13: Site Selection

    IMPORTANT NOTE The maximum allowable distance between the wall-mount enclosure and the transducers installed on the pipe is 100 feet. Only ONICON furnished cable may be used between wall-mount enclosure and the transducers. ONICON Incorporated 727.447.6140 Page 13...

  • Page 14: The Transducers

    • Mounting on a vertical pipe iis the recommended installation method if flow is in the upward direction. When mounting on a vertical pipe flowing in a downward direction, make sure there is sufficient back pressure in the system to maintain a full pipe. ONICON Incorporated 727.447.6140 Page 14 onicon.com...

  • Page 15: Transducer Mounting Recommendations

    2 to 4 or 8 to10 o'clock position on horizontal pipes Transducer face to be perpendicular to pipe surface Ensure transducers are parallel with pipe axis and flush to the pipe surface ONICON Incorporated 727.447.6140 Page 15 onicon.com...

  • Page 16: Mechanical Installation

    1.34" 3X D = 0.875" END VIEW CONDUIT HOLE AND DIMENSIONS CAUTION Do not drill additional holes in this enclosure. Doing so may damage the electronic circuitry contained within and will void all warranties. ONICON Incorporated 727.447.6140 Page 16 onicon.com...

  • Page 17: Series Transducer Dimensions

    1.25" SIDE VIEW 1.20" 2.10" 4.25" Dimension (A) varies based on pipe material, wall thickness, and shown in "Setup" menu after sensor, fluid and pipe parameters are entered. See pg. 47 for more information. ONICON Incorporated 727.447.6140 Page 17 onicon.com...

  • Page 18: Series Transducer Dimensions

    2.60" 1.60" IMPERIAL SIDE 4.50" Dimension (B) varies based on pipe material, wall thickness, and shown in "Setup" menu after sensor, fluid and pipe pa- rameters are entered. See pg. 47 for more information. ONICON Incorporated 727.447.6140 Page 18 onicon.com...

  • Page 19: Series Mechanical Installation

    IMPORTANT NOTE The 10 Series transit-time transducers should be installed with the cable connections pointed away from each other, as shown in the drawing below. Adjustable Stainless Steel Strap ONICON Incorporated 727.447.6140 Page 19 onicon.com...

  • Page 20: Two (2) Or Four (4) Cross Mounting Installation For 10 Series Transducers

    Site Installation Details document. Tighten the transducer down using the built-in tightening bracket. DO NOT over-tighten the screw. 5. Make any fine adjustments (±0.1”) to the spacing at this point by loosening the tightening screw slightly, sliding the second transducer, then re-tightening it. ONICON Incorporated 727.447.6140 Page 20 onicon.com...

  • Page 21: Series Mechanical Installation

    Always install hardware at the 2:00 to 4:00 or 8:00 to 10:00 position on horizontal pipes. This prevents the flow meter from being affect by air trapped at the top of the pipe. Transducer Pipe Adjustable Stainless Steel Strap Transducer Mounting Bracket Transducer Mounting Bracket Pipe END VIEW 2" pipe minimum ONICON Incorporated 727.447.6140 Page 21 onicon.com...

  • Page 22: Two (2) Or Four (4) Cross Mounting Installation For 20 Series Transducers

    4. Move the hardware assembly to its final position on the pipe. Align the brackets with the prepared surface for each transducer, ensuring that the entire assembly is properly oriented along the axis of the pipe. ONICON Incorporated 727.447.6140 Page 22...
  • Page 23 3.3.3.2 Two (2) or Four (4) Cross Mounting Installation for 20 Series Transducers (Continued) 5. Apply a small amount of coupling compound to the transducers. A packet of acoustic coupling compound was supplied with the transducers. Contact ONICON if you need more compound. Compound...
  • Page 24 Transducer Installation Procedure: 1. Apply a generous amount of acoustic coupling compound dielectric grease inside the rubber boot. 2. Slide the protective rubber boot over the BNC connector. 3. Repeat procedure for the second transducer. ONICON Incorporated 727.447.6140 Page 24 onicon.com...

  • Page 25: One (1) Cross Mounting Installation For 20 Series Transducer

    2" pipe minimum IMPORTANT NOTE Mount the mounting bracket as illustrated on pipes 2" (50 mm) od or larger. Stainless steel bands are included for mounting on pipes up to 10" (250 mm) nominal pipe size. ONICON Incorporated 727.447.6140 Page 25 onicon.com...
  • Page 26 7. Wrap the mylar sleeve around the pipe so that the left edge is against the transducer edge mark. Arrange so that one end overlaps the other. Ensure that it is snug around the pipe and mark along the overlapping edge. Draw the guide tightly around the pipe and mark at the overlapping edge Spacing guide ONICON Incorporated 727.447.6140 Page 26 onicon.com...
  • Page 27 14. Apply a small amount of coupling compound to the transducers and install them in the brackets. A packet of acoustic coupling compound was supplied with the transducers. Contact ONICON if you need more compound. Compound...
  • Page 28 17. Make any fine adjustments (±0.25”) to the spacing at this point by loosening the tightening screw slightly, sliding the brackets while transducers are installed inside them, then re-tightening the screws when done. Separation Distance Transducer Transducer ONICON Incorporated 727.447.6140 Page 28 onicon.com...
  • Page 29 Transducer Installation Procedure: 1. Apply a generous amount of acoustic coupling compound dielectric grease inside the rubber boot. 2. Slide the protective rubber boot over the BNC connector. 3. Repeat procedure for the second transducer. ONICON Incorporated 727.447.6140 Page 29 onicon.com...

  • Page 30: Series Mechanical Installation

    IMPORTANT NOTE The 30 Series transit-time transducers should be installed with the cable connections pointed away from each other at installation. Transducer Imperial Side END VIEW Adjustable Stainless Pipe Steel Strap ONICON Incorporated 727.447.6140 Page 30 onicon.com...

  • Page 31: Two (2) Cross Mounting Installation For 30 Series Transducers

    5. Apply a small amount of coupling compound to the transducers. A packet of acoustic coupling compound was supplied with the transducers. Contact ONICON if you need more compound. 6. Insert and tighten the transducers into the brackets. DO NOT over-tighten the screw.
  • Page 32 7. Repeat procedure for the second transducer. IMPORTANT NOTE For use with conduit, carefully remove the strain relief fitting from the pre-terminated end of the cable. Connect the 1/2" conduit directly to the transducer. ONICON Incorporated 727.447.6140 Page 32 onicon.com...

  • Page 33: One (1) Cross Mounting Installation For 30 Series Transducers

    4. Tighten the assembly in place with the tightening screws. For horizontal pipe positions, hold the level up to the top of the bracket to ensure the angle is correct. Imperial Side Adjustable Stainless Pipe Steel Strap ONICON Incorporated 727.447.6140 Page 33 onicon.com...
  • Page 34 8. Remove the mylar and lay it out on a flat surface. Either measure the exact distance half-way between the overlap edge and the mark at the overlap or fold the guide from the overlap edge to overlap mark and draw a line at the fold or halfway point. Overlap edge mark ONICON Incorporated 727.447.6140 Page 34 onicon.com...
  • Page 35 The bracket is centered on the pipe when the bottom edges of both stainless steel side plates on the bracket are in full contact with the pipe surface. For horizontal pipe positions, hold the level up to the top of the bracket to ensure the angle is correct. Separation Distance Pipe ONICON Incorporated 727.447.6140 Page 35 onicon.com...
  • Page 36 14. Apply a small amount of coupling compound to the transducers. A packet of acoustic coupling compound was supplied with the transducers. Contact ONICON if you need more compound. 15. Insert and tighten the transducers into the brackets. DO NOT over-tighten the screw.

  • Page 37: Connecting The Transducer Signal Cables

    3.4 CONNECTING THE TRANSDUCER SIGNAL CABLES ONICON F-4300 transducer cables are special purpose triaxial cables. Care must be taken when installing the cables to ensure that electrical noise will not affect the performance of the meter. The cables must NOT be bundled or run in conduit with any other signal or power cables.

  • Page 38: Electrical Installation

    110-240 VAC, 50/60 Hz, 10 VA max WARNING Conduit openings in the F-4300 enclosure must be closed with UL listed fittings applicable to NEMA 4X enclosures. WARNING The protective earth connection must be made as shown in Section 3.5.2. Failure to do so will result in an increased risk of injury.

  • Page 39: Power And Output Signal Wiring Details

    3.5.2 Power and Output Signal Wiring Details WARNING Turn off mains power at the source prior to making power connections to the F-4300. Contact with exposed live wiring may result in electric shock, burns and/or serious injury. F-4300 FLOW METER INPUT POWER AND OUTPUT CONNECTION DETAIL...

  • Page 40: Transducer And Sensor Wiring Details

    1. Transducer (triaxial) cables must not be bundled or run in conduit with any other signal or power cables 2. When using conduit, run transducer cables from transducers through conduit into electronics enclosure. DO NOT cut or splice triaxial cable termination ONICON Incorporated 727.447.6140 Page 40 onicon.com...

  • Page 41: Section 4.0 Start - Up

    4.1 NAVIGATING THE RUN MODE & PROGRAMMING PAGES The diagram on the next page shows the F-4300 menu system. Arrows show the four directions to navigate between menu boxes. Pressing a corresponding keypad arrow will move to the next item in the direction shown.

  • Page 42: Run Mode & Programming

    Restore Defaults New Password 0000 --Simulation--------  Test Actual Flow 250USG/m 4-20mA Flow 5.60mA Relays 1 2 3 4 5 6 --Configuration----- Serial# 12345 Utility 1.26.0.5 Transit Time 1.38.1 CommBoard 1.18.0 Relays Analog Out ONICON Incorporated 727.447.6140 Page 42 onicon.com...

  • Page 43: Run Mode Icons

    DESCRIPTION Message waiting. Press to view message. Data logging off. Data logging on. USB file download. File download complete. Download error. Ultrasonic echo established. No echo, empty pipe. No sensors attached / wrong settings. ONICON Incorporated 727.447.6140 Page 43 onicon.com...

  • Page 44: Run Mode

    Average 34.82 USG/m Up to 365 days are stored, and after that date, the oldest data is removed to Maximum 52.20 USG/m make room for the newest. Max Time 11:08:00 Minimum 0.000 USG/m Min Time 9:15:00 ONICON Incorporated 727.447.6140 Page 44 onicon.com...
  • Page 45 See section 4.5 for instructions on changing this value. If the password has been changed from the default, use the directional buttons to change the digit values, then the to accept the password and move into the programming menu. ONICON Incorporated 727.447.6140 Page 45 onicon.com...

  • Page 46: Programming Menu

    Any changes made in these menus are automatically saved and take effect immediately. Your meter should have arrived pre-programmed by ONICON, so please use caution when changing any parameters which affect the setup of the meter, such as the pipe material or pipe size.
  • Page 47 All of these settings are pre-configured by ONICON before shipment. These Temp 77.0 F settings should only be adjusted if the process conditions provided to ONICON Pipe at time of order were incorrect, or different transducers were supplied for field 4.5000 in...
  • Page 48 This distance is defined as the measurement between the inside of both transducers. Because the meter comes pre-programmed from ONICON, this number is already defined for you on the Site Installation Details sheet. However, if any of the factors listed above are changed in the field, you will need to change the transducer spacing to the new number provided here.
  • Page 49 Example: Systems with high concentrations of undissolved gasses will cause fluctuations in signal strength when the gasses move past the ultrasonic signal. If a complete loss of signal is experienced, the F-4300 will hold the last valid reading for the duration of the LOS Time.
  • Page 50 The Data Logging page allows configuration of the data logger. Options include  Log Site ID what is being logged, how often it is being logged, and the date settings. The F-4300's internal log memory can be saved up to 128MB, 26 million data Mode Flow points.
  • Page 51 File Format – Define how you will want the data presented when downloaded. Interval 30sec Choose .LG2 when you will be looking at the log data with the ONICON Logger Data Log Logging Utility software. Choose .CSV when you will be loading the data directly into an Excel spreadsheet for manipulation and graphing.
  • Page 52 4.5 PROGRAMMING MENU PAGES (Continued) Retrieving Log File --Data Logging------- Plug a USB Flash Memory Drive (one is included with the F-4300) into the  Log Site ID USB Type-A output port on the panel of the meter. The instrument display will show the data download icon until the log file is transferred to the memory card.
  • Page 53 Restore Defaults – Selecting YES will cause all of the programming settings to revert to the factory default. These defaults are different than the programming ONICON performed at the factory before the meter was shipped. New Password – This function allows a new password to be set. This password protects the programming menu access from the Main Display.
  • Page 54 F-4300. All of the values in this menu are read-only. Utility 1.26.0.5 Serial # - Serial number of the F-4300. This value is also present on the outside of Transit Time 1.38.1 the enclosure, and inside the door.

  • Page 55: Section 5.0 Bacnet Ms/Tp

    Termination: 120 ohms or none (Default: none) Jumper JP1 position 1 + 2 = OFF Jumper JP1 position 2 + 3 = ON Biasing: None Flow control: None RS485 Output Card with Jumper JP1 ONICON Incorporated 727.447.6140 Page 55 onicon.com...

  • Page 56: Bacnet Protocol Implementation Conformance Statement

    Device Address Binding: Is static device binding supported Networking Options: Not supported Character Sets Supported: ISO 10646 (UTF-8) Gateway Options: Not supported Network Security Options: Non-secure Device – is capable of operating without BACnet Network Security ONICON Incorporated 727.447.6140 Page 56 onicon.com...
  • Page 57 Description Customer Description 32 char. Max. Local Time Device current time Location Customer location 32 char. Max. Local Date Device current date UTC Offset -300 Daylight Savings Status False Max Master Max Info Frames ONICON Incorporated 727.447.6140 Page 57 onicon.com...
  • Page 58 Out of Service FALSE Units Various Property List Optional Properties Supported Description Analog-value #, Name {NULL, NULL, NULL, NULL, NULL, NULL, NULL, NULL, Priority Array NULL, NULL, NULL, NULL, NULL, NULL, NULL, NULL} Relinquish Default ONICON Incorporated 727.447.6140 Page 58 onicon.com...
  • Page 59 Object Identifier Object Name Description BV 1 Reset Volume Total Reset volume total BV 2 Relay 1 State Indicates current state of relay 1 BV 3 Relay 2 State Indicates current state of relay 2 ONICON Incorporated 727.447.6140 Page 59 onicon.com...
  • Page 60 0 – sensor good 1 – low signal 2 – sensor open MSV 1 Flow Sensor Status 3 – sensor short 4 – sensor check calibration 5 – sensor relay fault 6 – sensor system fault ONICON Incorporated 727.447.6140 Page 60 onicon.com...

  • Page 61: Section 6.0: Modbus

    RS485 Output Card with Jumper JP1 6.2 MODBUS TCP/IP Transceiver: 10/100 Base-TX and RJ45 connector Port: 502 Parity: None MODBUS MAC Address range: 1-255 (Default: 017) Baud rate: 38400 IP Address: 192.168.255.1 Mask: 255.255.0.0 Gateway: 192.168.0.1 ONICON Incorporated 727.447.6140 Page 61 onicon.com...

  • Page 62: Ip Address Setting (Ipv4)

    F - 4300 CLAMP - ON ULTRASONIC FLOW METER 6.2.1 IP Address Setting (IPv4) Changing the IP address of the F-4300 requires the use of a PC with an Ethernet card and an available port. The default IP configuration of the F-4300 is as follows: IP Address 192.168.255.1...
  • Page 63 After pressing the update button, if you need to access these settings again, you must go back into your PC’s IP setting page and change the IP address and subnet to match the network the F-4300 is set for.

  • Page 64: Ip Address Setting (Ipv6)

    02 - Read Discreet Input(s) 04 - Read Input Register(s) 05 - Write Single Coil 06 - Write Single Register 15 - Write Multiple Coils 16 - Write Multiple Registers 17 - Report Slave ID ONICON Incorporated 727.447.6140 Page 64 onicon.com...

  • Page 65: Modbus Memory Map

    Relay # 1 closed. Turn coil to OFF (0) to latch Pulse/Relay # 3 open. Aux Output 3 Coil Read/Write Pulse/Relay # 3 must have been programmed for "MODBUS Coil" in the commissioning menu. ONICON Incorporated 727.447.6140 Page 65 onicon.com...
  • Page 66 10005 Output 5 Discreet Input Only 2-Indicates Pulse/Relay #2 is OFF (Open) Status Pulse/Relay Read 1-Indicates Pulse/Relay #1 is ON (Closed) 10006 Output 6 Discreet Input Only 2-Indicates Pulse/Relay #2 is OFF (Open) Status ONICON Incorporated 727.447.6140 Page 66 onicon.com...
  • Page 67 Flow Rate - ft³/s Input Register Register (2 of 2) Floating Point 30117 Flow Rate - ft³/hr Input Register Register (1 of 2) Floating Point 30118 Flow Rate - ft³/hr Input Register Register (2 of 2) ONICON Incorporated 727.447.6140 Page 67 onicon.com...
  • Page 68 Last 24 Hour Average Flow Floating Point 30139 Input Register Rate - USG/sec Register (1 of 2) Last 24 Hour Average Flow Floating Point 30140 Input Register Rate - USG/sec Register (2 of 2) ONICON Incorporated 727.447.6140 Page 68 onicon.com...
  • Page 69 Input Register Rate - L/min Register (2 of 2) Floating Point 30301 Volume Total - Gallons Input Register Single mode for Onicon Register (1 of 2) Floating Point 30302 Volume Total - Gallons Input Register Register (2 of 2) ONICON Incorporated 727.447.6140 Page 69 onicon.com...
  • Page 70 Sensor Echo Too Close Sensor Echo Loss Sensor Open Sensor Short 30923 Sensor A Status Input Register Index (0-9) Sensor Check Calib Sensor Relay Fault Sensor System Fault Sensor Check Sensor (PSL) Sensor Not Tracking (PSL) ONICON Incorporated 727.447.6140 Page 70 onicon.com...
  • Page 71 US Gallons US Million Gallons Imperial Gallons 30950 Volume Units Input Register Index (0 to 7) Imperial Million Gallons Cubic Meters Litre Barrel Second Minute 30951 Time Units Input Register Index (0 to 3) Hour ONICON Incorporated 727.447.6140 Page 71 onicon.com...

  • Page 72: Report Slave Id Function Code

    The MODBUS implementation of the F-4300 supports the use of function code 17, Report Slave ID. When a message is sent to the F-4300 requesting to report the slave ID, the following information is returned after converting the HEX meter response to ASCII: “Transit-Time Flowmeter - XXXXXX”...

  • Page 73: Section 7.0: Commissioning

    Please read these helpful hints before proceeding with the commissioning procedure on the next page. 1. ONICON flow meters are individually calibrated for a particular application. Be sure to verify the pipe size and location. 2. The ultrasonic flow sensing systems will not work with an empty pipe.

  • Page 74: Commissioning Worksheet

    ___________mA ___________mA output(s) __________VDC __________VDC __________VDC __________VDC 4-20 mA signal: _____________ _____________ _____________ _____________ Scaled output interval: __________GPM __________GPM __________GPM __________GPM Calculated flow rate: Flow rate displayed __________GPM __________GPM __________GPM __________GPM by control system. ONICON Incorporated 727.447.6140 Page 74 onicon.com...

  • Page 75: Section 8.0: Troubleshooting

    • Ensure triax cable shield is properly connected to ground. to electrical noise or poor • Ensure correct power input ground connection. signal quality. • Double-check sensor separation distance and contact ONICON for further assistance. • Adjust Calibration Menu / Min Flow setting. Variable speed drive •...

  • Page 76: Appendix A - Speed Of Sound In Pure Water Table ( Imperial Units )

    4975 192.0 88.9 5089 460.0 237.8 3937 94.0 34.4 4983 194.0 90.0 5087 470.0 243.3 3871 96.0 35.6 4990 196.0 91.1 5085 480.0 248.9 3806 98.0 36.7 4997 198.0 92.2 5082 490.0 254.4 3740 ONICON Incorporated 727.447.6140 Page 76 onicon.com...

  • Page 77: Appendix B - Speed Of Sound In Pure Water Table ( Si Units )

    1516.44 192.0 88.9 1551.10 460.0 237.8 1200.00 94.0 34.4 1518.70 194.0 90.0 1550.48 470.0 243.3 1180.00 96.0 35.6 1520.89 196.0 91.1 1549.82 480.0 248.9 1160.00 98.0 36.7 1523.00 198.0 92.2 1549.12 490.0 254.4 1140.00 ONICON Incorporated 727.447.6140 Page 77 onicon.com...

  • Page 78: Appendix C - Speed Of Sound In Glycol Water Table

    5367 1636 ETHYLENE GLYCOL 5374 1638 ETHYLENE GLYCOL 5381 1640 ETHYLENE GLYCOL 5394 1644 ETHYLENE GLYCOL 5407 1648 ETHYLENE GLYCOL 5420 1652 ETHYLENE GLYCOL 5433 1656 ETHYLENE GLYCOL 5446 1660 ETHYLENE GLYCOL 5528 1685 ONICON Incorporated 727.447.6140 Page 78 onicon.com...

  • Page 79: Appendix D - Pipe Charts

    55.8 0 0 .7 3 55.6 4 0 .8 1 55.4 8 0 .8 9 55.32 0 .9 7 55.16 1 .0 5 55.00 ONICON Incorporated 727.447.6140 Page 79 onicon.com **R EDU CE I.D . BY DIMEN SION SH OWN...
  • Page 80 17.438 1.281 17.000 1.500 16.500 1.750 16.064 1.968 22.000 20.250 .875 19.750 1.125 19.250 1.375 18.750 1.625 18.250 1.875 17.750 2.125 24.000 22.064 .968 21.564 1.218 20.938 1.531 20.376 1.812 19.876 2.062 19.314 2.343 ONICON Incorporated 727.447.6140 Page 80 onicon.com...
  • Page 81 20.24 22.54 1.27 20.00 23.02 1.39 20.24 23.02 1.51 20.00 26.90 1.31 24.28 26.90 1.45 24.00 27.76 1.75 24.26 27.76 1.88 24.00 33.10 1.55 30.00 33.46 1.73 30.00 39.60 1.80 36.00 40.04 2.02 36.00 ONICON Incorporated 727.447.6140 Page 81 onicon.com...
  • Page 82 0.271 8.125 7.725 0.200 8.125 7.785 0.170 8.625 8.000 0.313 8.000 7.812 0.094 10.125 9.449 0.338 10.125 9.625 0.250 10.125 9.701 0.212 10.000 9.812 0.094 12.125 11.315 0.405 12.125 11.565 0.280 12.125 11.617 0.254 ONICON Incorporated 727.447.6140 Page 82 onicon.com...
  • Page 83 ONICON ONICON Incorporated • 11451 Belcher Road South • Largo, FL 33773 • USA (P) 727.447.6140 • (F) 727.442.5699 • onicon.com...
