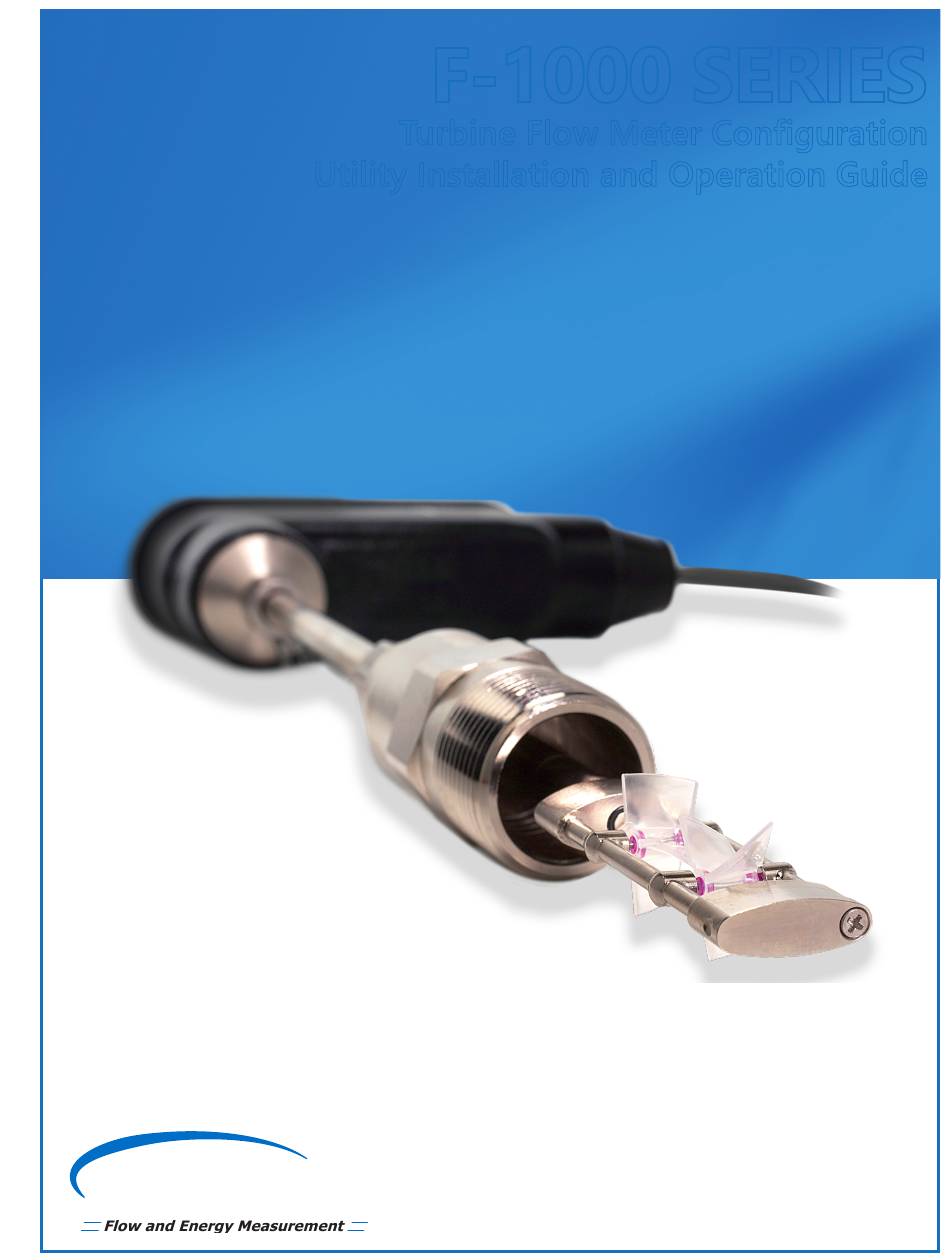

- Page 1 F-1000 SERIES Turbine Flow Meter Configuration Utility Installation and Operation Guide ONICON...
-
Page 2: Table Of Contents
Pipe Selection .............................13 3.3.3 Flow Settings ............................17 3.3.4 Frequency Output ..........................19 3.3.5 Scaled Pulse Output ........................21 3.3.6 Turbine Rotation Test ........................22 3.3.7 Real Time Data ...........................25 3.3.8 Statistics ...............................27 3.3.9 Status ..............................29 3.3.10 Firmware Update ..........................31 ONICON Incorporated 727.447.6140 Page 2 onicon.com... -
Page 3: Acquiring, Installing, And Updating The Configuration Utility
“TurbineMeter_Configuration_XXX_XXX_XXX.exe.” The “XXX_XXX_XXX” in the file name will appear as numbers. The specific numbers you see are based on the revision of the software provided by ONICON. Once this .exe file is opened, please follow the on-screen prompts to complete the installation of the program on your computer. - Page 4 3. Complete the user information and click “Next.” 4. Select the installation location and click “Next.” 5. Click “Install” to proceed with the installation. The installation may take a few minutes, and once complete, a new screen will appear. ONICON Incorporated 727.447.6140 Page 4 onicon.com...
-
Page 5: Updating The Configuration Utility
F - 1000 SERIES TURBINE METER CONFIGURATION UTILITY AND INSTALLATION GUIDE 6. Click “Finish” to close the installation wizard. You will now have an ONICON “Smart Turbine Meter” Icon on your desktop which can be used to quickly open the utility. You can also locate the configuration utility in the file location specified during the installation process as shown in the installation sequence. -
Page 6: Usb Cable And Driver Installation
Manager, open the “Other devices” tree, right-click on the “Turbine Meter,” and select “Update Driver Software…”: In the “Update Driver Software” screen, click “Browse…” and select the folder for the Configuration Tool which was provided by ONICON. Make sure the “Include Subfolder” check box is enabled and click “Next”. Driver Location Selection Once the location of the driver is specified, it will install. - Page 7 This completes the process to get your computer ready to run the Configuration Utility and interface with the insertion turbine meter. Please do not hesitate to contact ONICON Technical Support at 727-447-6140, or email at service@onicon.com, if problems persist with the driver installation.
-
Page 8: Usb Cable Connection To The Insertion Turbine Meter
– such that a moment force is applied to the connector. Please be sure the cable is only pushed straight in or pulled straight out. ONICON Incorporated 727.447.6140 Page 8 onicon.com... -
Page 9: How To Use The Configuration Utility
Their color and text will change depending on the current operating status of the meter. A QR code is also available which will link your cellphone to ONICON’s website 3.2.1 CONNECTION INDICATOR This indicator provides information about the current status of the hardware connection to the turbine meter. -
Page 10: Status Indicator
The mode indicator notifies the user if the meter is in “Running” mode or “Calibration” mode. “Calibration” mode is only used by ONICON during a factory calibration. If you receive a meter which states the mode is “Calibration,” please contact ONICON immediately. -
Page 11: Programming/Informational Tabs
Manufacture Date (Read Only) The date that your meter was manufactured at ONICON. This date may not match the calibration date if the meter has been returned to ONICON for recalibration service after the original manufacture date. - Page 12 This is the version number of the ONICON Insertion Turbine Meter firmware. This number is also available on the window of the program. ONICON may ask for this number if you are experiencing problems with the utility or turbine meter.
-
Page 13: Pipe Selection
For these reasons, the meter type is set at the factory and is read-only. If “F-1101 and F-1134” is the meter type, then there will be no further information within the Pipe Selection tab. ONICON Incorporated 727.447.6140 Page 13 onicon.com... - Page 14 The white box above the “Select Standard Pipe” button will auto-fill with the description of the selected pipe: Selecting pipe size and confirming via “Select Standard Pipe” button ONICON Incorporated 727.447.6140 Page 14 onicon.com...
- Page 15 • The “Dry Tap Kit” is a ball valve assembly designed to be installed during new construction or when the pipe was drained. An example of a “dry tap kit” is an ONICON INSTL0001-FMD for carbon steel pipe. The valve assembly height assumed for this calculation is 5.5 inches.
- Page 16 • The “Hot Tap Kit” is a ball valve assembly designed to be installed after the pipe was filled, allowing a wet tap drill to cut the pipe without draining it first. An example is an ONICON INSTL0002-FMH for carbon steel pipe. The valve assembly height assumed for this calculation is 6.875.
-
Page 17: Flow Settings
After entering the value on this page, press the “Set” button to permanently program the meter with this output scale. ONICON recommends that the analog output range is set to 1.25 times larger than the maximum realistic flow rate which could occur in the system. - Page 18 The conversion factor was set to 500. The full-scale flow rate in user units was set to 5,000,000. The number is converted to gpm as follows: Full Scale in Defined (units per hour) Full Scale Equivalent (gpm) = 60 x Conversion Factor ONICON Incorporated 727.447.6140 Page 18 onicon.com...
-
Page 19: Frequency Output
The frequency output is available on every version of the turbine meter. The frequency output is typically only used with an ONICON display or BTU meter as a digital input for flow rate and totalization, but it can also be used for diagnostics by measuring the speed (Hz) of the output with a multimeter. - Page 20 BTU meter or D-100/D-1200 flow display. When programming one of these peripherals to be used with an Insertion Turbine Meter, you must be prepared to enter this value so that the BTU Meter/Display can properly convert frequency pulses to flow rate and volume. ONICON Incorporated 727.447.6140 Page 20 onicon.com...
-
Page 21: Scaled Pulse Output
“pule overrun” alarm. A pulse overrun occurs when the meter is attempting to provide a scaled pulse faster than the duration allows. Please follow the on-screen instructions for determining if your pulse scaling and duration settings could cause a pulse overrun. ONICON Incorporated 727.447.6140 Page 21 onicon.com... -
Page 22: Turbine Rotation Test
Configuration Utility. Also, the relay output on the meter can be set to change state if an alarm was present. To enable the relay to close when there is an alarm, enable this feature in the “Meter Data” tab. ONICON Incorporated 727.447.6140 Page 22 onicon.com... - Page 23 “Meter Data” tab) and an alarm will be present in the “Status” tab. The meter will cease providing a flow rate signal on the frequency, scaled, and analog outputs. After changing this setting, press the “Set” button to accept the change. Turbine Rotation Test enable/disable options. ONICON Incorporated 727.447.6140 Page 23 onicon.com...
- Page 24 This parameter sets the time required for the turbine rotation alarm to disable after a turbine rotation alarm has already been enabled. The default time is 10 seconds. After the parameter is changed, press “Set” to confirm the changes. ONICON Incorporated 727.447.6140 Page 24 onicon.com...
-
Page 25: Real Time Data
Instantaneous Input Frequency Hz (Read Only) This frequency is an un-scaled output and requires the meter’s “Meter Factor” from the “Meter Data” tab in order to be converted to gpm. ONICON Incorporated 727.447.6140 Page 25 onicon.com... - Page 26 Selection” tab. If the meter is connected directly to a BMS via the analog output, or connected to an ONICON display or BTU meter, it should be verified that the reading in this parameter matches the BMS/ ONICON display or BTU meter. It should also, be confirmed that the units of measurement match between turbine meter and BMS/ONICON display or BTU meter.
-
Page 27: Statistics
If it is incrementing, then the problem lies in the wire connection, or the configuration of the BMS input. This value can only be reset at the ONICON factory during recalibration service. Total Gallons (Read Only) This value shows the number of gallons measured by the meter since operation. - Page 28 X period of time to a volume measurement acquired through the use of a BMS connected to the scaled output, or the volume reported by a local ONICON display or BTU meter. Run Seconds (Read Only) This value displays the length of the time the meter has been operational in seconds.
-
Page 29: Status
3.3.9 STATUS The status tab displays the current state of errors, warnings, and alarms present on the turbine meter. Any errors, alarms, and warnings will automatically disappear once their cause has been resolved. Status tab ONICON Incorporated 727.447.6140 Page 29 onicon.com... - Page 30 F - 1000 SERIES TURBINE METER CONFIGURATION UTILITY AND INSTALLATION GUIDE Errors (Read Only) The errors window will populate with messages which signify a problem with the operation hardware inside the insertion turbine meter. Please contact ONICON immediately if any error messages appear. Alarms (Read Only) When an alarm is present on this page, a message describing the problem will appear, and the status indicator at the top of the page will say “ALARM”...
-
Page 31: Firmware Update
This tab should not be used unless you are specifically instructed to do so by ONICON. ONICON ONICON Incorporated • 11451 Belcher Road South • Largo, FL 33773 • USA (P) 727.447.6140 • (F) 727.442.5699 • onicon.com DOC-0000681 February 2019...
