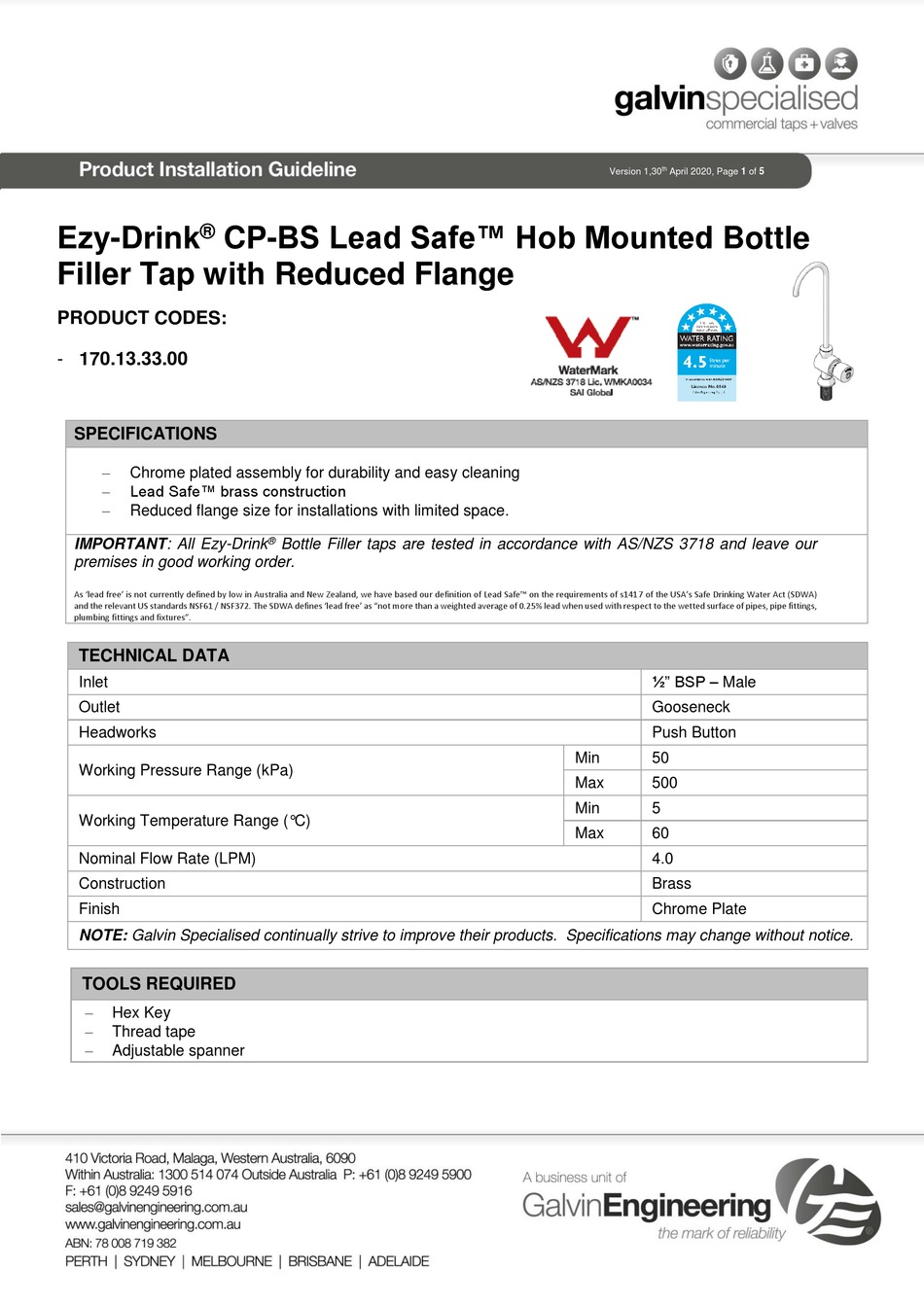

CP-BS Lead Safe™ Hob Mounted Bottle
®
Ezy-Drink
Filler Tap with Reduced Flange
PRODUCT CODES:
- 170.13.33.00
SPECIFICATIONS
Chrome plated assembly for durability and easy cleaning
Lead Safe™ brass construction
Reduced flange size for installations with limited space.
IMPORTANT: All Ezy-Drink
premises in good working order.
As 'lead free' is not currently defined by low in Australia and New Zealand, we have based our definition of Lead Safe™ on the requirements of s1417 of the USA's Safe Drinking Water Act (SDWA)
and the relevant US standards NSF61 / NSF372. The SDWA defines 'lead free' as "not more than a weighted average of 0.25% lead when used with respect to the wetted surface of pipes, pipe fittings,
plumbing fittings and fixtures".
TECHNICAL DATA
Inlet
Outlet
Headworks
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Construction
Finish
NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice.
TOOLS REQUIRED
Hex Key
Thread tape
Adjustable spanner
®
Bottle Filler taps are tested in accordance with AS/NZS 3718 and leave our
th
Version 1,30
April 2020, Page 1 of 5
½" BSP – Male
Gooseneck
Push Button
Min
50
Max
500
Min
5
Max
60
4.0
Brass
Chrome Plate
Advertisement
Table of Contents
Related Manuals for Galvin Specialised Ezy-Drink CP-BS Lead Safe
Summary of Contents for Galvin Specialised Ezy-Drink CP-BS Lead Safe
- Page 1 Working Pressure Range (kPa) Working Temperature Range (°C) Nominal Flow Rate (LPM) Construction Brass Finish Chrome Plate NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice. TOOLS REQUIRED Hex Key Thread tape ...
- Page 2 Rough-In Dimensions INSTALLATION IMPORTANT: Galvin Specialised products must be installed in accordance with these installation instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water and/or electrical supply conditions must also comply to the applicable national and/or state standards. Failing to comply with these provisions shall void the product warranty and may affect the performance of the product.
- Page 3 Version 1, 1 May 2020, Page 3 of 5 Version 1,30 April 2020, Page 3 of 5 Water Inlet 3. Secure bottle filler and connect water 4. Remove spout Remove spout from assembly as shown. Fit cup washer and nut. ...
- Page 4 Version 1, 1 May 2020, Page 4 of 5 Version 1,30 April 2020, Page 4 of 5 7. Test Once the bottle filler has been installed, turn on mains water and check for leaks and correct operation. TROUBLESHOOTING PROBLEM CAUSE RECTIFICATION Leaks...
- Page 5 Version 1, 1 May 2020, Page 5 of 5 Version 1,30 April 2020, Page 5 of 5 WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied. Galvin Engineering Pty.
