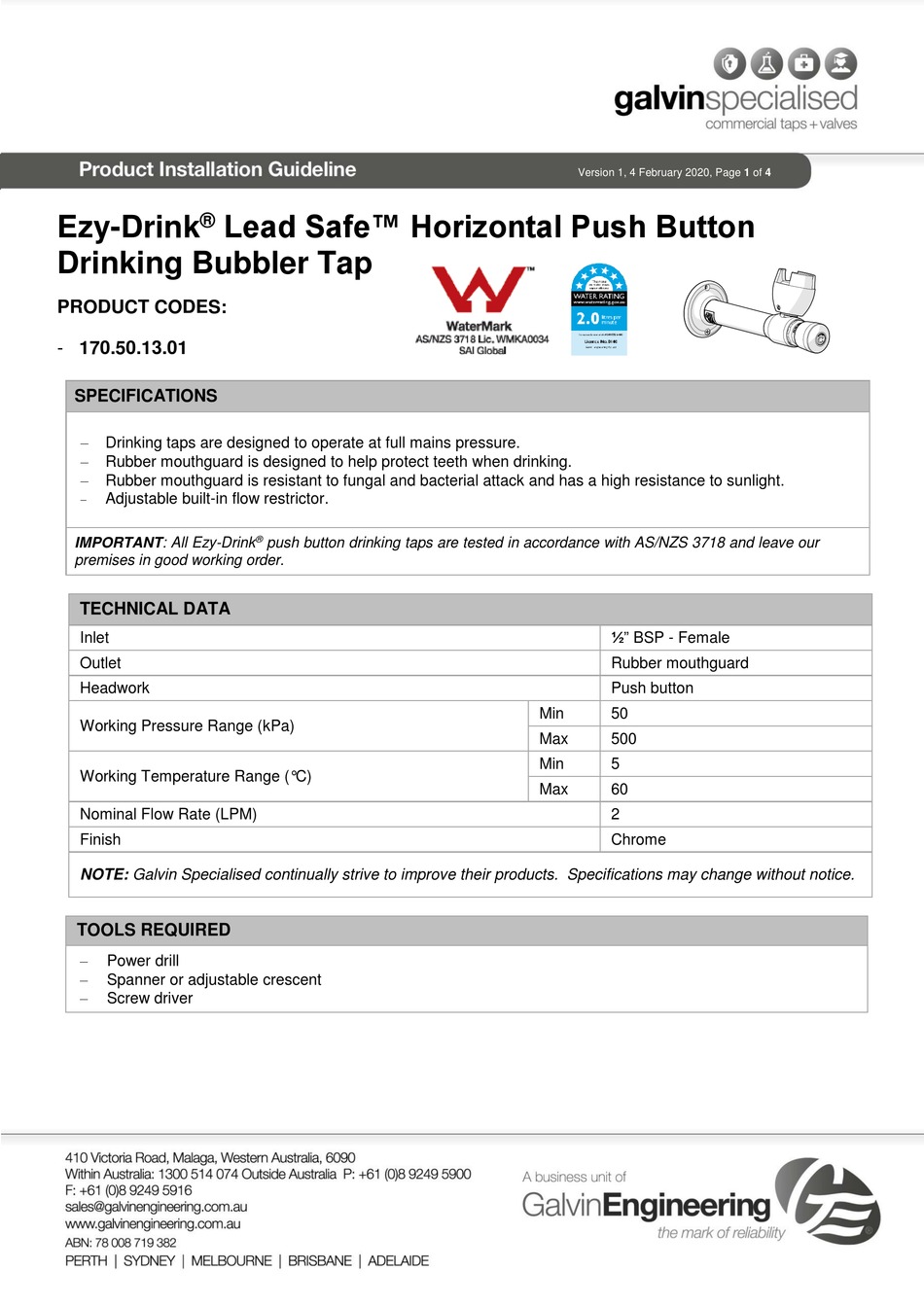

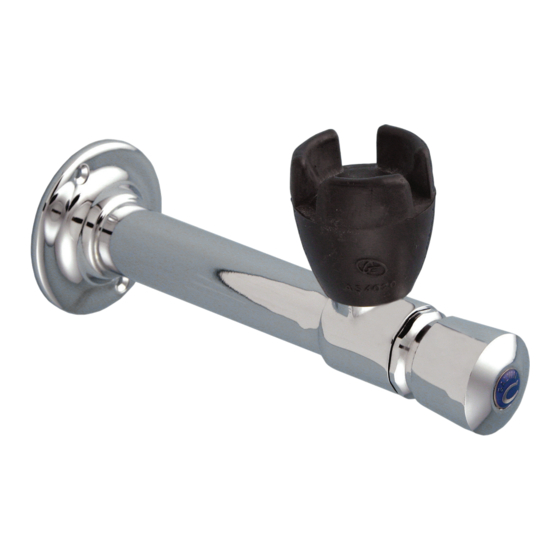

Lead Safe™ Horizontal Push Button
®
Ezy-Drink
Drinking Bubbler Tap
PRODUCT CODES:
- 170.50.13.01
SPECIFICATIONS
Drinking taps are designed to operate at full mains pressure.
Rubber mouthguard is designed to help protect teeth when drinking.
Rubber mouthguard is resistant to fungal and bacterial attack and has a high resistance to sunlight.
Adjustable built-in flow restrictor.
IMPORTANT: All Ezy-Drink
premises in good working order.
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Finish
NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice.
TOOLS REQUIRED
Power drill
Spanner or adjustable crescent
Screw driver
®
push button drinking taps are tested in accordance with AS/NZS 3718 and leave our
Version 1, 4 February 2020, Page 1 of 4
½" BSP - Female
Rubber mouthguard
Push button
Min
50
Max
500
Min
5
Max
60
2
Chrome
Advertisement
Related Manuals for Galvin Specialised Ezy-Drink Lead Safe 170.50.13.01
Summary of Contents for Galvin Specialised Ezy-Drink Lead Safe 170.50.13.01
- Page 1 Push button Working Pressure Range (kPa) Working Temperature Range (°C) Nominal Flow Rate (LPM) Finish Chrome NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without notice. TOOLS REQUIRED Power drill Spanner or adjustable crescent ...
- Page 2 Rough-In Dimensions INSTALLATION IMPORTANT: Galvin Specialised products must be installed in accordance with these installation instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water and/or electrical supply conditions must also comply to the applicable national and/or state standards. Failing to comply with these provisions shall void the product warranty and may affect the performance of the product.
- Page 3 Version 1, 4 February 2020, Page 3 of 4 3. Testing Once the drinking tap has been installed and tested for leaks, the water height may be adjusted to suit the available pressure. To adjust water flow 1. Remove the blanking screw 2.
- Page 4 Version 1, 4 February 2020, Page 4 of 4 WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied. Galvin Engineering Pty.
