T1DMK3F4(D): Configuration of DMP 734/734N Wiegand Modules:
1. Fasten spacers (provided) to pems that match the hole pattern for DMP Wiegand Modules (Fig. 2, pg. 3).
2. Mount DMP 734/734N modules into the correct positions (Fig. 2, pg. 3):
a. Remove DMP 734/734N board from the plastic housing. Use the base part of the housing to mount onto TDM1 (Fig. 2a, 2b, pg. 3).
b. Secure the base of DMP 734/734N to the spacers using provided 5/16" pan head screws.
c. Make all necessary connections before reassembling DMP 734/734N Wiegland modules.
3. Fasten TDM1 backplane to Trove1 enclosure utilizing hardware (provided).

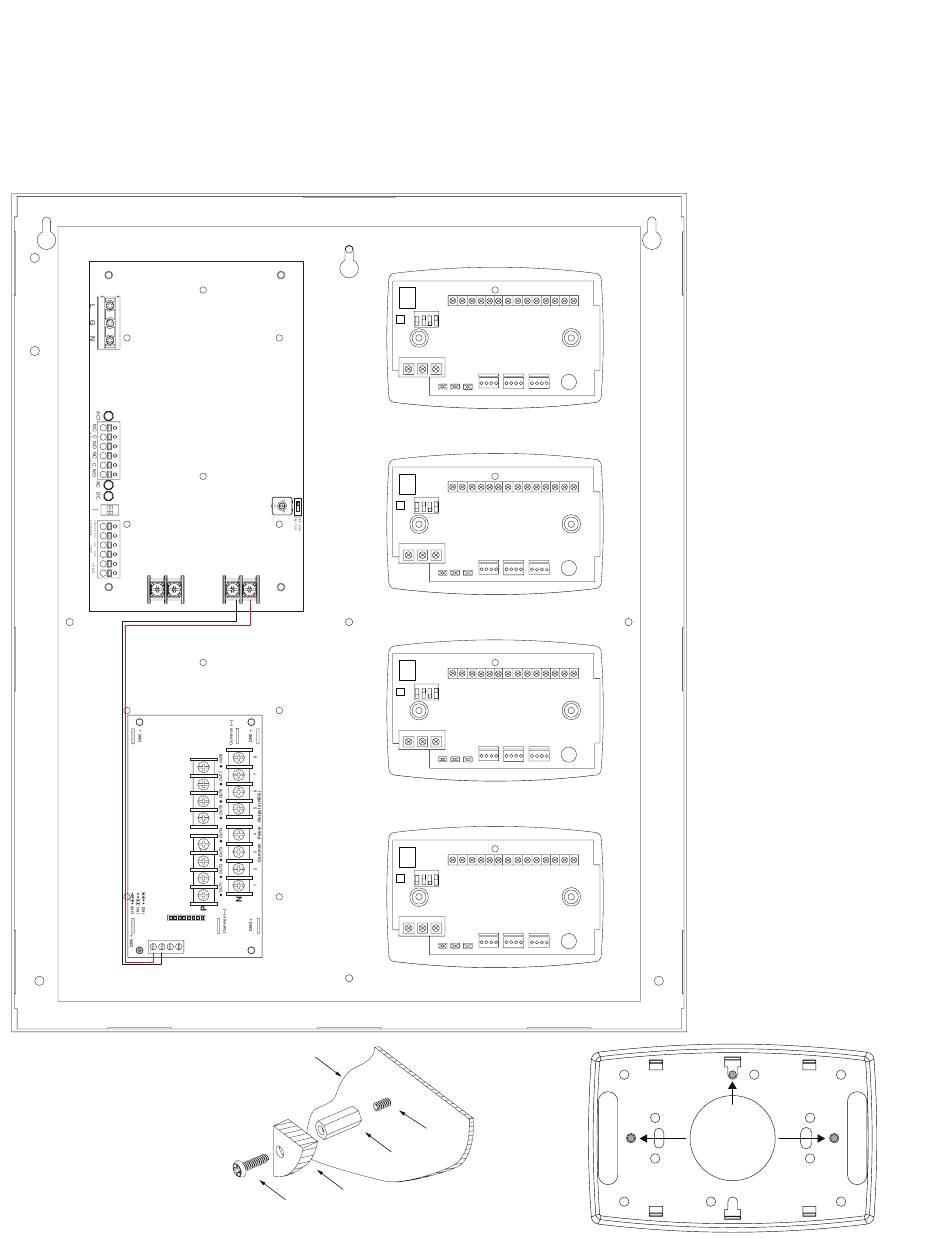

Fig. 2 - T1DMK3F4(D) Configuration
Altronix - eFlow6NB
- BAT +
Altronix
PDS8(CB)
+ INP1 -- + INP2 --
Altronix VR6 is mounted under PDS8(CB)
Trove DMP Kits Installation Guide
ON
- DC +
Backplane
Spacer
DMP 734 plastic housing
Pan Head
Screw
DMP 734 or 734N
Wiegand
DMP 734 or 734N
Wiegand
DMP 734 or 734N
Wiegand
DMP 734 or 734N
Wiegand
Fig. 2a
Pem
Mounting
Spacer
Placement
Fig. 2b
