Access & Power Integration

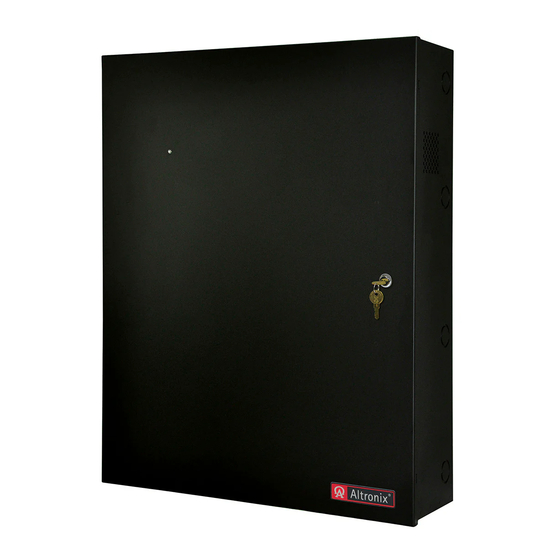

Altronix/Lenel-S2 (S2 Security Platform) Kits
Models Include:
T2SSK7F8
8 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with TSS2 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) ACM8 - Fused Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8 - Dual Input Fused Power Distribution Module
- One (1) RSB1 - Rocker Switch Bracket with One (1) Rocker Switch
(Not evaluated by UL)
T2SSK75F14
14 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with TSS2 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) eFlow102NB - Power Supply/Charger
- Two (2) ACM8 - Fused Access Power Controllers
- Two (2) PD8UL - Fused Power Distribution Modules
- One (1) RSB2 - Rocker Switch Bracket with Two (2) Rocker Switches
(Not evaluated by UL)
T3SSK75F28
28 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove3 enclosure with TSS3 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) eFlow102NB - Power Supply/Charger
- Three (3) ACM8 - Fused Access Power Controllers
- One (1) ACM4 - Fused Access Power Controller
- Two (2) PD16W - Fused Power Distribution Modules
- One (1) RSB2 - Rocker Switch Bracket with Two (2) Rocker Switches
(Not evaluated by UL)
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TSS_062223
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
T2SSK7F8D
8 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove2 enclosure with TSS2 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) ACM8CB - PTC Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8CB - Dual Input PTC Power Distribution Module
- One (1) RSB1 - Rocker Switch Bracket with One (1) Rocker Switch
(Not evaluated by UL)
T2SSK75F14D
14 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove2 enclosure with TSS2 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) eFlow102NB - Power Supply/Charger
- Two (2) ACM8CB - PTC Access Power Controllers
- Two (2) PD8ULCB - PTC Power Distribution Modules
- One (1) RSB2 - Rocker Switch Bracket with Two (2) Rocker Switches
(Not evaluated by UL)
T3SSK75F28D
28 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove3 enclosure with TSS3 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) eFlow102NB - Power Supply/Charger
- Three (3) ACM8CB - PTC Access Power Controllers
- One (1) ACM4CB - PTC Access Power Controller
- Two (2) PD16WCB - PTC Power Distribution Modules
- One (1) RSB2 - Rocker Switch Bracket with Two (2) Rocker Switches
(Not evaluated by UL)
More than just power.™
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix TROVE T2SSK7F8
Summary of Contents for Altronix TROVE T2SSK7F8
- Page 1 8 Door Kit with PTC Outputs Fully assembled kit includes: Fully assembled kit includes: - Trove2 enclosure with TSS2 Altronix/Lenel-S2 (S2 Security Platform) backplane - Trove2 enclosure with TSS2 Altronix/Lenel-S2 (S2 Security Platform) backplane - One (1) eFlow104NB - Power Supply/Charger...
-
Page 2: Configuration Chart
Overview: Altronix Trove S2 kits are pre-assembled and consist of Trove enclosures/backplanes with factory installed Altronix power supply/chargers and sub-assemblies. Kits accommodate Lenel-S2 (S2 Security Platform) S2-INST Installation Kit(s) for S2 Network Node for up to eight (8) (T2SSK7F8(D)), fourteen (14) (T2SSK75F14(D)) or twenty-eight (28) (T3SSK75F28(D)) doors in a single enclosure. - Page 3 OUT4 OUT5 OUT6 OUT7 OUT8 Common (--- ) Common (--- ) DM2 + DM2 + Common Power Outputs (NEG) Altronix VR6 is mounted under PDS8(CB) Fig. 2a Lock nut Backplane S2-INST Bracket Trove S2 Kits Installation Guide - 3 -...
- Page 4 INPUT IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND Altronix ACM8(CB) MAIN 10A 250V NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM...
- Page 5 2. Attach S2-INST to backplane with lock nuts (provided) (Fig. 4a, pg. 5). 3. Mount backplane to enclosure with hardware. 4. Fasten TSS3 backplane to Trove3 enclosure utilizing hardware (provided). Fig. 4 Altronix eFlow104NB S2-INST Installation Kit For S2 Network Node...
- Page 6 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
- Page 7 T2SSK7F8(D) and T2SSK75F14(D) Enclosure Dimensions (H x W x D): 27.25” x 21.75” x 6.5” (692.2mm x 552.5mm x 165.1mm) 21.50” (546.1mm) 2.00” (50.8mm) 2.00” (50.8mm) 5.25” (133.35mm) 3.5”(88.9mm) 3.5”(88.9mm) 5.25” (133.35mm) 0.685” (17.4mm) 1.25” Knockouts 0.5625” (14.3mm) (31.8mm) 1.77” 1.125”...
- Page 8 (50.8mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IITrove SS Kits F22W MEMBER - 8 -...
