T2DMK7F8(D): Configuration of DMP 734/734N Wiegand Modules:
1. Fasten spacers (provided) to pems that match the hole pattern for DMP 734/734N Wiegand Modules (Fig. 3, pg. 4).
2. Mount DMP 734/734N modules into the correct positions (Fig. 3, pg. 4):
a. Remove DMP 734/734N board from the plastic housing. Use the base part of the housing to mount onto TDM2 (Fig. 3a, 3b, pg. 4).
b. Secure the base of DMP 734/734N to the spacers using provided 5/16" pan head screws.
c. Make all necessary connections before reassembling DMP 734/734N Wiegland modules.
3. Fasten TDM2 backplane to Trove2 enclosure utilizing hardware (provided).

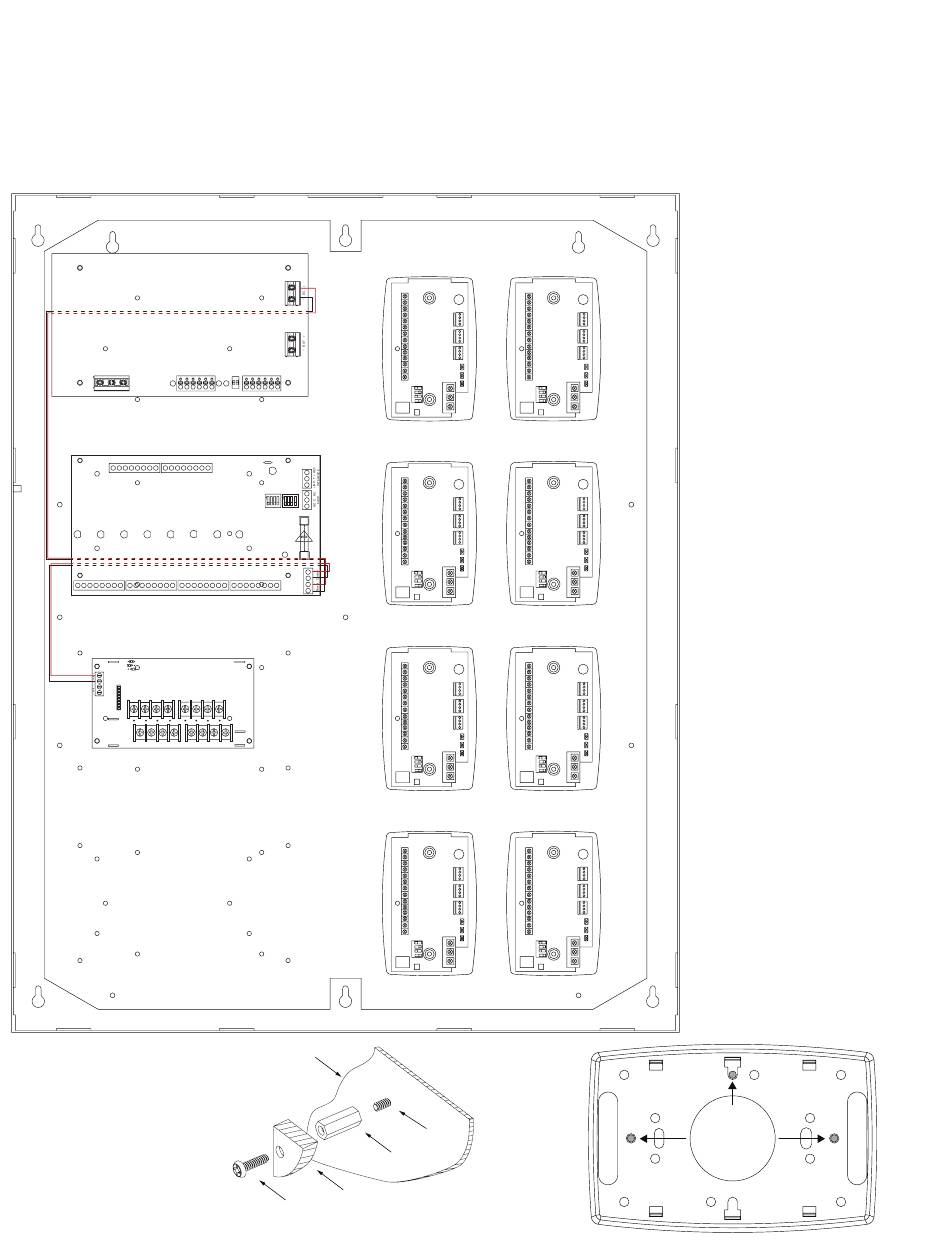

Fig. 3 - T2DMK7F8(D): Configuration
Altronix - eFlow104NB
L G N
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
1 2 3 4 5 6
Altronix ACM8(CB)
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5
PWR1 +
OFF
IN1
IN2
Altronix PDS8(CB)
P
OUT1 OUT2 OUT3 OUT4
COM ---
N
PWR2 +
1 2 3 4
Common Power Outputs (NEG)
Altronix VR6 is mounted under PDS8(CB)
- 4 -
FACP
TRIGGER
TRG
INPUT
7 8
O N O N O N O N
1 1 2 2 3 3 4 4 1 1 2 2 3 3 4 4
MAIN
10A 250V
OUTPUT 6 OUTPUT 7 OUTPUT 8
PWR1 +
OUT5 OUT6 OUT7 OUT8
COM ---
PWR2 +
5 6 7 8
Backplane
DMP 734 plastic housing
Pan Head
Screw
DMP 734 DMP 734
or 734N or 734N
Wiegand Wiegand
DMP 734 DMP 734
or 734N or 734N
Wiegand Wiegand
DMP 734 DMP 734
or 734N
or 734N
Wiegand
Wiegand
DMP 734 DMP 734
or 734N or 734N
Wiegand Wiegand
Fig. 3a
Pem
Spacer
Mounting
Spacer
Placement
Trove DMP Kits Installation Guide
Fig. 3b
