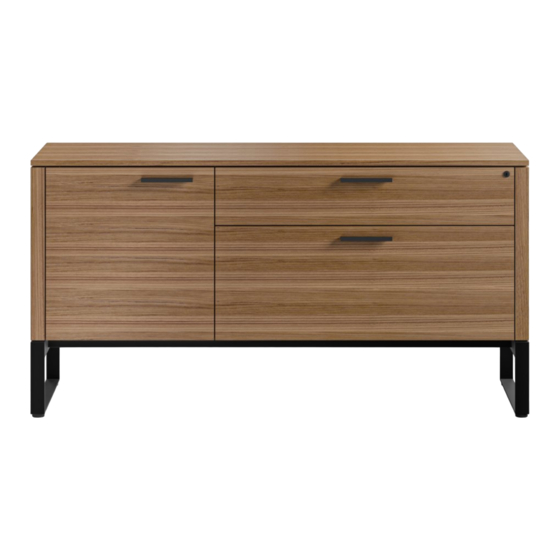

- Page 1 LINEA 6220 ™ MULTIFUNCTION CABINET INSTRUCTION MANUAL LET’S GET STARTED. DESIGN MATTHEW WEATHERLY...
- Page 3 Congratulations on the purchase of your Linea Multifunction Cabinet 6220 from BDI. Your multifunction cabinet has been designed to provide a lifetime of enjoyment. This manual will provide you with assembly instructions and other helpful information to ensure that you get the most out of your product. Please save it for future reference.
- Page 4 HARDWARE AND COMPONENTS Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. Do not use power tools for the assembly of this product.
- Page 5 HARDWARE AND COMPONENTS PART # PART # DESCRIPTION Leg Frame DESCRIPTION Cabinet QUANTITY QUANTITY PART # PART # DESCRIPTION DESCRIPTION Spanner Tube Pull QUANTITY QUANTITY PART # PART # DESCRIPTION Adjustable Shelf DESCRIPTION Removable Back Panel QUANTITY QUANTITY NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 5...
-
Page 6: Step 1. Assemble The Base
(C3) Spanner Tubes. Slide the flange on the (C2) Legs into the (C3) Spanner Tubes. T1-HEX WRENCH Fasten the (C2) Legs to the (C3) Spanner Tubes using 4 (H1) Screws. NOTE: Leave the screws loose until final base to H1-SCREW case assembly. 6 | BDIUSA.COM LINEA 6220... - Page 7 2 PERSON TASK STEP 2. ATTACH BASE TO CABINET ASSEMBLY With help from another person, place the PART/DESCRIPTION (C1) Cabinet upside down on a non-marring surface (carpet). T1-HEX WRENCH NOTE: Do not tighten until all the screws are in place. Place the Base on the bottom side of the (C1) Cabinet and thread in 6 (H2) Screws thru H2-SCREW...
- Page 8 NOTE: Drawers have an interlocking mechanism to prevent both drawers from being open at the NOT INCLUDED same time. Phillips Screwdriver Close the bottom drawer, then open the top drawer and install the (C4) Pull. 8 | BDIUSA.COM LINEA 6220...
- Page 9 STEP 4. INSTALL ADJUSTABLE SHELF ASSEMBLY Install the (C5) Adjustable Shelf. You may adjust the (C5) Adjustable Shelf position by pulling the 4 (H5) Shelf Pins out and relocating them. Shelf pins STEP 5. INSTALL REMOVABLE BACK PANEL ASSEMBLY Install the (C6) Removable Back Panel by positioning the panel under the grooves on the underside of the cabinet top panel.
-
Page 10: Fine Tuning
Letter/A4 Legal Grooves Your Linea Multifunction Cabinet is equipped with built-in levelers. Dial down one or more levelers (by hand) until you attain a level stance. Dial down 10 | BDIUSA.COM LINEA 6220... -
Page 11: Care And Maintenance
While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please take care to avoid positioning your BDI cabinet in any area with extensive direct sunlight. -
Page 12: Warranty
WARRANTY BDI warrants to the original purchaser that for the below-stated warranty term, BDI will repair or replace any product, part, or component covered by this warranty that fails under normal use as a result of a defect in material or workmanship. BDI will repair or replace the aforementioned product, part or component with a comparable product, part or component.
