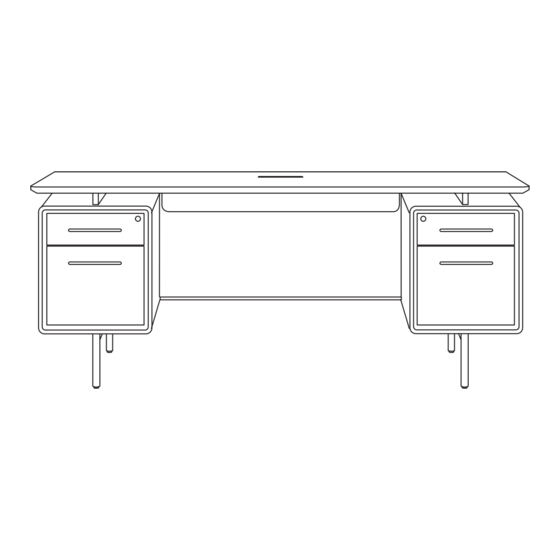

BDI LINQ 6821 Instruction Manual

Desk
Hide thumbs

Advertisement

Quick Links

Download this manual
LINQ
6821
™
DESK
INSTRUCTION MANUAL
LET'S GET STARTED.
DESIGN MATTHEW WEATHERLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the LINQ 6821 and is the answer not in the manual?

Questions and answers

Related Manuals for BDI LINQ 6821

Summary of Contents for BDI LINQ 6821

  • Page 1 LINQ 6821 ™ DESK INSTRUCTION MANUAL LET’S GET STARTED. DESIGN MATTHEW WEATHERLY...
  • Page 2 Congratulations on the purchase of your LINQ d esk from BDI. Your d esk has been d esigned to provid e a lifetime of enjoyment. This manual will provid e assembly instructions and other helpful information to ensure you get the most out of your product.
  • Page 3 Unpack and id entify the parts listed below. The assembly workspace should be a non-marring surface, such as carpet. For missing hard ware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. For all other concerns, please contact your BDI retailer.
  • Page 4 QTY: 2 Power Strip (C5) QTY: 1 Standoff (C6) QTY: 4 Left Cabinet (C7) QTY: 1 Right Cabinet (C8) QTY: 1 Leg Plate (C9) QTY: 4 Leg (C10) QTY: 2 Top Panel (C11) QTY: 1 4 | BDIUSA.COM LINQ 6821...
  • Page 5 HARDWARE AND COMPONENTS HARDWARE AND COMPONENTS Keyboard Drawer (C12) QTY: 1 Inner Modesty Panel (C13) QTY: 1 Drawer Pull (C14) QTY: 4 Grommet Lid (C15) QTY: 1 Drawer Tray (C16) QTY: 1 File Clip (C17) QTY: 4 File Hanging Bar (C18) QTY: 2 NEED ASSISTANCE? customerservice@bdiusa.com | 5...
  • Page 6 Tighten Trough Screws (H1) with Hex Wrench SCREW – H1 (T1). Attach the Power Strip (C5) using 4 Wood Screws (H2). Tighten with Phillips Screwdriver (not included). SCREW – H2 Packed with Power Strip) 6 | BDIUSA.COM LINQ 6821...
  • Page 7 STEP 2. PREPARE CABINETS ASSEMBLY Partially thread 4 Screws (H1) into the lower threaded inserts in each set of 3 threaded SCREW – H1 inserts of both the Left Cabinet and Right Cabinet (C7 and C8). Leave about 1/4" (6mm) gap between the screw head and the cabinet.
  • Page 8 Modesty Panel Assembly by hooking the slotted holes of each Wire Trough onto the pre- SCREW – H1 threaded Screws (H1). Insert 8 Screws (H1) to fully secure each Wire Trough. Fully tighten all screws with the Hex Wrench (T1). 8 | BDIUSA.COM LINQ 6821...
  • Page 9 STEP 4. PREPARE LEGS ASSEMBLY Attach the 4 Leg Plates (C9) to the 2 Legs (C10) using 8 Screws (H3). Tighten with Hex Wrench (T1). HEX WRENCH – T1 SCREW – H3 STEP 5. ATTACH LEGS TO CABINETS ASSEMBLY With the help of another person, carefully rotate the desk assembly onto its back.
  • Page 10 Wire Grommet is closer to the Desk Assembly. SCREW – H5 Attach the Keyboard Drawer (C12) to the Top Panel (C11) with 4 Screws (H5). Tighten with Hex Wrench (T1). The Keyboard Drawer should be facing away from the desk. 10 | BDIUSA.COM LINQ 6821...
  • Page 11 STEP 7. ATTACH TOP PANEL TO CABINET ASSEMBLY With the help of another person, carefully lift the Top Panel (C11) and hook the Connection HEX WRENCH – T1 Plates onto the Standoffs (C6). Ensure each Standoff is properly seated in each Connection Plate.
  • Page 12 Open each drawer and PHILLIPS SCREWDRIVER install the 4 Drawer Pulls (C14) using 8 Screws (H6). Tighten with Phillips Screwdriver (not included). SCREW – H6 Place the Grommet Lid (C15) in the Grommet Hole. 12 | BDIUSA.COM LINQ 6821...
  • Page 13 STEP 9. INSTALL MODESTY PANEL ASSEMBLY After arranging any wires to your liking, install the Inner Modesty Panel (C13). STEP 9. INSTALL MODESTY PANEL ASSEMBLY Press the File Clips (C18) onto the ends of the File Hanging Bars (C17). Place the Drawer Tray (C16) and File Hanging Bars in the drawers where desired.

  • Page 14: Fine Tuning

    If your cabinet is on carpeting, check your front to back level after loading the cabinet and opening the heaviest drawers. This will ensure the cabinet remains level during operation and reduce the risk of tip-over. Dial down 14 | BDIUSA.COM LINQ 6821...

  • Page 15: Care And Maintenance

    While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please avoid positioning your BDI cabinet in any area with ample direct sunlight.

  • Page 16: Warranty

    Select chairs carry coverage for five (5) years from the date of the product delivery, based on an 8-hour daily use pattern. BDI reserves the right to refine or update its warranty from time to time. See the complete and latest warranty document at www.bdiusa.com/warranty.
